216 Oil Pans found

View related parts

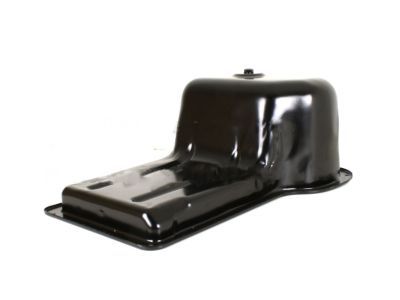

Ford Engine Oil Pan Assembly
Part Number: BC3Z-6695-B
$60.98 MSRP: $79.50
You Save: $18.52 (24%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Engine Oil; Lower Oil Pan, Oil Pan
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Replaces: BC3Z-6695-C, BC3Z-6695-A
Fits the following Ford Models:
- F-250 Super Duty | 2011-2025 | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 6.7L Diesel T/C, 8 Cyl 6.8 L FLEX, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 2011-2025 | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 6.7L Diesel T/C, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 2011-2019 | 8 Cyl 6.7L Diesel T/C | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 2011-2019 | 8 Cyl 6.7L Diesel T/C | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts

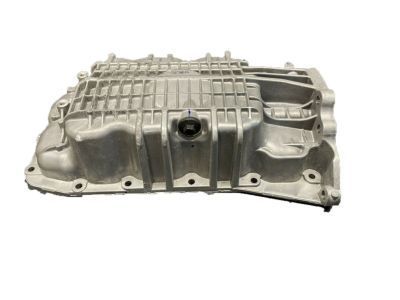

Ford Engine Oil Pan Assembly
Part Number: ML3Z-6675-D
$147.32 MSRP: $191.67
You Save: $44.35 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: PAN ASY - ENGINE OIL; Oil Pan
- Replaces: BR3Z-6675-RA, BR3Z-6675-P, BR3Z-6675-B, BR3Z-6675-Q, BR3Z-6675-RB, ML3Z-6675-B, ML3Z-6675-A
Fits the following Ford Models:
- Expedition | 2015-2025 | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 4AT 4R75W, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-150 | 2011-2025 | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA, 8 Cyl 5.0 L FLEX, 8 Cyl 5.2 L GAS | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Mustang | 2011-2019 | 6 Cyl 3.7L PFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), 6-Speed Manual Transmission (T56), 6-Speed Manual Transmission-3160, 6-Speed Manual Transmission-MT82, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Transit | 2015-2025 | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS, 6 Cyl 3.7 L LPG, 6 Cyl 3.7L PFI NA | 6-Speed Automatic Transmission (6R80)
View More
View related parts

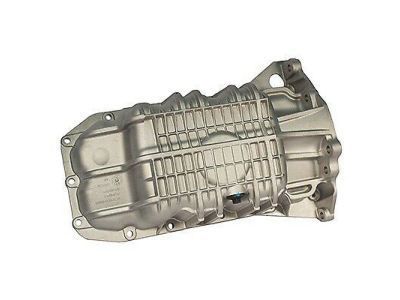

Ford Engine Oil Pan Assembly
Part Number: XL3Z-6675-AA
$74.87 MSRP: $102.30
You Save: $27.43 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: Incl. 6730 plug
- Replaces: F8AZ-6675-AA
Fits the following Ford Models:
- Crown Victoria | 1998-2002 | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Ford Engine Oil Pan Assembly
Part Number: AL3Z-6675-B
$122.95 MSRP: $181.67
You Save: $58.72 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Replaces: AL3Z-6675-A
Fits the following Ford Models:
- E-150 | 2017-2019 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- E-250 | 2017-2019 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- E-350/E-350 Super Duty | 2017-2019 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- E-450 Super Duty | 2017-2019 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- F-150 | 2010-2014 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-250 Super Duty | 2011-2022 | 8 Cyl 6.2L OHC NA, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 2011-2022 | 8 Cyl 6.2L OHC NA, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 2011-2019 | 8 Cyl 6.2L OHC NA | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 2011-2019 | 8 Cyl 6.2L OHC NA | 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts
Ford Engine Oil Pan Assembly

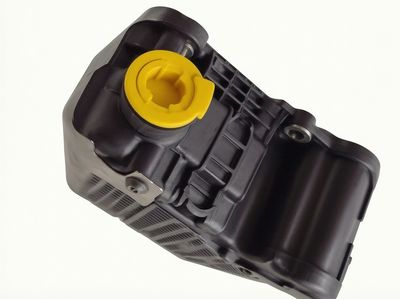

Part Number: KT4Z-6675-F
$126.74 MSRP: $198.33
You Save: $71.59 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: PAN ASY - ENGINE OIL; Oil Pan
- Replaces: KT4Z-6675-D, KT4Z-6675-E, KT4Z-6675-B, KT4Z-6675-A, KT4Z-6675-C
Fits the following Ford Models:
- Edge | 2019-2024 | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Engine Oil Pan Assembly
Part Number: 3L3Z-6675-CA
$89.15 MSRP: $130.33
You Save: $41.18 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Replaces: XL3Z-6675-DA
Fits the following Ford Models:
- E-150 | 1998-2003 | 6 Cyl 4.2L | 4AT 4R100, 4AT 4R70W, 4AT E4OD
- E-250 | 1998-2003 | 6 Cyl 4.2L | 4AT 4R100, 4AT 4R70W, 4AT E4OD
- F-150 | 1999-2008 | 6 Cyl 4.2L, 6 Cyl 4.2L OHV EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 4AT, 4AT 4R100, 4AT 4R70W, 5-Speed Manual Transmission - Mazda M5R2-C, 5MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: F81Z-6675-AA
$89.16 MSRP: $130.35
You Save: $41.19 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
Fits the following Ford Models:
- Excursion | 2000-2005 | 8 Cyl 5.4L | 4AT 4R100, 5AT
- F-250 Super Duty | 2008-2010, 1999-2004 | 8 Cyl 5.4L | 4AT 4R100, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 5AT, 5MT, 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, 6MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 2008-2010, 1999-2004 | 8 Cyl 5.4L | 4AT 4R100, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 5AT, 5MT, 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, 6MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 2008-2010 | 8 Cyl 5.4L | 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 2008-2010 | 8 Cyl 5.4L | 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: F4TZ-6675-AAA
$331.09 MSRP: $488.33
You Save: $157.24 (33%)
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Replaces: F5TZ-6675-A
Fits the following Ford Models:
- E-350/E-350 Super Duty | 1995-1996 | 8 Cyl 7.3L Diesel Turbocharged | 3AT C6, 4AT E4OD
- F Super Duty | 1994-1996 | 8 Cyl 7.3L Diesel Turbocharged | 4AT 4R100, 5AT, 5MT, 6MT
- F-250 | 1994-1996 | 8 Cyl 7.3L | 3AT C6, 4AT E4OD, 4MT, 5MT
- F-350 | 1994-1996 | 8 Cyl 7.3L | 3AT C6, 4AT E4OD, 5MT
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: 7T4Z-6675-A
$137.94 MSRP: $201.67
You Save: $63.73 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
Fits the following Ford Models:
- Edge | 2007-2010 | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Flex | 2009-2012 | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Fusion | 2007-2012 | 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Taurus | 2008-2012 | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, CVT Select Shift Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Taurus X | 2008-2009 | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: BR3Z-6675-P
$147.32 MSRP: $191.67
You Save: $44.35 (24%)
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Replaced by: ML3Z-6675-D
Fits the following Ford Models:
- Expedition | 2015-2017 | 6 Cyl 3.5L GTDI | 4AT 4R75W, 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-150 | 2013-2017 | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Mustang | 2015-2019 | 6 Cyl 3.7L PFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), 6-Speed Manual Transmission-3160, 6-Speed Manual Transmission-MT82, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Transit | 2015-2017 | 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA | 6-Speed Automatic Transmission (6R80)
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: CP9Z-6675-A
$117.04 MSRP: $180.95
You Save: $63.91 (36%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Replaced by: CM5Z-6675-D
Fits the following Ford Models:
- C-Max | 2013-2018 | 4 Cyl 2.0L Duratec Hybrid (130kW) | ECVT Auto Trans Power Split, Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Focus | 2012-2018 | 4 Cyl 2.0L DI TIVCT Petrol | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Fusion | 2013-2019 | 4 Cyl 2.0L Duratec Hybrid (130kW) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: CJ5Z-6675-D
$187.88 MSRP: $278.33
You Save: $90.45 (33%)
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Engine Oil; Oil Pan
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Replaced by: CJ5Z-6675-G
Fits the following Ford Models:
- Focus | 2016-2017 | 4 Cyl 2.3L Ecoboost | 1-Speed Transmission, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- Transit Connect | 2016-2019 | 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, 8-Speed Automatic Transmission 8F35, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Engine Oil Pan Assembly
Part Number: ML3Z-6675-J
$139.08 MSRP: $203.33
You Save: $64.25 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: PAN ASY - ENGINE OIL; Oil Pan
- Replaces: JT4Z-6675-E, JT4Z-6675-C, JT4Z-6675-B, JT4Z-6675-D, ML3Z-6675-H
Fits the following Ford Models:
- F-150 | 2020-2024 | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX
View related parts
Ford Engine Oil Pan Assembly
Part Number: CJ5Z-6675-G
$187.88 MSRP: $278.33
You Save: $90.45 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: PAN Assembly - ENGINE OIL; Oil Pan
- Replaces: CJ5Z-6675-D, BB5Z-6675-A, CJ5Z-6675-B, CJ5Z-6675-A
Fits the following Ford Models:
- Edge | 2012-2018 | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- Escape | 2013-2025 | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.0L, 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Explorer | 2012-2015 | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Focus | 2013-2018 | 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.3L Ecoboost | 1-Speed Transmission, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- Fusion | 2013-2020 | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Maverick | 2022-2025 | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
- Taurus | 2013-2019 | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Transit Connect | 2014-2022 | 4 Cyl 2.0 L FLEX, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L CNG, 4 Cyl 2.5 L GAS, 4 Cyl 2.5 L LPG, 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, 8-Speed Automatic Transmission 8F35, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: LC3Z-6675-E
$169.86 MSRP: $248.33
You Save: $78.47 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: PAN ASY - ENGINE OIL; Oil Pan
- Replaces: LC3Z-6675-C, LC3Z-6675-B, LC3Z-6675-D
Fits the following Ford Models:
- E-350/E-350 Super Duty | 2021-2025 | 8 Cyl 7.3 L GAS
- F-250 Super Duty | 2020-2025 | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L FLEX, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
- F-350 Super Duty | 2020-2025 | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: CM5Z-6675-D
$115.63 MSRP: $180.95
You Save: $65.32 (37%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: PAN ASY - ENGINE OIL; Oil Pan
- Replaces: CM5Z-6675-B, CP9Z-6675-A
Fits the following Ford Models:
- C-Max | 2013-2018 | 4 Cyl 2.0L Duratec Hybrid (130kW) | ECVT Auto Trans Power Split, Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- EcoSport | 2018-2022 | 3 Cyl 1.0 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.0L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F15, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Focus | 2012-2018 | 4 Cyl 2.0L DI TIVCT Petrol | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Fusion | 2013-2020 | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Police Responder Hybrid | 2019-2020 | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
- SSV Plug-In Hybrid | 2019-2020 | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Ford Engine Oil Pan Assembly
Part Number: F81Z-6675-DA
$105.71 MSRP: $154.55
You Save: $48.84 (32%)
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: PAN, ASY ENG OIL
Fits the following Ford Models:
- Excursion | 2000-2005 | 10 Cyl 6.8L | 4AT 4R100, 5AT
- F-250 Super Duty | 1999-2019 | 10 Cyl 6.8L, 10 Cyl 6.8L EFI | 4AT 4R100, 5AT, 5MT, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6MT, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 1999-2019 | 10 Cyl 6.8L, 10 Cyl 6.8L EFI | 4AT 4R100, 5AT, 5MT, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6MT, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 1999-2019 | 10 Cyl 6.8L, 10 Cyl 6.8L EFI | 4AT 4R100, 5AT, 5MT, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6MT, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 1999-2019 | 10 Cyl 6.8L, 10 Cyl 6.8L EFI | 4AT 4R100, 5AT, 5MT, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6MT, 6-Speed Automatic Transmission (6R100), 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts

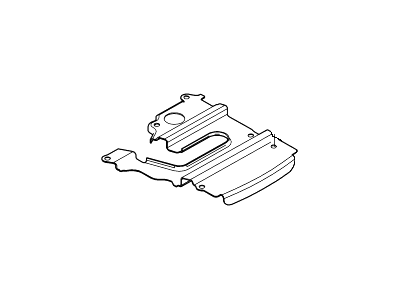

Ford STIFFENER
Part Number: JL3Z-6K040-B
$304.59 MSRP: $476.67
You Save: $172.08 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan
- Replaces: JL3Z-6K040-A, JL3Z-6K040-C
Fits the following Ford Models:
- F-150 | 2018-2021 | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.0L 4V DOHC TC DSL-LION B, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Bulkhead Assembly - Front
Part Number: 1L5Z-6675-DA
$83.84 MSRP: $129.62
You Save: $45.78 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan
- Manufacturer Note: Upper cast pan w/hole for oil sensor
- Position: Front
- Replaces: F77Z-6675-AC
Fits the following Ford Models:
- Explorer | 1997-2001 | 6 Cyl 4.0L | 4AT 4R70W, 5AT 5R55E, 5MT
View related parts
Ford Engine Oil Pan Assembly
Part Number: F8UZ-6675-AA
$97.81 MSRP: $143.00
You Save: $45.19 (32%)
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Replaces: F7UZ-6675-BF
Fits the following Ford Models:
- E-150 | 2005-2019 | 10 Cyl 6.8L SOHC EFI NA | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- E-250 | 2005-2019 | 10 Cyl 6.8L SOHC EFI NA | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- E-350/E-350 Super Duty | 1997-2019 | 10 Cyl 6.8L, 10 Cyl 6.8L SOHC EFI NA | 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5AT, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- E-450 Super Duty | 2002-2019 | 10 Cyl 6.8L, 10 Cyl 6.8L SOHC EFI NA | 4AT 4R100, 4AT 4R70W, 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140)
- Econoline Super Duty(1996-1999) | 1997-1999 | 10 Cyl 6.8L | 4AT 4R100, 4AT 4R70W, 4AT E4OD
- F53 | 1999-2003 | 10 Cyl 6.8L | 4AT 4R100
- F53 Stripped Chassis | 2011-2019, 2004-2009 | 10 Cyl 6.8L EFI, 10 Cyl 6.8L SOHC EFI NA | 5-Speed Automatic Transmission 5R110W NAAO, 6-Speed Automatic Transmission (6R140), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More

| Page 1 of 11 |Next >

1-20 of 216 Results

Ford Oil Pan Parts Questions & Experts Answers

Engine Oil Pan Assembly
E7UZ-6675-A
Q: How to remove and install an oil pan in V6 engine on Ford Bronco?
A:
Loosen the nut of the cable connected to the negative terminal of the battery, and thereafter, remove the air cleaner assembly. After that it will be necessary to remove bolts connecting the fan shroud and the radiator, then place the shroud over the fan. Taking out the engine oil dipstick and then finding a safe and secure way to lift the vehicle so that it will be comfortable to work on it by placing jack stands. Move on to the struts and take off the oil filter while also taking off the exhaust pipes from the exhausts manifolds. The exhaust pipe clamped on the catalytic converter pipe should be unbolted and the inlet pipe taken out of the vehicle. In the process, if applicable, remove the transmission cooler lines from the radiator. Loosen the nuts that hold the engine mounts to the chassis brackets and then use a jack put a wooden block on the jack pad to lift the engine, when setting down, place the wooden blocks between the engine mounts and the chassis brackets and remove the jack. Lose the oil pan attaching bolts and lower the oil pan; the oil pick-up tube assembly should be unbolted and remain in the pan prior to the removal of the pan from the vehicle. Oil pan, sealing surfaces,-clean and check for damage and distortion as required, repair. To ensure the correct fitment of the pan to the cylinder block, Trial fit the pan to the cylinder block and if there is any excess material which has to be scraped off to create some sort of a clearance for installation, then do it on this side of the sealant. Move the oil pan down to sit on the frame cross-member and install the oil pick-up tube assembly complete with new gasket at this time the support bracket has to go on the stud of the no. 2 main bearing cap attaching bolt. Torque pick-up tube assembly nuts and bolts to the required measure. Fix a new rear pan seal in the groove of the rear main cap and this requires the use of a small screwdriver. Place RTV an 1/8 inch thick along the juncture of the timing cover and the cylinder block at both ends of the rear seal, and along the cylinder block oil pan rails, but use 1/4 inch thickness where it makes contact with the timing cover. Place the oil pan at the lower part of the engine and screw in the bolts to a specified torque value. Lastly, lift the engine and get rid of the wood blocks, all the remaining process of installation are the reversing process of that of removal.
Engine Oil Pan Assembly
BR3Z-6675-A
Q: How to remove and install an oil pan in 4.2L V6 engine on Ford F-150?
A:
Disconnect the cable from the negative battery terminal, remove the oil dipstick, drain the engine oil, and remove the oil filter. Raise the vehicle and secure it on jackstands, then remove the crossmember bolts and the crossmember. Take out the engine mount through-bolts and raise the engine about two inches with an engine hoist properly attached to the lifting brackets, avoiding the use of a jack under the oil pan to prevent damage. Remove the oil pan-to-transmission bolts and the oil pan-to-engine bolts, then take off the oil pan, breaking the seal if necessary with a thin putty knife while ensuring not to gouge the sealing edge. Empty any residual oil from the pan and clean it with solvent. For installation, use a gasket scraper or putty knife to remove old gasket material and sealant from the pan and engine block, clean the mating surfaces, and use gasket adhesive to hold the rear rubber seal in place. Stick the side gaskets on the engine block with adhesive and apply RTV sealant at the corners where the side gaskets meet the end seals. Create alignment dowels from two long bolts, apply a bead of sealant on the block and front cover, and ensure the oil pan is installed within 15 minutes to prevent the sealant from hardening. Position the pan against the engine block, install the bolts finger tight, and then tighten them in the correct sequence, replacing the alignment studs with pan bolts. Complete the remaining steps in reverse order, remembering to add engine oil and install a new oil filler. Start the engine and check for oil leaks at the oil pan, then drive the vehicle and check again.
Frame Assembly
1L5Z-6675-AA
Q: How to remove and install the oil pan in SOHC four cylinder engine on Ford Ranger?
A:
In hopes of taking out the oil pan, it is necessary to lift the engine of the car. Start by wiping out the oil and also taking out the oil filer. Next, also, you should disengage the engine and place it upon an appropriate engine stand, with the right side up. Then remove the oil pan mounting bolts ,then drop the pan. Installation begins with cleaning of the oil pan and assessing wether or not the has been any damage and the removal of spacers from the mounting pad transmission. Cleaning the gasket surfaces on the cylinder block and oil pan flange will prevent oil leaks and one should clean also the oil pump pick-up tube screen. Apply RTV sealant at six points: at the joints of the front cover and engine block and rear main bearing cap and engine block, then fit the gasket into the oil pan channel. Position the oil pan on the engine and loosely fasten the mounting bolts so that when gaging the engine and the transmission to form an accurate alignment, the final torque adjustments will be done. Place back the engine and finally fasten the two oil pan to transmission bolts to the right torque then loosening them a half turn. After that, use a wrench to further tighten the oil pan to the engine block bolts to the required torque upsetting each bolt in succession around the periphery of the pan. Tighten the oil pan to transmission bolts to the required torque. Last, perform the reversal procedure of the installation and add the required amount and type of oil into the engine.
