How to remove and install the oil pan in V8 engine on Ford Expedition?

Disconnect the negative battery cable from the battery, then remove the air cleaner assembly. Drain the engine oil and remove the oil filter, followed by the engine cooling fan assembly and shroud. For 4WD models, remove the front axle assembly. On models through 2003, attach an engine support fixture to the engine lifting eyes adjacent to the exhaust manifolds, and raise the vehicle securely on jackstands. Remove the oil level dipstick, then raise the engine slightly with the support fixture and remove the engine mount through-bolts. Continue to raise the engine gradually, ensuring no interference with engine compartment components, and when raised about two inches, place short lengths of 2x4 lumber between the motor mounts and the crossmember for safety. On 2005 and later Expedition/Navigator models, remove the four bolts/nuts and take out the front crossmember for clearance to remove the oil pan. Remove the oil pan mounting bolts and lower the pan to the frame cross member, then carefully separate the oil pan from the engine block using a large rubber mallet or a wood block and a hammer to avoid damaging the sealing surfaces. The oil pan gasket is reusable if care is taken during removal. Use a gasket scraper or putty knife to remove all traces of old gasket material and sealant from the pan and engine block, being careful not to gouge the surfaces. Clean the mating surfaces with lacquer thinner or acetone, ensuring the bolt holes in the engine block are clean. Apply a bead of RTV sealant to the four corner seams where the rear seal retainer meets the engine block and the front cover meets the engine block. Carefully position the oil pan against the engine block and install the bolts finger tight, ensuring the gaskets haven't shifted, then tighten the bolts to the specified torque, starting at the center of the oil pan and working outward in a spiral pattern. The remaining steps are the reverse of removal, and remember to refill the engine with oil before starting it. Finally, start the engine and check carefully for oil leaks at the oil pan, driving the vehicle and checking again.

Genuine Ford Expedition Oil Pan

Oil Drain Pan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Oil Pans found

View related parts

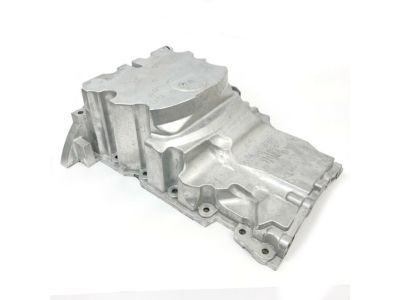

Ford Expedition Pan Assembly - Engine Oil
Part Number: HL3Z-6675-A
$99.32 MSRP: $145.20
You Save: $45.88 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: Gasket Is RTV. Refer To Workshop Manual For Proper Specs
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018 Ford Expedition | 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

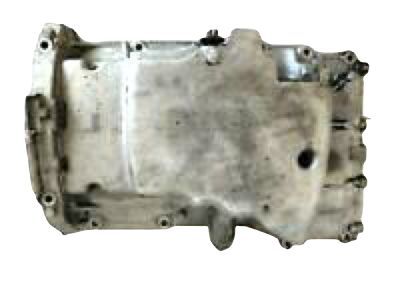

Ford Expedition Pan Assembly - Engine Oil
Part Number: 9L3Z-6675-A
$91.51 MSRP: $133.78
You Save: $42.27 (32%)
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Ford Expedition | 8 Cyl 5.4L | 4AT 4R75W, 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Expedition Pan Assembly - Engine Oil
Part Number: BR3Z-6675-P
$137.20 MSRP: $178.50
You Save: $41.30 (24%)
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Replaced by: ML3Z-6675-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Ford Expedition | 6 Cyl 3.5L GTDI | 4AT 4R75W, 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Expedition Engine Oil Pan Assembly
Part Number: BR3Z-6675-RB
$122.09 MSRP: $178.50
You Save: $56.41 (32%)
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Engine Oil
- Replaced by: ML3Z-6675-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2019 Ford Expedition | 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

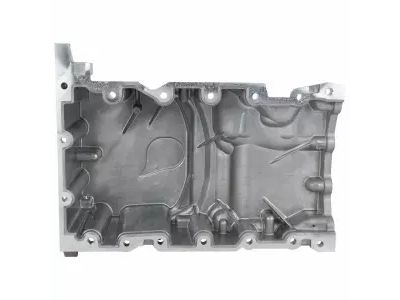

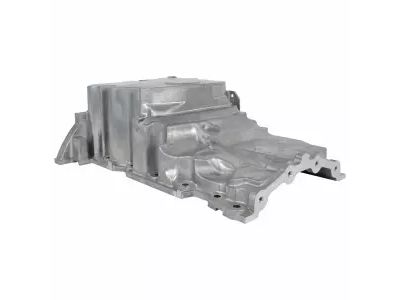

Ford Expedition PAN ASY - ENGINE OIL
Part Number: ML3Z-6675-D
$137.20 MSRP: $178.50
You Save: $41.30 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Expedition | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 4AT 4R75W, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

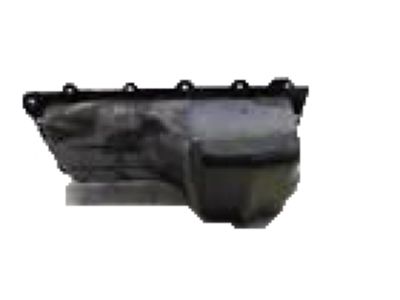

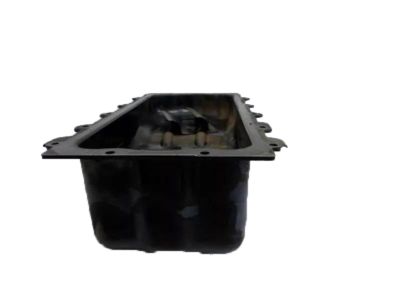

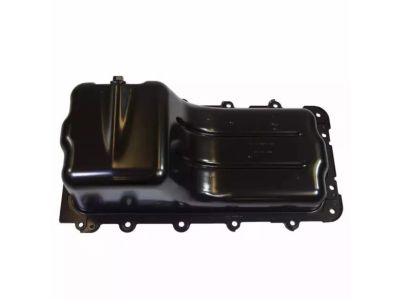

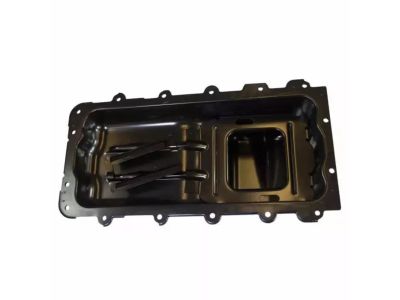

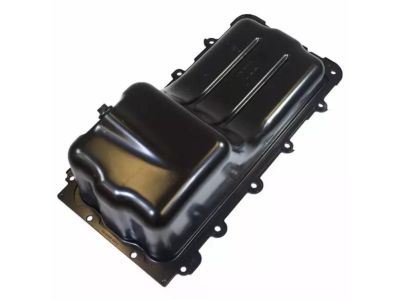

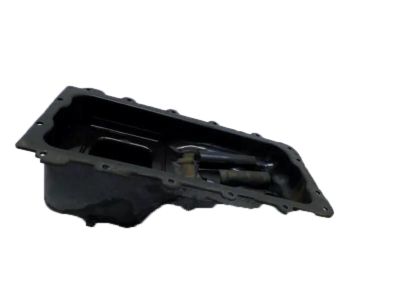

Ford Expedition Pan Assembly - Engine Oil
Part Number: XL1Z-6675-CA
$148.79 MSRP: $206.69
You Save: $57.90 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Replaces: F65Z-6675-HA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2002 Ford Expedition | 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 4AT E4OD
View related parts
Ford Expedition Pan Assembly - Engine Oil
Part Number: 3L3Z-6675-BA
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: With Oil Temp Sensor Provision
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Expedition | 8 Cyl 5.4L | 4AT 4R75W, 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Expedition Pan Assembly - Engine Oil
Part Number: 2L1Z-6675-BA
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: Less oil temp sensor provision
- Replaces: 2L1Z-6675-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2008 Ford Expedition | 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 4AT 4R75W, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- 2002-2004 Ford Expedition | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L, 8 Cyl 5.4L Modular SOHC | 4-Speed Automatic Transmission 4R70W (AODE), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Expedition Pan Assembly - Engine Oil
Part Number: F65Z-6675-HA
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Manufacturer Note: Natural Gas Vehicle
- Replaced by: XL1Z-6675-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1998 Ford Expedition | 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 4AT E4OD
View related parts
Ford Expedition Pan Assembly - Engine Oil
Part Number: 2L1Z-6675-AA
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Replaced by: 2L1Z-6675-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002 Ford Expedition | 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W

Ford Expedition Oil Pan

The Oil Pan in Ford Expedition automobile is mainly used for storing the engine oil in order to maintain appropriate temperatures and grease of the other parts of the engine. The Wet Sump model, incorporated under the Oil Pan, functions to draw oil up through a pickup tube by an oil pump and it then circulates this throughout the engine before returning it to the pan. It is critical to ensuring that the engine is performing at its premier and various factors must be put into consideration for this design. Up to the previous models, the Ford Expedition Oil Pans were mostly produced using stamped steel while in the current models, cast aluminum is used. This evolution in the materials is really helpful in making the end product durable and at the same time efficient. However, there is disparity in the design of the Oil Pan from one Expedition model to another, this could be occasioned by the nature of the engine or performance properties to ensure that the former caters for the latter appropriately.

We provide a wide range of Ford Expedition Oil Pan at the best prices possible. If you need Ford Expedition Oil Pan, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Expedition Oil Pan Parts Questions & Experts Answers

Pan Assembly - Engine Oil
9L3Z-6675-A
Q: How to remove and install the oil pan in V8 engine on Ford Expedition?
A:
Disconnect the negative battery cable from the battery, then remove the air cleaner assembly. Drain the engine oil and remove the oil filter, followed by the engine cooling fan assembly and shroud. For 4WD models, remove the front axle assembly. On models through 2003, attach an engine support fixture to the engine lifting eyes adjacent to the Exhaust Manifolds, and raise the vehicle securely on jackstands. Remove the oil level dipstick, then raise the engine slightly with the support fixture and remove the engine mount through-bolts. Continue to raise the engine gradually, ensuring no interference with engine compartment components, and when raised about two inches, place short lengths of 2x4 lumber between the motor mounts and the crossmember for safety. On 2005 and later Expedition/Navigator models, remove the four bolts/nuts and take out the front crossmember for clearance to remove the oil pan. Remove the oil pan mounting bolts and lower the pan to the frame cross member, then carefully separate the oil pan from the engine block using a large rubber mallet or a wood block and a hammer to avoid damaging the sealing surfaces. The oil pan gasket is reusable if care is taken during removal. Use a gasket scraper or putty knife to remove all traces of old gasket material and sealant from the pan and engine block, being careful not to gouge the surfaces. Clean the mating surfaces with lacquer thinner or acetone, ensuring the bolt holes in the engine block are clean. Apply a bead of RTV sealant to the four corner seams where the rear seal retainer meets the engine block and the front cover meets the engine block. Carefully position the oil pan against the engine block and install the bolts finger tight, ensuring the gaskets haven't shifted, then tighten the bolts to the specified torque, starting at the center of the oil pan and working outward in a spiral pattern. The remaining steps are the reverse of removal, and remember to refill the engine with oil before starting it. Finally, start the engine and check carefully for oil leaks at the oil pan, driving the vehicle and checking again.
