How to remove the front transfer case seal for the output shaft on a Ford Bronco?

To remove the oil seal, start by raising the vehicle and supporting it securely on jackstands. If the filler plug is higher than the lowest part of the seal, drain the transaxle to prevent fluid loss. Mark the front driveshaft to transfer case yoke orientation, remove the driveshaft, and swing it out of the way. Hold the yoke with a suitable tool and remove the yoke retaining nut. Remove the front output shaft yoke nut, washer, and rubber seal if applicable. Take out the yoke and slinger from the transfer case output shaft. Remove the seal using a slide-hammer and adapter or by carefully prying it out with a blunt screwdriver. Inspect the oil seal contact surface on the case for any damage and clean it. To replace the seal, apply multi-purpose grease and position it squarely into the case bore with the markings facing outwards. Drive the seal into the bore using an appropriately sized seal driver or equivalent tool. Clean and lightly lubricate the yoke splines, then slip the slinger and yoke over the output shaft and past the new seal until it bottoms. Coat the face of the yoke retaining nut with RTV sealant and apply thread locking compound to the threads. Install the rubber seal, washer, and yoke retaining nut onto the output shaft, tightening it to the specified torque. Install the front driveshaft, refill the transfer case lubricant, and lower the vehicle. If necessary, shift out of 4WD mode before returning the vehicle to normal service.

How to replace the rear transfer case seal on Ford F-150?

Raise the vehicle and support it securely on jackstands. Remove the rear driveshaft. Pry out the seal with a screwdriver or a seal removal tool, taking care not to damage the seal bore. Lubricate the new seal lips with petroleum jelly or multi-purpose grease. Drive the seal into place using a seal driver or large socket, ensuring the outside diameter of the socket is slightly smaller than the outside diameter of the seal. The remainder of the installation follows the reverse order of removal.

How to replace the Transfer Case Seal in the extension housing on 2WD Ford Ranger?

Raise the vehicle and support it securely on jackstands. Remove the driveshaft, noting that some transmission lubricant may drain out when the driveshaft slip joint is withdrawn from the extension housing. To remove the oil seal from the end of the extension housing, use a special tool available at most auto parts stores, or if access allows, use a thin blade screwdriver or chisel to pry the oil seal out. Inspect the sealing surface on the driveshaft slip joint for scoring or burrs that may damage the new oil seal, and replace the yoke if it is damaged. Check the extension housing counterbore for burrs and remove them with emery cloth or medium grit wet-and-dry sandpaper, then clean any sanding residue with a cloth dipped in solvent. Apply silicone sealant to the inside diameter of the oil seal and grease to the end of the rubber boot portion. Using a seal driver, large socket, or section of pipe, install a new oil seal, ensuring it is completely seated in the counterbore. Finally, install the driveshaft, lower the vehicle, and check the transmission lubricant level, topping up if necessary.

Genuine Ford Transfer Case Seal

Transfer Case Output Shaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

154 Transfer Case Seals found

View related parts

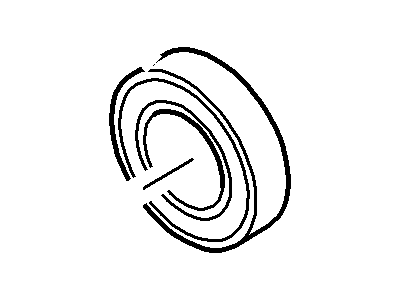

Ford Drive Unit Outer Seal
Part Number: JM5Z-1S177-A
$15.83 MSRP: $25.82
You Save: $9.99 (39%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal
Fits the following Ford Models:
- Edge | 2019 | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS) , 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- F-150 Lightning | 2022-2025 | BATTERY EV (EV/BEV)
- Transit Connect | 2018-2019 | 4 Cyl 1.5L Duratorq-TDCi (120PS) - Neo, 4 Cyl 2.0L Duratec DI TIVCT (154PS) | 8-Speed Automatic Transmission 8F35, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts

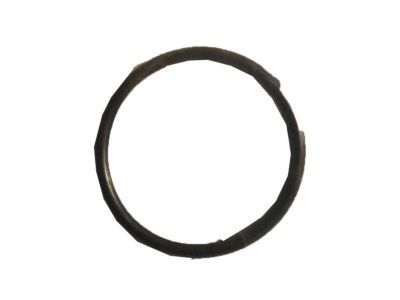

Ford Axle Seals
Part Number: 4C3Z-1S177-D
$28.58 MSRP: $46.60
You Save: $18.02 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal; Axle Seals, Inner Seal, Rear Hub Seal
- Replaces: 4C3Z-1S177-B, 4C3Z-1S177-C, BRS-191, BRS-192
Fits the following Ford Models:
- F-250 Super Duty | 2023-2025 | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L FLEX, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
- F-350 Super Duty | 2023-2025 | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
- Transit | 2015-2025 | 5 Cyl 3.2 L DIESEL, 5 Cyl 3.2L Duratorq-TDCi - Puma, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS, 6 Cyl 3.7 L LPG, 6 Cyl 3.7L PFI NA | 6-Speed Automatic Transmission (6R80)
View More
View related parts

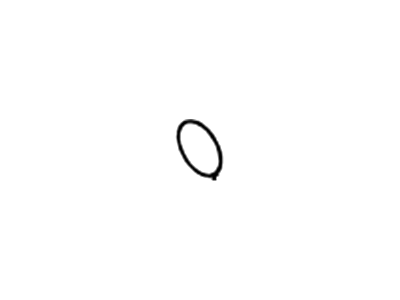

Ford Seal
Part Number: BB5Z-1S177-C
$11.48 MSRP: $18.61
You Save: $7.13 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Wheel Seal
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Replaces: BB5Z-1S177-A, BRS-171
Fits the following Ford Models:
- C-Max | 2013-2018 | 4 Cyl 2.0L Duratec Hybrid (130kW) | ECVT Auto Trans Power Split, Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Edge | 2012-2019 | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Escape | 2013-2019 | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Explorer | 2012-2019 | 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Fusion | 2013-2019 | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Taurus | 2013-2019 | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Transit Connect | 2014-2019 | 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts

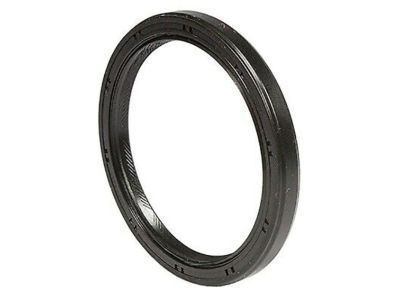

Ford Oil Seal Assembly
Part Number: CV6Z-1S177-A
$7.12 MSRP: $11.62
You Save: $4.50 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil
- Position: Passenger Side/Driver Side
- Replaces: BRS-46, F5RZ-1177-AA, F5RZ-1S177-AA
Fits the following Ford Models:
- Contour | 1995-2000 | 4 Cyl 2.0L, 6 Cyl 2.5L | 4AT CD4E, 5MT
- Fiesta | 2014-2019 | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 1.6L GTDI Sigma, 4 Cyl 1.6L TIVCT PFI Sigma | 5-Speed Manual Transmission - B5/IB5, 6-Speed Manual Transmission - B6
- Focus | 2000-2018 | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L Duratec HE, 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.0L Zetec VVT, 4 Cyl 2.3L, 4 Cyl 2.3L Ecoboost, Electric Motor | 4AT 4F27E, 5-Speed Manual Transmission - MTX75, 5MT, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, 6MT, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- Fusion | 2014 | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Manual Transmission - B6, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts

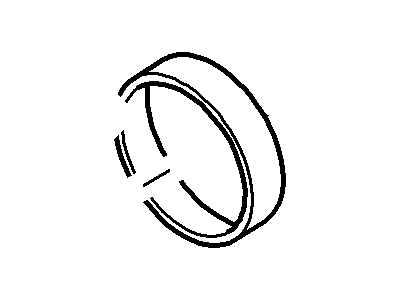

Ford Seal
Part Number: AE8Z-1S177-A
$32.56 MSRP: $51.12
You Save: $18.56 (37%)
ADD TO CART
Product Specifications
- Other Name: Wheel Seal - Rear (AT)
- Manufacturer Note: Driveshaft Seal
Fits the following Ford Models:
- Fiesta | 2011-2019 | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 1.6L GTDI Sigma, 4 Cyl 1.6L TIVCT PFI Sigma | 6-Speed Automatic Transmission GFT DPS6
- Focus | 2012-2018 | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , Electric Motor | 6-Speed Automatic Transmission DPS6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

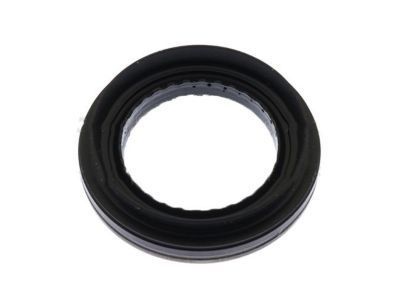

Ford Output Shaft Oil Seal
Part Number: 7C3Z-7B215-A
$38.43 MSRP: $50.00
You Save: $11.57 (24%)
ADD TO CART
Product Specifications
- Other Name: Seal - Output Shaft Oil
- Manufacturer Note: Slip Spline Output
- Replaces: DC3Z-7B215-A
Fits the following Ford Models:
- F-250 Super Duty | 2011-2016, 2008 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA, 8 Cyl 6.4L Diesel Twin Turbo, 8 Cyl 6.7L Diesel T/C | 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 2011-2016, 2008 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA, 8 Cyl 6.4L Diesel Twin Turbo, 8 Cyl 6.7L Diesel T/C | 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 2011-2016, 2008 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA, 8 Cyl 6.4L Diesel Twin Turbo, 8 Cyl 6.7L Diesel T/C | 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 2011-2016, 2008 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA, 8 Cyl 6.4L Diesel Twin Turbo, 8 Cyl 6.7L Diesel T/C | 5-Speed Automatic Transmission 5R110W - HI/Torque, 5-Speed Automatic Transmission 5R110W NAAO, 5-Speed Manual Transmission-Tremec TR4050, 6-Speed Automatic Transmission (6R140), 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts

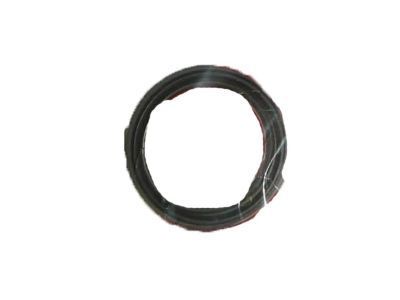

Ford Extension Housing Seal
Part Number: 9L3Z-7052-A
$13.42 MSRP: $22.50
You Save: $9.08 (41%)
Ships in 1-2 Business Days

Out of Stock
Product Specifications
- Other Name: Seal Assembly - Oil; Extension Housing Seal
- Manufacturer Note: Inner Diameter = 62.7MM
Fits the following Ford Models:
- Expedition | 2009-2014 | 8 Cyl 5.4L | 6-Speed Automatic Transmission (6R75), 6-Speed Automatic Transmission (6R80), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Explorer | 2009-2010 | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Explorer Sport Trac | 2009-2010 | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-150 | 2009-2014 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R80), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Mustang | 2011-2014 | 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L SOHC EFI, 8 Cyl 5.0L DOHC EFI Modular, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 5.4L DOHC EFI S/C ALUM, 8 Cyl 5.8L DOHC SC | 6-Speed Automatic Transmission (6R80), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Transit | 2015-2019 | 5 Cyl 3.2L Duratorq-TDCi - Puma, 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA | 6-Speed Automatic Transmission (6R80)
View More
View related parts
Ford Seal
Part Number: YL8Z-1S177-AA
$31.13 MSRP: $51.08
You Save: $19.95 (40%)
ADD TO CART
Product Specifications
- Other Name: Axle Output Shaft Seal - Right, Rear (AT)
- Position: Passenger Side
Fits the following Ford Models:
- Escape | 2001-2008 | 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive
View related parts
Ford Seal
Part Number: BB5Z-1S177-A
$11.48 MSRP: $18.61
You Save: $7.13 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Replaced by: BB5Z-1S177-C
Fits the following Ford Models:
- Edge | 2012-2014 | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Escape | 2013-2016 | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Explorer | 2012-2019 | 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Fusion | 2013-2014 | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Taurus | 2013-2019 | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts
Ford Seal
Part Number: AE8Z-1177-A
$32.46 MSRP: $53.28
You Save: $20.82 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Seal (AT)
Fits the following Ford Models:
- Fiesta | 2011 | 4 Cyl 1.6L TIVCT PFI Sigma | 6-Speed Automatic Transmission GFT DPS6
View related parts
Ford Seal
Part Number: 9L8Z-1177-B
$20.49 MSRP: $33.42
You Save: $12.93 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Replaced by: 9L8Z-1177-BA
Fits the following Ford Models:
- Escape | 2009-2012 | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L OHC Duratec | 6-Speed Automatic Transmission 6F Mid-Range, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Fusion | 2010-2012 | 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Oil Seal Assembly
Part Number: F5RZ-1S177-AA
$7.12 MSRP: $11.62
You Save: $4.50 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil
- Replaced by: CV6Z-1S177-A
Fits the following Ford Models:
- Focus | 2002-2011 | 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI, 4 Cyl 2.0L Duratec HE, 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.0L Zetec VVT, 4 Cyl 2.3L | 4AT 4F27E, 5MT, 5-Speed Manual Transmission - MTX75, 6MT, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Extension Housing Seal
Part Number: 1L2Z-7052-GA
$13.73 MSRP: $18.75
You Save: $5.02 (27%)
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Extension Housing Seal
Fits the following Ford Models:
- Explorer | 2002 | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Manual Transmission (M5R4), Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Seal
Part Number: ML3Z-7B215-A
$23.70 MSRP: $30.83
You Save: $7.13 (24%)
ADD TO CART
Product Specifications
- Other Name: Input Shaft Seal, Output Shaft Seal
- Replaced by: ML3Z-7B215-C
Fits the following Ford Models:
- Expedition | 2022-2024 | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS
- F-150 | 2021-2025 | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX, 8 Cyl 5.2 L GAS
View related parts
Ford Seal
Part Number: 7E5Z-1177-E
$13.73 MSRP: $18.75
You Save: $5.02 (27%)
Ships in 1-3 Business Days
ADD TO CART
Fits the following Ford Models:
- Fusion | 2006-2012 | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transaxle - AWF21, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Oil Seal Assembly
Part Number: BC3Z-7052-C
$51.43 MSRP: $80.50
You Save: $29.07 (37%)
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil
- Replaced by: LC3Z-7052-C
Fits the following Ford Models:
- E-150 | 2014 | 10 Cyl 6.8L SOHC EFI NA, 8 Cyl 5.4L Modular SOHC, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R140)
- E-250 | 2014 | 10 Cyl 6.8L SOHC EFI NA, 8 Cyl 5.4L Modular SOHC, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R140)
- E-350/E-350 Super Duty | 2016-2019 | 10 Cyl 6.8L SOHC EFI NA, 8 Cyl 5.4L Modular SOHC, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R140)
- E-450 Super Duty | 2016-2019 | 10 Cyl 6.8L SOHC EFI NA, 8 Cyl 5.4L Modular SOHC, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R140)
- F-250 Super Duty | 2011-2019 | 10 Cyl 6.8L EFI, 8 Cyl 6.2L OHC NA, 8 Cyl 6.7L Diesel T/C | 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 2011-2019 | 10 Cyl 6.8L EFI, 8 Cyl 6.2L OHC NA, 8 Cyl 6.7L Diesel T/C | 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 2011-2019 | 10 Cyl 6.8L EFI, 8 Cyl 6.2L OHC NA, 8 Cyl 6.7L Diesel T/C | 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 2011-2019 | 10 Cyl 6.8L EFI, 8 Cyl 6.2L OHC NA, 8 Cyl 6.7L Diesel T/C | 6-Speed Automatic Transmission (6R140), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts
Ford Extension Housing Seal
Part Number: F81Z-7052-EB
$13.73 MSRP: $18.75
You Save: $5.02 (27%)
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Extension Housing Seal
- Replaces: F81Z-7052-EA
Fits the following Ford Models:
- F-250 Super Duty | 2005-2010 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.0L Diesel OHV, 8 Cyl 6.4L Diesel Twin Turbo | 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-350 Super Duty | 2005-2010 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.0L Diesel OHV, 8 Cyl 6.4L Diesel Twin Turbo | 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-450 Super Duty | 2005-2010 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.0L Diesel OHV, 8 Cyl 6.4L Diesel Twin Turbo | 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-550 Super Duty | 2005-2010 | 10 Cyl 6.8L EFI, 8 Cyl 5.4L, 8 Cyl 6.0L Diesel OHV, 8 Cyl 6.4L Diesel Twin Turbo | 6-Speed Manual Transmission M6HD-W, 6-Speed Manual Transmission Z/F S6-650, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View More
View related parts
Ford Oil Seal Assembly
Part Number: F5RZ-1177-AA
$7.12 MSRP: $11.62
You Save: $4.50 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil
- Replaced by: CV6Z-1S177-A
Fits the following Ford Models:
- Contour | 1995-2000 | 4 Cyl 2.0L, 6 Cyl 2.5L | 4AT CD4E, 5MT
- Focus | 2000-2001 | 4 Cyl 2.0L | 4AT 4F27E, 5MT
View related parts
Ford Seal
Part Number: 5L8Z-1S177-AB
$14.74 MSRP: $22.91
You Save: $8.17 (36%)
Fits the following Ford Models:
- Escape | 2005-2012 | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI Modular, 6 Cyl 3.0L OHC Duratec | 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Extension Housing Seal
Part Number: 1L5Z-7052-CA
Product Specifications
- Other Name: Seal Assembly - Oil; Extension Housing Seal
- Replaces: E8TZ-7052-D
Fits the following Ford Models:
- Explorer Sport | 2001-2003 | 6 Cyl 4.0L SOHC EFI | 5-Speed Manual Transmission - R1HD, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Explorer Sport Trac | 2001-2005 | 6 Cyl 4.0L SOHC EFI | 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
- Ranger | 2004-2011 | 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L SOHC EFI | 5-Speed Manual Transmission - R1HD, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
View More

| Page 1 of 8 |Next >

1-20 of 154 Results

Ford Transfer Case Seal Parts Questions & Experts Answers

Extension Housing Seal
E2DZ-7052-A
Q:
How to remove the front transfer case seal for the output shaft on a Ford Bronco?
Posted by Muhammed M.
A:
To remove the oil seal, start by raising the vehicle and supporting it securely on jackstands. If the filler plug is higher than the lowest part of the seal, drain the transaxle to prevent fluid loss. Mark the front driveshaft to transfer case yoke orientation, remove the driveshaft, and swing it out of the way. Hold the yoke with a suitable tool and remove the yoke retaining nut. Remove the front output shaft yoke nut, washer, and rubber seal if applicable. Take out the yoke and slinger from the transfer case output shaft. Remove the seal using a slide-hammer and adapter or by carefully prying it out with a blunt screwdriver. Inspect the oil seal contact surface on the case for any damage and clean it. To replace the seal, apply multi-purpose grease and position it squarely into the case bore with the markings facing outwards. Drive the seal into the bore using an appropriately sized seal driver or equivalent tool. Clean and lightly lubricate the yoke splines, then slip the slinger and yoke over the output shaft and past the new seal until it bottoms. Coat the face of the yoke retaining nut with RTV sealant and apply thread locking compound to the threads. Install the rubber seal, washer, and yoke retaining nut onto the output shaft, tightening it to the specified torque. Install the front driveshaft, refill the transfer case lubricant, and lower the vehicle. If necessary, shift out of 4WD mode before returning the vehicle to normal service.
Answered by Ford Parts Specialist Joseph / Jun 20, 2022
Seal
2L1Z-7B215-A
Q:
How to replace the rear transfer case seal on Ford F-150?
Posted by Abdulghani M.
A:
Raise the vehicle and support it securely on jackstands. Remove the rear driveshaft. Pry out the seal with a screwdriver or a seal removal tool, taking care not to damage the seal bore. Lubricate the new seal lips with petroleum jelly or multi-purpose grease. Drive the seal into place using a seal driver or large socket, ensuring the outside diameter of the socket is slightly smaller than the outside diameter of the seal. The remainder of the installation follows the reverse order of removal.
Answered by Ford Parts Specialist John / Jan 27, 2026
Rear Seal
F6TZ-7052-A
Q:
How to replace the Transfer Case Seal in the extension housing on 2WD Ford Ranger?
Posted by Elvin F.
A:
Raise the vehicle and support it securely on jackstands. Remove the driveshaft, noting that some transmission lubricant may drain out when the driveshaft slip joint is withdrawn from the extension housing. To remove the oil seal from the end of the extension housing, use a special tool available at most auto parts stores, or if access allows, use a thin blade screwdriver or chisel to pry the oil seal out. Inspect the sealing surface on the driveshaft slip joint for scoring or burrs that may damage the new oil seal, and replace the yoke if it is damaged. Check the extension housing counterbore for burrs and remove them with emery cloth or medium grit wet-and-dry sandpaper, then clean any sanding residue with a cloth dipped in solvent. Apply silicone sealant to the inside diameter of the oil seal and grease to the end of the rubber boot portion. Using a seal driver, large socket, or section of pipe, install a new oil seal, ensuring it is completely seated in the counterbore. Finally, install the driveshaft, lower the vehicle, and check the transmission lubricant level, topping up if necessary.
Answered by Ford Parts Specialist Jack / Dec 13, 2024

Related Ford Parts

Browse by Model
