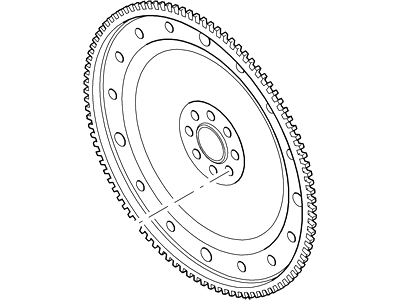

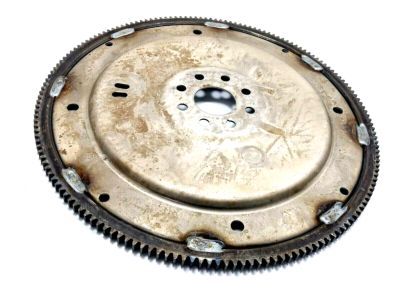

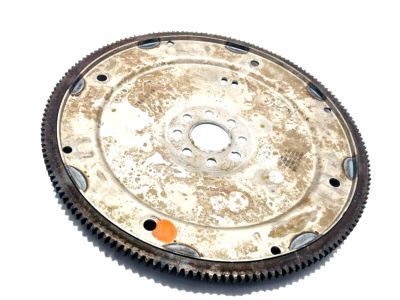

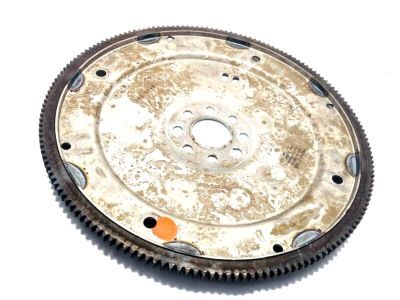

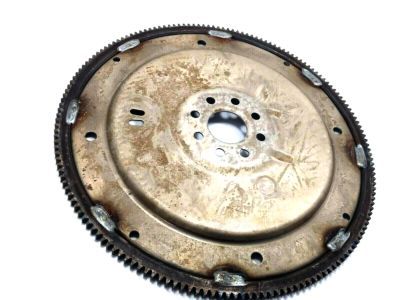

Ford F6AZ-6375-DA Flywheel Assembly

Disconnect the negative battery cable and replace the pump seal/O-ring. Look for factory paint marks indicating driveplate-to-crankshaft alignment; if absent, create alignment marks using paint or a center-punch. Remove the bolts securing the driveplate to the crankshaft, using a screwdriver to jam the driveplate if the crankshaft turns. Carefully support the driveplate while removing the last bolt and clean it to eliminate grease and oil, checking for cracked or broken ring gear teeth. Lay the driveplate on a flat surface to check for warpage with a straightedge, and inspect the mating surfaces of the driveplate and crankshaft. If the crankshaft rear seal is leaking, replace it before positioning the driveplate against the crankshaft, ensuring alignment with the marks made during removal. Some engines may have an alignment dowel or staggered bolt holes for correct installation; apply Teflon sealant to the bolt threads before installation. Use a screwdriver through the starter motor opening to prevent the driveplate from turning while tightening the bolts to the specified torque, and complete the installation by reversing the removal steps.

Disconnect the cable from the negative battery terminal, raise the vehicle, and support it securely on jackstands before removing the transmission. Inspect the transmission for leaks, and consider replacing the front pump seal/O-ring if necessary. Look for factory paint marks indicating driveplate-to-crankshaft alignment; if absent, create your own marks to ensure correct alignment during reassembly. Remove the bolts securing the driveplate to the crankshaft, using a screwdriver to jam the driveplate if it turns. Carefully remove the driveplate, supporting it while taking out the last bolt, and note that a reinforcement/mounting plate between the engine block and driveplate does not need to be removed unless being replaced. If the reinforcement plate was removed, reinstall it correctly for starter installation. Clean and inspect the mating surfaces of the driveplate and crankshaft, replacing the crankshaft rear seal if it is leaking. Check for any cracked, broken, or missing ring gear teeth and replace the driveplate if necessary. Install the driveplate to the engine, aligning it with the marks made during removal, and apply a sealant with Teflon to the threads of the bolts before tightening them to the specified torque while wedging a screwdriver through the starter motor opening to prevent the driveplate from turning. Complete the installation by reversing the removal procedure.

Look for factory paint marks that indicate flywheel-to-crankshaft alignment. If they aren't there, use a center-punch or paint to make alignment marks on the flywheel/driveplate and crankshaft to ensure correct alignment during reinstallation. Make two matching marks on the flywheel and pilot bearing rim for flywheel alignment.

Look for factory paint marks that indicate flywheel-to-crankshaft alignment. If they aren't there, use a center-punch or paint to make alignment marks on the flywheel/driveplate and crankshaft to ensure correct alignment during reinstallation.

Raise the vehicle and support it securely on jackstands, then remove the transmission. If it's leaking, now would be a very good time to replace the front pump seal/O-ring.

The bolts can be accessed for removal through the large rubber plug on the right rear of the engine block.
