How to remove the timing cover while keeping the oil pan attached in a 5.0L V8 engine on a Ford Explorer?

On this model, the manufacturer recommends removing the engine from the vehicle to perform timing cover removal, as the oil pan must be removed to properly seal the bottom of the timing cover. An alternative method allows the oil pan to remain attached, making for an in-vehicle procedure. Begin by removing the engine cooling fan/shroud and water pump, then disconnect the radiator and heater hoses. Drain the engine oil and remove the oil filter. Next, remove the crankshaft pulley, disconnect the electrical connector from the crankshaft position sensor, and remove the sensor. Unbolt and remove all accessory brackets attached to the timing cover, tying the power steering pump aside with the hoses still connected. For models equipped with air conditioning, remove the compressor front support bracket while leaving the compressor in place. Position the number one piston at TDC on the compression stroke, then remove the oil pan-to-timing cover bolts. Use a razor knife or blade to cut the oil pan gasket flush with the engine block face, ensuring a clean cut to prevent tearing the original gasket during cover removal. Remove the bolts and separate the timing cover from the engine block, tapping gently with a soft-face hammer if necessary, and double-check that all bolts are removed. To install, stuff a shop rag into the oil pan opening to keep debris out, then use a gasket scraper to remove all traces of old gasket material and sealant from the cover, oil pan, and engine block, cleaning them with lacquer thinner or acetone. Cut the front section from a new oil pan gasket to fit the timing cover and attach it with contact adhesive, allowing it to dry thoroughly. Apply a 1/8-inch bead of RTV sealant to the oil pan-to-block joints, lubricate the front crankshaft oil seal lip with engine oil, and apply a thin coat of RTV sealant to the block side of the new cover gasket before positioning it on the engine. Apply a thin coat of RTV sealant to the gasket surface of the cover and attach it to the engine, ensuring the oil pan gasket remains in place. It may be necessary to compress the rubber seal by forcing the cover down before installing the cover bolts to the block. Install the four cover-to-engine block bolts followed by the oil pan-to-cover bolts, tightening them to the specified torque while ensuring the gasket remains in place. Reinstall the remaining components in the reverse order of removal, applying a dab of RTV sealant to the keyway in the pulley before reinstalling it. Finally, add engine oil and coolant, then run the engine and check for leaks.

Genuine Ford Explorer Timing Cover

Engine Timing Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Timing Covers found

View related parts

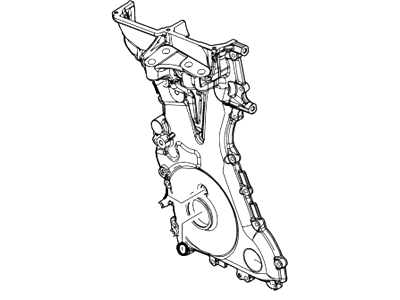

Ford Explorer Front Cylinder Cover
Part Number: BT4Z-6019-B
$121.64 MSRP: $177.83
You Save: $56.19 (32%)
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front; Front Cover, Timing Cover
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2019 Ford Explorer | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

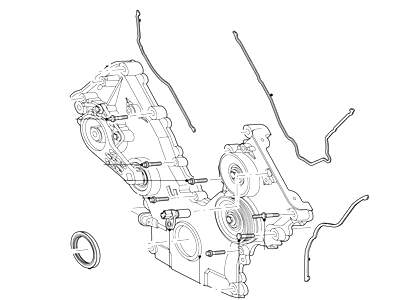

Ford Explorer Front Cylinder Cover
Part Number: 7T4Z-6019-C
$126.54 MSRP: $185.00
You Save: $58.46 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front; Front Cover, Timing Cover
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Position: Front
- Replaces: 7T4Z-6019-GD
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Explorer | 6 Cyl 3.5L DOHC T/C | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

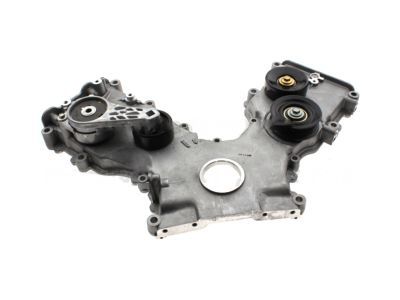

Ford Explorer Front Cylinder Cover
Part Number: 5L2Z-6019-AA
$63.58 MSRP: $92.95
You Save: $29.37 (32%)
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front; Front Cover, Timing Cover
- Position: Front
- Replaces: 1L2Z-6019-AA, F77Z-6019-AD
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2010 Ford Explorer | 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R70W, 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 5AT 5R55E, 5MT, 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: 1L2Z-6019-AA
$63.58 MSRP: $92.95
You Save: $29.37 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front
- Manufacturer Note: SOHC
- Position: Front
- Replaced by: 5L2Z-6019-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2004 Ford Explorer | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: BB5Z-6019-A
$111.72 MSRP: $163.33
You Save: $51.61 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front
- Position: Front
- Replaced by: BB5Z-6019-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2013 Ford Explorer | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Front Cylinder Cover
Part Number: 7R3Z-6019-A
$169.86 MSRP: $248.33
You Save: $78.47 (32%)
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front; Front Cover, Timing Cover
- Position: Passenger Side
- Replaces: 4R3Z-6019-BG, 7R3Z-6019-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Explorer | 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Cover Assembly - Cylinder Head Front
Part Number: K2GZ-6019-B
$52.55 MSRP: $75.50
You Save: $22.95 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER ASY - CYLINDER HEAD FRON; Front Cover, Lower Cover, Valve Cover
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2024 Ford Explorer | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: K2GZ-6019-L
$143.64 MSRP: $210.00
You Save: $66.36 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER - CYLINDER FRONT; Front Cover, Timing Cover
- Position: Front
- Replaces: K2GZ-6019-D, K2GZ-6019-F, K2GZ-6019-H
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2024 Ford Explorer | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: N1MZ-6019-B
$341.83 MSRP: $504.17
You Save: $162.34 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER - CYLINDER FRONT; Front Cover, Timing Cover
- Position: Front
- Replaces: L1MZ-6019-G, N1MZ-6019-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2024 Ford Explorer | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: L1MZ-6019-C
$152.99 MSRP: $223.67
You Save: $70.68 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER - CYLINDER FRONT; Front Cover, Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Explorer | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: F77Z-6019-AD
$63.58 MSRP: $92.95
You Save: $29.37 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Cylinder Front
- Manufacturer Note: SOHC -Before 7/24/00
- Position: Front
- Replaced by: 5L2Z-6019-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2001 Ford Explorer | 6 Cyl 4.0L | 4AT 4R70W, 5AT 5R55E, 5MT
View related parts
Ford Explorer Front Cylinder Cover
Part Number: PB5Z-6019-D
$126.54 MSRP: $185.00
You Save: $58.46 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER - CYLINDER FRONT; Front Cover, Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Explorer | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Ford Explorer Cover
Part Number: 4C2Z-6019-BA
$127.91 MSRP: $187.00
You Save: $59.09 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Cover only
- Replaced by: 4C2Z-6019-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Ford Explorer | 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Front Cylinder Cover
Part Number: PB5Z-6019-B
$324.31 MSRP: $478.33
You Save: $154.02 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER - CYLINDER FRONT; Front Cover, Timing Cover
- Position: Front
- Replaced by: PB5Z-6019-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Explorer | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Ford Explorer Front Cylinder Cover
Part Number: 2L2Z-6019-AA
Product Specifications
- Other Name: Cover - Cylinder Front; Front Cover, Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2005 Ford Explorer | 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Cover Assy - Cylinder Block Front
Part Number: F67Z-6019-AA
Product Specifications
- Other Name: Front Cover, Timing Cover
- Manufacturer Note: Seal and cover
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2001 Ford Explorer | 8 Cyl 5.0L | 4AT 4R55E, 4AT 4R70W, 5AT 5R55E, 5MT
View related parts
Ford Explorer Front Cylinder Cover
Part Number: DA8Z-6019-A
Product Specifications
- Other Name: Cover - Cylinder Front; Front Cover, Timing Cover
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Explorer | 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L TIVCT DI TC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Front Cylinder Cover
Part Number: 4L1Z-6019-AA
Product Specifications
- Other Name: Cover - Cylinder Front; Timing Cover
- Manufacturer Note: Includes Gaskets And 6B209 Tensioner
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Ford Explorer | 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Ford Explorer Timing Cover

Timing Cover In Each Ford Explorer automobile, protects the engine timing, which can comprise of a timing belt/timing chain/cam belt. Made of durable materials like aluminum, plastic or steel the Timing Cover shields the inside equipments, from being interfered with by debris. Most Ford Explorer Timing Covers have gaskets installed to add to the defense of the timing belt. In all the years that the Ford Explorer has been in production the following styles of Timing Covers have been used depending on the engines needed. However, these covers are very durable and may sometimes break down unpredictably and thus need to be replaced on time to ensure safe operation of the vehicle. The Timing Cover of the Ford Explorer is very important for its longevity as well as its performance and it is crucial that the vehicle be maintained well.

We provide a wide range of Ford Explorer Timing Cover at the optimal prices. If you need Ford Explorer Timing Cover, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Explorer Timing Cover Parts Questions & Experts Answers

Front Cylinder Cover
F77Z-6019-AD
Q: How to remove the timing cover while keeping the oil pan attached in a 5.0L V8 engine on a Ford Explorer?
A:
On this model, the manufacturer recommends removing the engine from the vehicle to perform timing cover removal, as the oil pan must be removed to properly seal the bottom of the timing cover. An alternative method allows the oil pan to remain attached, making for an in-vehicle procedure. Begin by removing the engine cooling fan/shroud and water pump, then disconnect the radiator and heater hoses. Drain the engine oil and remove the oil filter. Next, remove the crankshaft pulley, disconnect the electrical connector from the crankshaft position sensor, and remove the sensor. Unbolt and remove all accessory brackets attached to the timing cover, tying the power steering pump aside with the hoses still connected. For models equipped with air conditioning, remove the compressor front support bracket while leaving the compressor in place. Position the number one piston at TDC on the compression stroke, then remove the oil pan-to-timing cover bolts. Use a razor knife or blade to cut the oil pan gasket flush with the engine block face, ensuring a clean cut to prevent tearing the original gasket during cover removal. Remove the bolts and separate the timing cover from the engine block, tapping gently with a soft-face hammer if necessary, and double-check that all bolts are removed. To install, stuff a shop rag into the oil pan opening to keep debris out, then use a gasket scraper to remove all traces of old gasket material and sealant from the cover, oil pan, and engine block, cleaning them with lacquer thinner or acetone. Cut the front section from a new oil pan gasket to fit the timing cover and attach it with contact adhesive, allowing it to dry thoroughly. Apply a 1/8-inch bead of RTV sealant to the oil pan-to-block joints, lubricate the front crankshaft oil seal lip with engine oil, and apply a thin coat of RTV sealant to the block side of the new cover gasket before positioning it on the engine. Apply a thin coat of RTV sealant to the gasket surface of the cover and attach it to the engine, ensuring the oil pan gasket remains in place. It may be necessary to compress the rubber seal by forcing the cover down before installing the cover bolts to the block. Install the four cover-to-engine block bolts followed by the oil pan-to-cover bolts, tightening them to the specified torque while ensuring the gasket remains in place. Reinstall the remaining components in the reverse order of removal, applying a dab of RTV sealant to the keyway in the pulley before reinstalling it. Finally, add engine oil and coolant, then run the engine and check for leaks.
