Genuine Ford Engine Mount
Engine Motor Mount- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
1115 Engine Mounts found

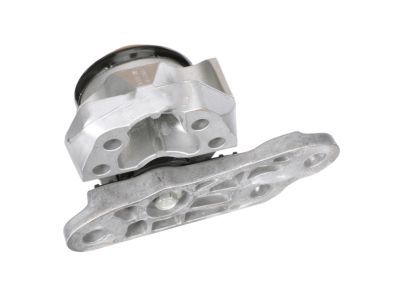

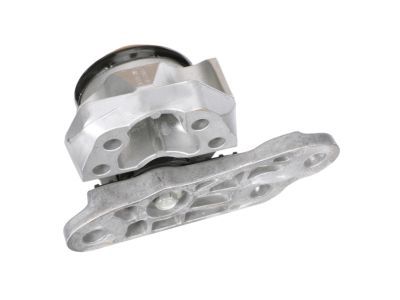

Ford Engine Front Support Bracket
Part Number: GB5Z-6038-A$104.66 MSRP: $136.17You Save: $31.51 (24%)Product Specifications- Other Name: BRACKET - ENGINE FRONT SUPPORT; Front Mount, Mount
- Position: Front
- Replaces: BB5Z-6038-A, BB5Z-6038-E, DB5Z-6038-A, FB5Z-6038-A

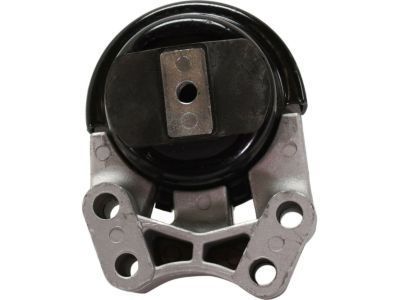

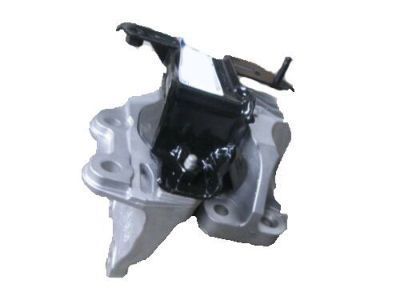

Product Specifications- Other Name: Insulator Assy
- Replaces: DB5Z-6038-B, BB5Z-6038-B

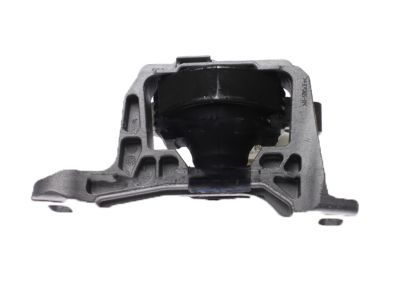

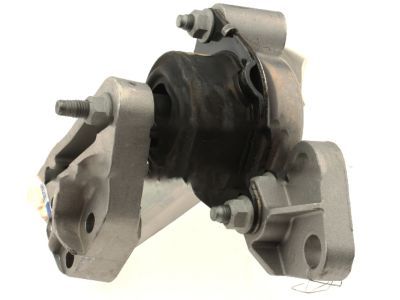

Ford Engine Front Support Bracket
Part Number: BV6Z-6038-A$126.87 MSRP: $165.07You Save: $38.20 (24%)Product Specifications- Other Name: Bracket - Engine Front Support; Front Mount, Motor Mount, Mount
- Position: Front

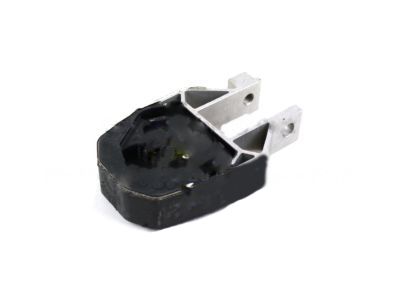

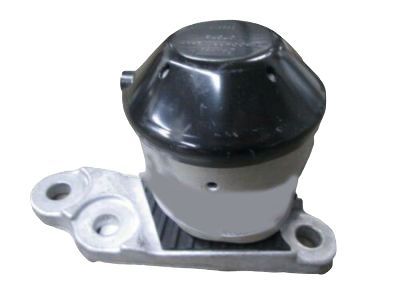

Product Specifications- Other Name: Torque Arm
- Replaces: BB5Z-6068-C, BB5Z-6068-A

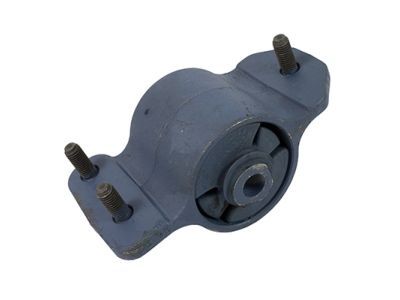

Product Specifications- Other Name: Bracket - Insulator Mounting; Motor Mount, Mount
- Manufacturer Note: For Warm Climates Only
- Replaces: 5S4Z-6038-CA

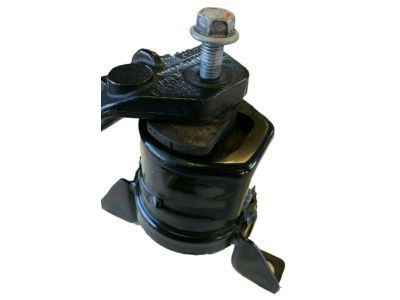

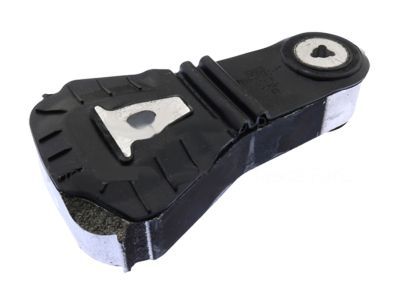

Ford Engine Motor Mount Bracket Torque Strut
Part Number: 8M8Z-6038-A$93.83 MSRP: $146.83You Save: $53.00 (37%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Bracket - Engine Mounting
- Manufacturer Note: Bracket
- Position: Passenger Side

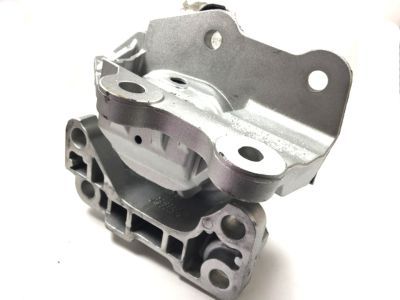

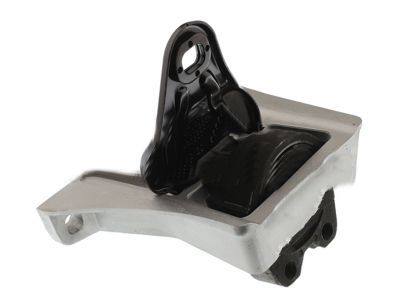

Product Specifications- Other Name: Bracket - Engine Front Support; Front Mount, Motor Mount, Mount
- Position: Front
- Replaces: DV6Z-6038-A

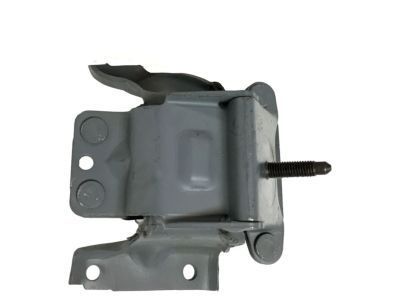

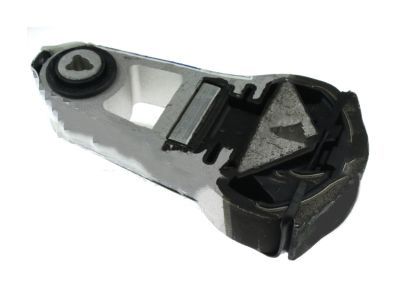

Ford Engine Front Support Bracket
Part Number: 9E5Z-6038-F$68.61 MSRP: $100.30You Save: $31.69 (32%)Product Specifications- Other Name: Bracket - Engine Front Support; Front Mount, Mount
- Position: Front
- Replaces: 6E5Z-6038-CA, 6E5Z-6061-BA, 6E5Z-6038-CK

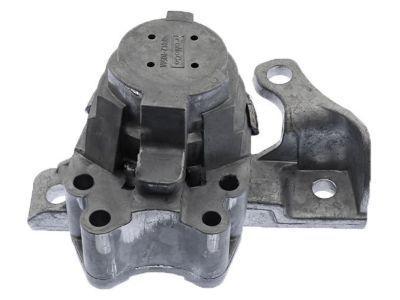

Ford Engine Front Support Bracket
Part Number: FB5Z-6038-A$104.66 MSRP: $136.17You Save: $31.51 (24%)Product Specifications- Other Name: Bracket - Engine Front Support
- Position: Front
- Replaced by: GB5Z-6038-A
Product Specifications- Other Name: Insulator Assy; Mount
- Replaces: 4R3Z-6038-DA
Ford Engine Front Support Bracket
Part Number: DB5Z-6038-A$104.66 MSRP: $136.17You Save: $31.51 (24%)Product Specifications- Other Name: Bracket - Engine Front Support
- Position: Front
- Replaced by: GB5Z-6038-A
Product Specifications- Other Name: Insulator Assy
- Replaced by: FB5Z-6038-B
Product Specifications- Other Name: Insulator Assy; Side Mount
- Position: Passenger Side
Ford Transmission Mount
Part Number: 6H6Z-6038-BA$79.77 MSRP: $116.62You Save: $36.85 (32%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Insulator Assy
- Position: Driver Side
Product Specifications- Other Name: Transmission Mount
- Replaces: 8T4Z-6068-A
Ford Engine Support Insulator Assembly
Part Number: LK4Z-6068-A$67.12 MSRP: $87.33You Save: $20.21 (24%)Product Specifications- Other Name: INSULATOR ASY - ENGINE SUPPORT; Mount, Transmission Mount
- Replaces: CK4Z-6068-E, CK4Z-6068-B
Ford BRACKET - ENGINE SUPPORT
Part Number: CK4Z-6096-E$155.00 MSRP: $201.67You Save: $46.67 (24%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Front Mount, Motor Mount
- Replaces: CK4Z-6096-B, CK4Z-6096-D, CK4Z-6096-A, CK4Z-6096-C
Ford Engine Support Insulator Assembly
Part Number: 7A2Z-6038-CA$62.70 MSRP: $91.67You Save: $28.97 (32%)Product Specifications- Other Name: Insulator Assembly - Engine Support; Front Mount, Motor Mount
- Position: Driver Side
- Replaces: 7A2Z-6038-A, 7A2Z-6038-C
Product Specifications- Other Name: Insulator Assy; Front Mount, Mount
- Manufacturer Note: RH, front, police, taxi, fleet, limo - severe duty
- Position: Passenger Side
| Page 1 of 56 |Next >
1-20 of 1115 Results
Ford Engine Mount Parts Questions & Experts Answers
- Q: Should engine mounts be replaced immediately if they are broken or deteriorated in 4.0L pushrod V6 engine on Ford Explorer?A:Engine mounts are very rarely an issue, but if any of the mounts are broken or worn they should be replaced as soon as possible to stop the drive line parts from wearing. During the check the engine should be lifted slightly off the mounts to take the weight off the mounts. Lift the vehicle until you find it convenient to place jack stands under it and securely tighten and place a jack under the engine oil pan. If the vehicle is fitted with Automatic Ride Control (ARC), make sure that the air suspension is switched off before lifting the vehicle to prevent damage on the air suspension parts. Interpose one large block of wood between the jack head and oil pan then, gradually jack the engine upwards, enough to lighten the load on the mounts. Check if there're any cracks on the mounts, hardening of rubber or that it has pulled from the metal plates as the rubber can split right down the middle. Probe the separate mount plates for relative movement toward the engine or frame utilizing a large screwdriver or pry bar; in case of the presence of such movement, lower the engine and tighten the mount fasteners. It is also advisable to apply rubber preservative to help in reducing the rate of deterioration that it undergoes. To remove the mounts, first, unfasten the negative terminal on your battery, and if the car is still on the ground ready it on a jack and support it using jack stands if necessary. Take off the fasteners and snap off the mount from the frame bracket position. Lift the engine with a jack or hoist, so that the fan is away from the radiator or shroud, and then unbolt and take off the mount-to-lock. As for removal, installation is really the exact opposite; apply thread locking compound to the mount bolts and make sure they are torqued properly.
- Q: How to check and replace engine mounts in 3.5L and 3.7L V6 engine on Ford F-150?A:There are three powertrain mounts on the vehicles; left and right engine mounts, bonded to the engine block and the frame, and the rear mount connected to the transmission and the transmission crossmember. Engine mounts do not usually need service but when you have a damaged or worn out mount, you should replace it before it spoils or damages other parts of the driveline. During the check the engine must be lifted up, so that the weight would not lie on the mounts. First of all, a car should be lifted and safely secured on the jackstands. Place a jack under the engine oil pan, and put a large wooden plank on the head of the jack, slowly lift the engine just enough to minimise pressure on the mounts. Next using the large screwdriver or prybar try to move the inside and outside of the mount relative to each other; if motion is obtained, lower the engine and tighten the mount screws. This test involves checking the mounts for signs of cracking, hardening or where the rubber has separated from the metal in which case then we replace the gave mounts. Remove the multi metre cable connection from the negative terminal of the battery, next, lift the front part of the car and place it on jack stands. Exploding the side of the engine where carburetor is located Disconnect the hood and the intake manifold. For 3.5L models only, disconnect high-pressure fuel pump, two nuts of charge air cooler's tube bracket and free the hose clipped on the valve cover side. First take off the cowl panel, then the air deflector over the radiator and the under vehicle splash shield. Most of the nuts that hold the transmission mount crossmember needs to be loosened but not fully removed. It is necessary to fasten lifting eyes at the right-front and left-rear of the engine and use a crane or engine support fixture to lift it. For 4 WD models raise front axle slightly and support front differential reinstall floor jack under front differential ensuring that the differential is firmly held to the jack, remove differential mounting bushing bolts when the differential is to be lowered to gain access to the engine mounts. First take out the through-bolt of the engine mount and then the bracket to engine block bolts and finally the bracket. Loosen the three bolts which holds the mount insulator to frame rail. Bolt in the new engine mount using the recommended torque value. Slide the engine mount onto the engine support bracket and tighten the bolts then insert the through-bolt of the mount and apply means of preventing the thread from backing out. The rest of the operation is done step by step in the reverse sequence to the removal that concludes with the removal of the engine hoist and jackstands before lowering the vehicle.
- Q: How should engine mounts be checked and replaced on Ford Ranger?A:Engine mounts seldom require attention, but broken or deteriorated mounts should be replaced immediately to prevent damage or wear on the drive line components. To check the mounts, the engine must be raised slightly to remove the weight from them. Begin by raising the vehicle and securely supporting it on jack stands, then position a jack under the engine oil pan with a large block of wood between the jack head and the oil pan, carefully raising the engine just enough to relieve the weight on the mounts. Inspect the mounts for any cracks, hardened rubber, or separation from the metal plates, noting that the rubber may split down the center. Check for any relative movement between the mount plates and the engine or frame using a large screwdriver or pry bar; if movement is detected, lower the engine and tighten the mount fasteners. To slow deterioration, apply rubber preservative to the mounts. For replacement, disconnect the negative battery cable, raise the vehicle, and support it securely on jack stands. Remove the engine cooling fan/shroud assembly, then take out the fasteners holding the mount to the engine bracket and chassis. Raise the engine slightly with a jack or hoist and detach the mount from the chassis bracket. Installation follows the reverse order of removal, using thread-locking compound on the mount fasteners and ensuring they are tightened securely.
