Internal Parts - Case, Extension Housing & Related Parts fit your 2002 Ford E-250 6 Cyl 4.2L 4-Speed Automatic Transmission 4R70W
Currently shopping for
2002 Ford E-250
Change VehicleVehicle Options
6 Cyl 4.2L; 4-Speed Automatic Transmission 4R70WVehicle Options
6 Cyl 4.2L; 4-Speed Automatic Transmission 4R70WCategories Close X
Currently selected
Automatic Transmission
- External Parts - Transmission Cooling System
- Gearshift Controls - Steering Column Mounted
- Internal Parts - Case, Extension Housing & Related Parts
- Internal Parts - Direct Clutch & Output Shaft Assembly
- Internal Parts - Forward Clutch, Low One-Way Clutch, Planetary & Reverse Band
- Internal Parts - Intermediate Clutch, Overdrive Band & Reverse Clutch
- Internal Parts - Servos & Accumulators
- Internal Parts - Torque Convertor & Pump Assembly
- Internal Parts - Valve Body & Related Parts
- Steering Column
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
How to use OE catalog
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
F6TZ-7A191-A
GASKET (FLUID PAN TO CASE)Gasket- Molded gasket, 1C2P-A*,B*,D*
- Base Number: 7A191
- Callout Name: 7A191
$34.17 $23.991
F2VY-7A191-A
GASKET (FLUID PAN)Gasket- Gasket not included in kits - gasket is molded design and is reusable - refer to shop manual for cleaning procedure
- Base Number: 7A191
- Callout Name: 7A191
$47.50 $33.351
E9TZ-7N171-A
PLUG (CONV. HOUSING ACCESS)Plug- Plug - rubber - located in bottom of transmission converter housing
Plug - rubber - located in bottom of transmission converter housing, 1C2P-A*,B*,D* - Base Number: 7N171
- Callout Name: 7N171
$18.70 $13.131
D5AZ-7B498-A
SEAL (MANUAL CONTROL LEVER FLUID)Seal- 1C2P-A*,B*,D*
- Base Number: 7B498
- Callout Name: 7B498
$4.44 $3.123
- PLUG
-87036-S94
Ring- (T-1-C) o-ring (7H183 to 7A039), YC2P-E*;1C2P-A*,B*,D*
- Base Number: 87036
- Callout Name: 7H183
$5.00 $2.932
$17.97 $12.611
-57621-S2
Hardware - Miscellaneous- (U-3-A) screw and washer (7H183 to 7A039) 1/4-20 x 0.62, 1C2P-A*,B*,D*
- Base Number: 57621-S2
- Callout Name: 7H183
$13.23 $7.7315- F81Z-7H183-AA
Plug- Plug - used to plug OSS/TSS hole when sensor is not used., 1C2P-A*,B*,D*
- Base Number: 7H183
- Callout Name: 7H183
$50.17 $34.92
- SENSOR ASY. (TRANSMISSION RANGE)
-N811382-S101
Bolt- (010-020) Bolt and washer, hex flanged head - M6-1.0 x 30mm-attaches(7F293 to 7005), 1C2P-A*,B*,D*
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7F293
- Replaced By: -N811382-S450
$18.75 $13.731
$91.27 $57.23
$99.09 $62.13
-N806933-S102
Bolt- Bolt and washer - M6-1.0 x 25 - attaches 7F293 to 7005
- Require Quantity: 2
- Package Quantity: 1
- Base Number: HB1
- Callout Name: 7F293
- SENSOR (OUTPUT SHAFT SPEED)
-N605771-S427
Bolt- Bolt, hex flanged head - M6-1.0 x 14 - attaches (7H103 to 7005)
- Callout Name: 7H103
- Replaced By: -N605771-S439
$26.90 $15.744
-N805862-S
Seal- Seal, O-ring - 14mm x 1.78mm
- Require Quantity: 2
- Package Quantity: 10
- Callout Name: 7H103
- Replaced By: F1DZ-7Z101-A
$2.74 $1.7710
- HOUSING (EXTENSION)
F5UZ-7A039-A
Housing - Transmission Extension- 11" Long. When servicing 2004 also order F2UZ-7H183-A plug and 57621-S2 screw to cover VSS hole.
- Base Number: 7A039
- Callout Name: 7A039
$431.67 $282.311
-N605803-S36
Bolt- Bolt, hex flanged head - M10-1.5 x 40mm-attaches(7A039 to 7005)
- Require Quantity: 6
- Package Quantity: 4
- Callout Name: 7A039
- Replaced By: -N605803-S437
$15.00 $8.784
F3LY-7A039-A
Housing - Transmission Extension- 10" long, Use F2UZ-7H183-A plug if required for sensor hole
- Base Number: 7A039
- Callout Name: 7A039
$432.67 $293.351- -N605802-S36
Bolt- Bolt, hex flanged head - M10- 1.5 x 35mm- attaches (7A039 to 7005), 1C2P-A*,B*,D*
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7A039
- Replaced By: -N605802-S427
$18.50 $10.824
-N803747-S1101
Bolt- Bolt, hex head - M8-1.25 x 30 - attaches 7A039 to 7005, YC2P-B*,N*,S*;1C2P-H*,M*,S*
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7A039
- Replaced By: -N803747-S102
$4.00 $2.344
-N803521-S1101
Bolt- Stud, hex shouldered - M8-1.25 x 1.25 x 54 - attaches 7A039 to 7005, YC2P-B*,N*,S*;1C2P-H*,M*,S*
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7A039
- Replaced By: -N803521-S102
XL3Z-7A039-AA
Housing - Transmission Extension- YC2P-E*;1C2P-A*,B*
- Base Number: 7A039
- Callout Name: 7A039
- SEAL ASY. (EXTENSION HOUSING FLUID)
$26.67 $18.241
$30.83 $21.651
- GASKET (EXTENSION HOUSING)
$11.49 $8.063
$14.00 $9.833
- PAN ASY. (TRANSMISSION FLUID)
$54.67 $38.051

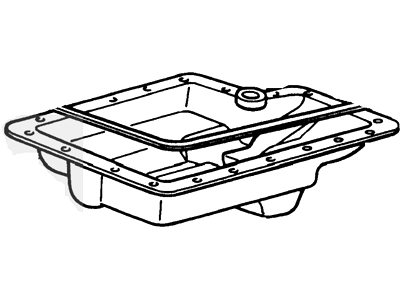

F8UZ-7A194-AA
Pan Assy - Transmission Oil- F8UP-VA;XC2P-SA;YC2P-SA,YA;1C2P-SA,YA;4C2P-MA,NA
- Base Number: 7A194
- Callout Name: 7A194
E9SZ-7D273-A
CONNECTOR ASY. (FLUID COOLER TUBE)Connector - Oil Tube- 5/16"
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7D273
- Replaced By: 7L3Z-7D273-A
$118.50 $76.651
F7TZ-7B210-AA
PIN (MANUAL LEVER RETAINING)Pin - Retaining- Pin - retains 7A256 to 7005, 1C2P-A*,B*,D*
- Base Number: 7B210
- Callout Name: 7B210
$13.77 $9.661
- CASE ASY.
-372552-S2
Nut - Spring- Nut, spring - 3/8" - attaches id tag to case, 1C2P-A*,B*,D*
- Base Number: 372552-S2
- Callout Name: 7005
$2.13 $1.244
-388142-S
Pin - Locating- Pin, dowel - reverse band anchor - 1/2" x .98"
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 388142-S
- Callout Name: 7005
$13.50 $7.902
-N808235-S426
Bolt- Screw & washer, hex. head - M12-1.75x110
- Callout Name: 7005
- Replaced By: -N808235-S439
$43.30 $25.334- -353078-S100
Ball - Check Valve- Ball - EPC blow off - .25" - steel, 1C2P-A*,B*,D*
- Base Number: 353078-S100
- Callout Name: 7005
$1.00 $0.5910
$2.50 $1.468
-390318-S2
Plug - Threaded- Plug - pipe - 1/8"-27 - (pressure tap ports)
- Require Quantity: 5
- Package Quantity: 4
- Callout Name: 7005
- Replaced By: -390685-S430
$8.00 $4.684
-390685-S
Plug - Threaded- (090-010) Plug - pressure tap - 1/8"-27 x .65", 1C2P-A*,B*,D*
- Base Number: 390685-S
- Callout Name: 7005
$12.00 $7.025
XC3Z-7005-AA
Case Assy - Transmission- Without PTO - Service case - may appear different from production case, YC2P-E*;1C2P-A*,B*
- Base Number: 7005
- Callout Name: 7005
- PAN ASY. (FLUID)
-N811266-S36
Bolt - Hex.Head- Bolt, hex flanged head - M8-1.25 x 15mm-attaches (7A194 to 7005)
- Require Quantity: 20
- Package Quantity: 4
- Callout Name: 7A194
- Replaced By: -N811266-S437
$9.25 $5.424
$130.17 $89.031
F75Z-7C493-AA
SHAFT (MANUAL CONTROL LEVER)Shaft - Manual Lever Control- #Area for 7A256 lever is round with two flats
- Base Number: 7C493
- Callout Name: 7C493
$111.83 $76.491
E4AZ-7A441-A
PAWL (PARKING BRAKE)Pawl Assy - Parking- BEFORE 11/15/04
- Callout Name: 7A441
- Replaced By: 6C2Z-7A441-A
$2.50 $1.468
- $8.00 $4.684
- SOLENOID (ELECTRIC PRESSURE CONTROL)
- $2.74 $1.7710
$114.03 $78.001
- $26.90 $15.744
- LEVER ASY. (MANUAL CONTROL VALVE DETENT)
-N800287-S
Nut - Hex.- Nut, hex M14-1.5 - attaches 7A115 to 7C493, 1C2P-A*,B*,D*
- Base Number: HN1
- Callout Name: 7A115
$12.00 $7.024
$35.50 $24.92
-N800287-S36
LEVER ASY. (MANUAL VALVE DETENT)Nut - Hex.- Nut, hex - M14 x 1.5 - attaches 7A115 to 7A256
- Callout Name: 7A115
- Replaced By: -N800287-S300
$32.25 $18.874
- $32.25 $18.874
- $4.00 $2.344
- PLATE (PARK ROD GUIDE)
-N805232-S
Screw- (AB-160-E) Bolt, hex head - M8 - 1.25 x 23.8-attaches (7D419 to 7005), 1C2P-A*,B*,D*
- Require Quantity: 2
- Package Quantity: 1
- Base Number: HS1
- Callout Name: 7D419
$18.75 $13.731
$13.22 $9.281
- $2.74 $1.7710
$15.00 $8.784
- LEVER ASY. (MANUAL CONTROL)-N808737-S427
Nut - Hex.- Nut, hex flanged locking - M10-1.5 - attaches 7A256 to 7C493
- Callout Name: 7A256
- Replaced By: -N808737-S441
$15.00 $8.784
F75Z-7A256-AA
Lever- #F75P 7A256-AA - round hole with two flats for 7C493 shaft
- Base Number: 7A256
- Callout Name: 7A256
$146.67 $100.321
F7UZ-7A256-BB
Lever- 1 piece brazed to manual shaft, 1C2P-A*,B*,D*
- Callout Name: 7A256
- Replaced By: 4L3Z-7A256-BA
$308.33 $209.051
E2TZ-7D273-A
CONNECTOR ASY. (TRANSMISSION OIL TUBE PILOTED TO RADIATOR)Connector - Oil Tube- Includes "O" ring, 1/2 - 20 female x 1/4 NPTF male, for 5/16 diameter tube
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 7D273
- Callout Name: 7D273
$11.09 $7.792
E4AZ-7D071-A
SHAFT (PARKING PAWL)Pin - Retaining- 1/8" diameter hole in end of shaft
- Base Number: 7D071
- Callout Name: 7D071
$28.17 $19.271
$17.92 $12.581
$8.85 $6.211
- COVER (TRANSMISSION CONVERTER HOUSING LOWER)
$10.27 $7.211
F6TZ-7986-A
Cover- Plug - rubber - located in front of 7007 plate - 84mm x 100mm - with hold down clip, 4.2L/4R70W
- Fit Note: 6 Cyl
- Callout Name: 7986
- Replaced By: 6L3Z-7986-AA
$18.75 $13.731
- GASKET AND OIL SEAL KIT (OVERHAUL)
$213.33 $145.921 - FOTZ-7153-A
Kit - Gasket- Note: Kit does not include 7D100 and 7C155 gaskets - must order gaskets separately
- Base Number: 7153
- Callout Name: 7153
$60.63 $43.641
$18.18 $12.551
F6TZ-7034-BA
VENT ASY. (CASE)Valve Assy - Vent- Vent - jiggle cap style, YC2P-E*;1C2P-A*,B*,D*
- Base Number: 7034
- Callout Name: 7034
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2002 Ford E-250 parts. Parts like Internal Parts - Case, Extension Housing & Related Parts are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L. Transmission: 4AT 4R70W.
