Genuine Mercury Grand Marquis Transfer Case Seal
Transfer Case Output Shaft Seal- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
5 Transfer Case Seals found
Mercury Grand Marquis Oil Seal Assembly
Part Number: E2DZ-7052-A$15.39 MSRP: $22.50You Save: $7.11 (32%)Ships in 1-3 Business Days
Mercury Grand Marquis Oil Seal Assembly
Part Number: 7W7Z-7052-A$18.72 MSRP: $26.67You Save: $7.95 (30%)Ships in 1 Business Day
Mercury Grand Marquis Oil Seal Assembly
Part Number: F7AZ-7052-A$18.72 MSRP: $26.67You Save: $7.95 (30%)Ships in 1 Business Day
Mercury Grand Marquis Oil Seal Assembly
Part Number: D5AZ-7052-A$18.24 MSRP: $26.67You Save: $8.43 (32%)Ships in 1-2 Business Days

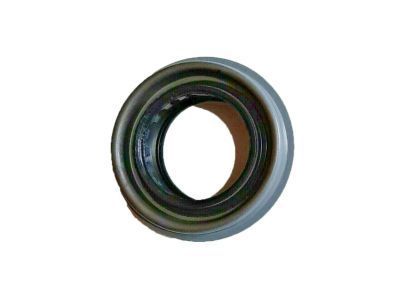

Mercury Grand Marquis Transfer Case Seal
The Mercury Grand Marquis Transfer Case Seal retains the lubricant in the transfer case so the gears can be cooled and oiled. This prepares them to respond to the transmission. The Transfer Case Seal is located within the housing where the driveshaft enters. It has a molded rubber lip that hugs the shaft to help keep fluids from leaking out. It will work even under heat and vibration. If you notice drops underneath your car, the Transfer Case Seal can be replaced by raising the car. Unbolt the driveshaft and remove the old ring by prying it out. Clean the bore, grease a new one, and realign the yoke marks before tightening everything back up. All model years share this part in essence. While early Grand Marquis applied ordinary nitrile, later Grand Marquis applied tougher synthetic rubber that provides better heat resistance and longer life. By conducting routine checks of the Mercury drivetrain for imperfections, a weeping Transfer Case Seal will be caught early, saving owners of Mercury Grand Marquis from costly damage. A new Transfer Case Seal for the transfer case is a simple and inexpensive precaution when high mileage occurs on a Mercury transmission.
We provide a wide range of Mercury Grand Marquis Transfer Case Seal at the optimal prices. If you need Mercury Grand Marquis Transfer Case Seal, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.
Mercury Grand Marquis Transfer Case Seal Parts Questions & Experts Answers
- Q: How to replace the Transfer Case Seal on the Mercury Grand Marquis?A:Leakages are usually caused by wear of extension housing oil seal and bushing, speedometer drive gear oil seal and O-ring. These seals can be replaced with ease most of the times without the need for the transmission to be unmounted from the car. The extension housing oil seal is placed at the rear extension housing area where the driveshaft joins with the transmission. Where there is suspicion of leakage, the vehicle should be jacked up and properly supported in order to gain access to the underside of the car. Some signs of a leaking seal are: transmission lubricant on the driveshaft and there can also be dripping from the back of the transmission. To replace the oil seal, it is necessary to pull out the driveshaft, then the oil seal can be pulled out with a screwdriver or pry bar, being very careful not to harm the splines of the transmission output shaft. If required, then Konmaru Special Oil Seal Remover can be employed for its removal as aforesaid. A sector of pipe or deep socket can also be used to install new oil seal guaranteeing that this is driven squarely and to the end. The splines of the output shaft of the transmission and the outer periphery of the sleeve yoke should be lubricated with light lubricants before the reinsertion of the driveshaft to prevent the damaging of the new lip seal. In the case of the speedometer driven gear housing or vehicle speed sensor mounted on the side of the extension housing, the speedometer cable or electrical connector is disconnected first, then the hold down bolt. Dipping a finger in transmission oil around the cable housing is a sign of compromise on the seal or O-ring. The seal can be pulled out with a hooked tool, when reassembling the driven gear housing and cable assembly a new O-ring should be placed into the driven gear housing .
