Question 1

How to Check the Shock Absorber and CV Boot on Your Ford F-150?

Accepted Answer

Regular checks of the steering linkage and suspension are vital for vehicle performance and safety. Worn or damaged components can cause tire wear, poor handling, and reduced fuel economy. To assess shock absorbers, park on level ground, turn off the engine, and set the parking brake. Check tire pressures and push down on each corner, observing movement and rebound. Proper shock absorbers should bring the vehicle to rest in a level position within one or two bounces. Inspect for fluid leakage and secure mounting. Visually examine steering and suspension components for damage, leaks, and loose bushings. Check the steering system for movement at the knuckle-to-control arm balljoint. Test for play in the steering system components. Regularly inspect CV boots for tears, cracks, and loose clamps. Clean CV Boot to prevent deterioration and replace if damaged.

Question 2

How to perform an inner CV Boot replacement disassembly on Ford Ranger?

Accepted Answer

For 1998 and later 4WD models equipped with Constant Velocity (CV) joint type driveaxle assemblies, the inboard tripod design CV joint and CV Boot are serviceable units, while the outer CV joint must be replaced as an assembly. To begin disassembly, remove the driveaxle from the vehicle and mount it in a vise, ensuring the jaws are lined with wood or rags to prevent damage. Cut and discard the boot clamps from the inner boot, then slide the boot toward the center of the shaft. Bend the retaining tabs slightly to facilitate tripod removal, then detach the tripod assembly from the outer race. Move the inner stop ring down the shaft about 1/2-inch, then slide the tripod down until the circlip is visible, remove the circlip, and take off the tripod assembly. Inspect the tripod rollers, roller bearings, and races for damage, as worn tripods cannot be rebuilt. Remove the inner stop ring and the old CV Boot, then for reassembly, slide a new clamp and inner CV joint boot onto the axleshaft, install a new inner stop ring, and attach the tripod assembly with the chamfered side inward. Push the tripod assembly down far enough to install the new circlip, then secure the tripod assembly with the inner stop ring. Fill the outer race with CV joint grease, applying some inside the CV Boot, and push the tripod assembly into the outer race, bending the retaining tabs back to their original shape. Wipe excess grease from the axle CV Boot groove, seat the CV Boot in the recessed area, and install the clamp. Equalize the pressure in the CV Boot by inserting a dull screwdriver between the CV Boot and outer race, then install the CV Boot clamp using special clamp-crimping pliers. Install a new clip on the stub axle and the driveaxle. For the outer CV joint, if any damage or excessive wear is present, the driveaxle and outer CV joint assembly must be replaced. If the CV joint is deemed serviceable, remove the inner CV joint and CV Boot, cut the CV Boot clamps, detach the CV Boot from the CV joint, and check the grease for contamination. If the grease is gritty, the CV joint must be replaced; otherwise, clean the CV joint with solvent and a soft bristle brush, ensuring all traces of solvent are removed. Inspect the cage, balls, and races for wear or damage, then install the new outer CV Boot and clamps onto the driveaxle shaft, packing the CV joint with grease and spreading the remaining grease inside the CV Boot. Finally, position the outer CV Boot on the CV joint, tighten the clamps, assemble the inner CV joint and CV Boot, and install the driveaxle.

Question 3

How to remove and reassemble CV boots on the Ford Fusion?

Accepted Answer

If the CV joints are worn, which suggests that an overhaul is necessary, investigate all the alternatives available before starting the job as it may be useful to know that full rebuilt CV Boots are available on an exchange basis and will therefore prove quicker and less complicated. Some auto parts stores sell split type replacement boots that are easy to install without having to withdraw the CV Boot from the car, but should this be done we suggest that one pulls out the CV Boot and disassembles the CV joint to ensure that it is clean of contaminants that hasten wear. This would apply to any models with ABS check the sensor rings on the outer CV joints. Starting with the removal of the CV Boot followed by clamping of the axle in a vise with soft jaw. Lop off and eject the boot clamps and then draw the boot away from the inner CV joint and remove the joint housing to show the connection between the tri-pod and the outer race. Put a mark on the tri-pod and axleshaft using a center punch, in order to ensure reassembly is done properly, pull the ends of the stop-ring in order to free the retainer clip and remove it from the axleshaft. Hammer and brass punch out the tri-pod joint from the CV Boot without damaging the bearing surfaces of the metal. Scrub the outer race and the tri-pod bearing assembly for the old grease, check for wear if any that requires replacement. For reassembly, put the clamps and boot onto the axleshaft, cover the splines with tape so that they cannot mar the shaft. Replace a new stop-ring without fitting it into the groove, placing the tri-pod on the shaft and the arrow mark should align, fit a new bearing retainer clip. Use CV joint grease on the tri-pod assembly, the joint housing and on the boot, push the boot in to place, and balance the pressure inside. Tighten the boot clamps properly so that correct measures have to be taken for the same. In the same way, for the outer CV joint, remove the boot clamps, tap lightly on the CV joint housing to detach it, and clean all of them. That's why make sure to look for signs of wear and, if any, change the entire CV Boot assembly in its entirety. When refitting, fit a new sealing boot clamp and a sealing boot over the axleshaft, fit a new clip to the bearing of the outer CV joint and fill with grease. To ensure that the splines are correctly intermeshed, the CV joint is then slid over the axleshaft; after which, the boot is fitted before equalizing the pressure. Last but not the least secure the boot clamps and put the CV Boot back to its position. For AWD models, follow the basic procedure just discussed but for both the inner and outer CV joints, also use proper procedures for their boots while observing maximum care to enable the CV joints to function properly and for a long time.

Genuine Ford CV Boot

150 CV Boots found

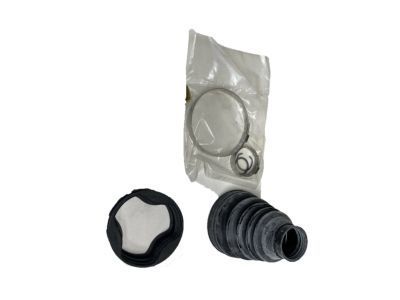

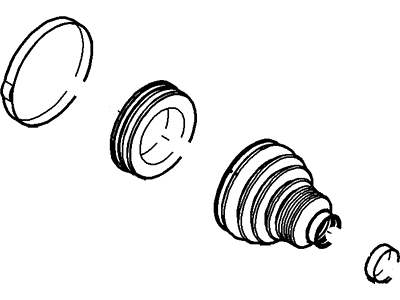

Ford Boot Kit

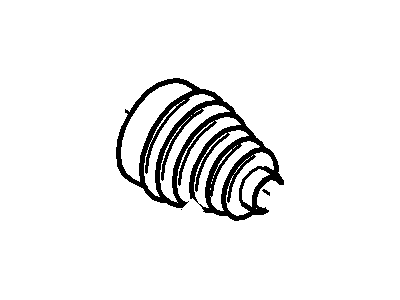

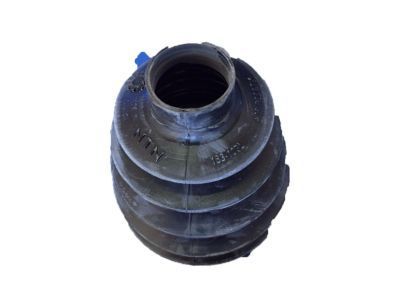

Ford Boot

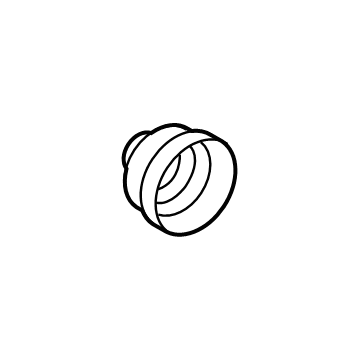

Ford Boot

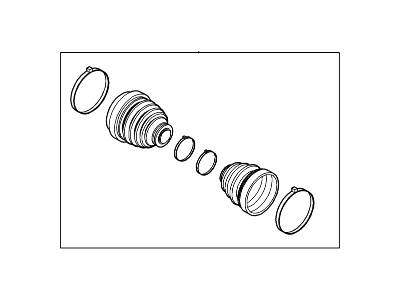

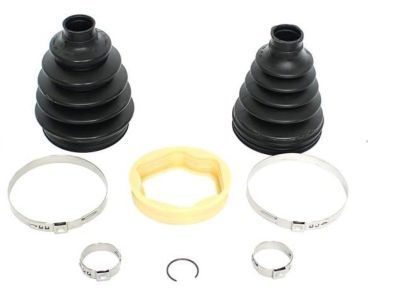

Ford Boot Kit

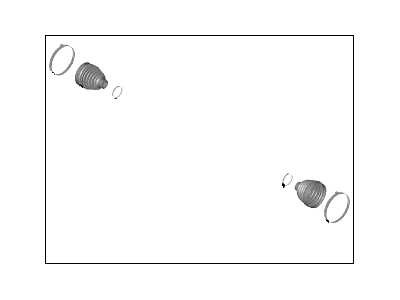

Ford Boot Kit

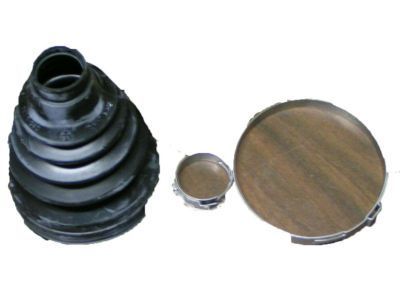

Ford Kit

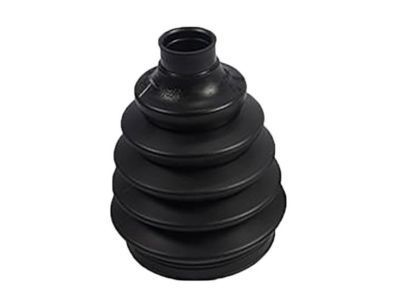

Ford Boot

Ford Boot Kit

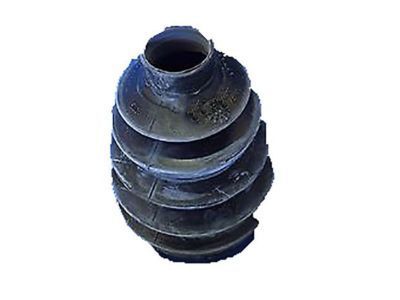

Ford Boot

Ford Boot Kit

Ford Kit

Ford Kit

Ford Boot

Ford Boot Kit

Ford Boot

Ford Boot

Ford Kit

Ford Boot Kit

Ford Boot

Ford Boot
