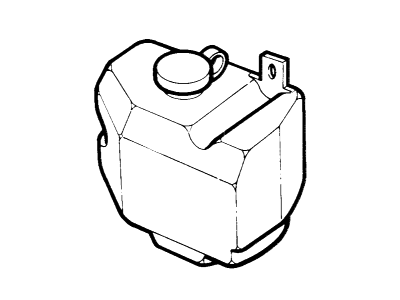

Ford E4UZ-17618-A Reservoir - Water

Remove the wiring connector plug and washer hose, then undo and remove the retaining screws to lift the washer and motor assembly away from the left-hand side fender apron. To take out the pump motor from the reservoir, pry out the retaining ring and carefully pull the motor out of the reservoir recess. The motor and pump assembly cannot be repaired, so if faulty, it must be replaced with a new unit. When refitting the motor into the reservoir, ensure the projection on the motor body is aligned with the slot in the reservoir. Finally, press on the motor retaining ring and refit the reservoir assembly to the car using the reverse procedure of removal.
