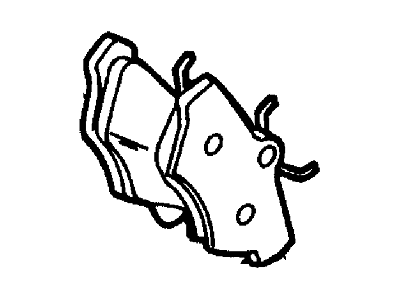

Ford F5AZ-2001-A Kit - Brake Shoe

You can Select Your Vehicle to check if F5AZ-2001-A fits your vehicle.

To replace the brake pads, first remove the cover from the brake fluid reservoir and siphon out about 1/2 of the brake fluid. Then, loosen the wheel lug nuts, raise the vehicle on jackstands, and remove the wheels. Proceed to work on one brake assembly at a time, inspecting the brake disc carefully. For 1970 and 1971 models, remove the master cylinder cap, check the fluid level, and remove about half of the fluid. Remove the inner shoe hold-down clips, outer brake pad retaining clips, caliper locating pins, and upper stabilizer. Lift the caliper assembly from the anchor plate, remove the outer pad, and depress the piston into the caliper with a C-clamp. For 1972 through 1979 models, follow the specific steps for pad replacement. For 1980 and later models, depress the caliper piston with a C-clamp, remove the caliper and old pads, and install the new pads. Reinstall the caliper and tighten the caliper bolts to the specified torque. Firmly depress the brake pedal a few times to bring the pads into contact with the disc and check the brake fluid level. For 1998 and later models with two-piston front calipers, follow specific pad replacement advice. For rear disc brake pads, depress the caliper piston, remove the old pads, and install the new ones, making sure they are fully seated. Finally, reinstall the caliper and tighten the caliper bolts to the specified torque.
