How to replace the wiper motor and windshield washer reservoir or washer pump on Ford Taurus?

As of 2008 models, start by disconnecting the battery's negative terminal cable. Note down where the wiper arms connect to the linkage shafts. Then you can remove their nuts. Start by unscrewing the plastic cowl covering, and get rid of the three bolts that connect the wiper linkage piece. Pull up slightly to separate the electric connector, then take away entire wiper-bulge assembly, including hard parts. Pull out the three bolts that hold the motor and the metal bar on the linkage arm. Take care to have the motor in the parking position before taking out the metal bar. Use your trim removal tool or screwdriver to carefully pull the linkage away from the motor's crank arm. Put the new motor back on the linkage, make sure all the bolts are tight, connect the electricity correctly, all the while keeping tools and extra stuff away. Before removing anything else, rotate the wipers with the ignition on so the motor moves to its parking position. After putting everything back in its place, adjust the wiper arms: position the passenger blade 1.5 inches high and the driver's blade 2 inches high. Hit the switch once more to view how well the wipers align. Adjust them if needed. To get at the washer reservoir or pump for replacement, take off the lower front air deflector shield and right side inner fender splash shield. Pull off the fluid sensor and washer pump connections, then unplug the washer pump and let the tank empty of fluid. Take off the bottom screw holding the reservoir, the two round washers, and then carefully lift the reservoir directly from below. If the washer pump needs replacing, remove the damaged rubber grommet that keeps it in place along the tank. Installation is the reverse of removal.

Genuine Ford Taurus Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Wiper Motors found

View related parts
Ford Taurus Wiper Motor Assembly
Part Number: DG1Z-17508-A
$281.93 MSRP: $423.64
You Save: $141.71 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Taurus | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: 8G1Z-17508-A
$117.12 MSRP: $160.03
You Save: $42.91 (27%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2012 Ford Taurus | 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, CVT Select Shift Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: F8OZ-17508-BA
$105.80 MSRP: $144.56
You Save: $38.76 (27%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6F1Z-17508-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2007 Ford Taurus | 6 Cyl 3.0L | 4AT 4F50N, 4AT AX4N, 4AT AX4S
View related parts
Ford Taurus WPR MOTOR
Part Number: E6DZ17508B
$105.71 MSRP: $144.45
You Save: $38.74 (27%)
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1986 Ford Taurus | 4 Cyl 2.5L, 6 Cyl 3.0L | 3AT ATX, 4AT AXOD, 5MT
View related parts

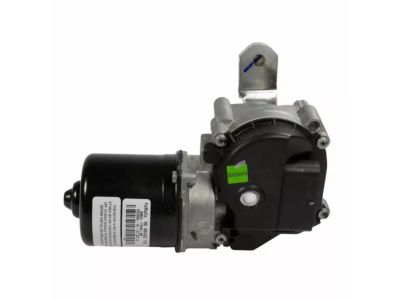

Ford Taurus Wiper Motor Assembly
Part Number: 8A5Z-17508-A
Product Specifications
- Other Name: Motor Assy - Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Taurus | 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: F6DZ-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6U2Z-17V508-SARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-1999 Ford Taurus | 6 Cyl 3.0L, 8 Cyl 3.4L | 4AT AX4N, 4AT AX4S
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: 6W1Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6L1Z-17508-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Taurus | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F50, CVT Select Shift Transmission, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: 2F1Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper
- Manufacturer Note: Rear wiper motor
- Replaced by: 4F1Z-17508-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2003 Ford Taurus | 6 Cyl 3.0L | 4AT 4F50N, 4AT AX4S
View related parts
Ford Taurus Kit
Part Number: F4DZ-17V508-CRM
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1995 Ford Taurus | 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.2L, 6 Cyl 3.8L | 4AT AX4N, 4AT AX4S, 4AT AXOD, 4AT AXOD-E, 5MT
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: F4DZ-17V508-BRM
Product Specifications
- Other Name: Motor Assy - Wiper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1995 Ford Taurus | 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.2L, 6 Cyl 3.8L | 4AT AX4N, 4AT AX4S, 4AT AXOD, 4AT AXOD-E, 5MT
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: F4DZ-17V508-ARM
Product Specifications
- Other Name: Motor Assy - Wiper; Motor, Rear Motor, Wiper Motor
- Manufacturer Note: Rear window wiper, reman wiper motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1995 Ford Taurus | 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.2L, 6 Cyl 3.8L | 4AT AX4N, 4AT AX4S, 4AT AXOD, 4AT AXOD-E, 5MT
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: F4DZ-17508-A
Product Specifications
- Other Name: MOTOR ASY - WIPER
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1986-1995 Ford Taurus | 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.2L, 6 Cyl 3.8L | 3AT ATX, 4AT AX4N, 4AT AX4S, 4AT AXOD, 4AT AXOD-E, 5MT
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: 4F1Z-17508-AB
Product Specifications
- Other Name: Motor Assy - Wiper
- Manufacturer Note: Windshield wiper, Motor and drive assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004 Ford Taurus | 6 Cyl 3.0L | 4AT 4F50N
View related parts
Ford Taurus Wiper Motor Assembly
Part Number: 4F1Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper; Rear Motor, Wiper Motor
- Manufacturer Note: Rear wiper motor
- Replaces: 2F1Z-17508-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2005 Ford Taurus | 6 Cyl 3.0L | 4AT 4F50N, 4AT AX4S

Ford Taurus Wiper Motor

The Wiper Motor in Ford Taurus cars works to control the wiper of the car so that it can wipe the water and dirt on the wind Shields so as to enhance visibility of the road. Pieced to this electric motor, it rotates at different speeds and this helps the drivers to vary the wiper movement as needed depending on the prevailing weather conditions. Some may have Refurbished Wiper Motors while others may come with new Wiper Motors. New motors are purchased directly from manufacturers, whereas remanufactured motors are used ones which are replaced with new parts in order to produce efficient performance. The difference between these types mainly stems from the condition and the degree of repair work that has been done in the new motors come with modern technology while the refurbished motors are available at lower costs. In general, the Wiper Motor is amongst the most essential systems to ensure safety and visibility of the Ford Taurus cars.

We provide a wide range of Ford Taurus Wiper Motor at the optimal prices. If you need Ford Taurus Wiper Motor, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Taurus Wiper Motor Parts Questions & Experts Answers

Wiper Motor Assembly
DG1Z-17508-A
Q: How to replace the wiper motor and windshield washer reservoir or washer pump on Ford Taurus?
A:
As of 2008 models, start by disconnecting the battery's negative terminal cable. Note down where the wiper arms connect to the linkage shafts. Then you can remove their nuts. Start by unscrewing the plastic cowl covering, and get rid of the three bolts that connect the wiper linkage piece. Pull up slightly to separate the electric connector, then take away entire wiper-bulge assembly, including hard parts. Pull out the three bolts that hold the motor and the metal bar on the linkage arm. Take care to have the motor in the parking position before taking out the metal bar. Use your trim removal tool or screwdriver to carefully pull the linkage away from the motor's crank arm. Put the new motor back on the linkage, make sure all the bolts are tight, connect the electricity correctly, all the while keeping tools and extra stuff away. Before removing anything else, rotate the wipers with the ignition on so the motor moves to its parking position. After putting everything back in its place, adjust the wiper arms: position the passenger blade 1.5 inches high and the driver's blade 2 inches high. Hit the switch once more to view how well the wipers align. Adjust them if needed. To get at the washer reservoir or pump for replacement, take off the lower front air deflector shield and right side inner fender splash shield. Pull off the fluid sensor and washer pump connections, then unplug the washer pump and let the tank empty of fluid. Take off the bottom screw holding the reservoir, the two round washers, and then carefully lift the reservoir directly from below. If the washer pump needs replacing, remove the damaged rubber grommet that keeps it in place along the tank. Installation is the reverse of removal.
