How to remove the A/C Switch control assembly in the Ford F-250?

To remove the A/C Switch in 1991 and earlier models, disconnect the negative battery cable, remove control knobs, screws retaining the top of the instrument panel center finish panel, and the finish panel itself. Then, remove knobs from the A/C Switch, take out the ashtray and ashtray bracket, and remove four screws securing the instrument panel to the A/C Switch. Disconnect wiring harness connectors from the blower switch, panel illumination light, and auxiliary fuel tank switch or rear window switch, and detach control cables. Remove the A/C Switch by undoing the spring nuts retaining each control cable pigtail to the control lever arms. For 1992 and later models, disconnect the negative battery cable, remove the trim strip above the A/C Switch and glove box door, pull the center finish panel away, and remove screws attaching the A/C Switch to the instrument panel. Then, pull out the A/C Switch to disengage electrical connectors, disconnect the vacuum harness, release the temperature control snap-in flange, and finally, rotate and remove the A/C Switch. The installation process is the reverse of removal in both cases.

Genuine Ford F-250 A/C Switch

Air Conditioning Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 A/C Switches found

View related parts

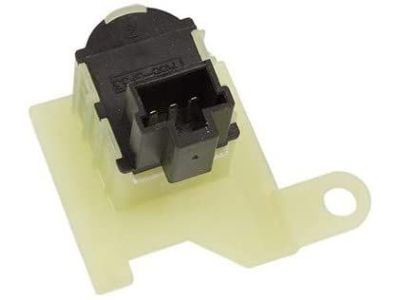

Ford F-250 Switch Assembly
Part Number: F2DZ-19986-A
$33.43 MSRP: $49.82
You Save: $16.39 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: SWITCH ASY
- Replaced by: F4DZ-19986-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1997 Ford F-250 | 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L, 8 Cyl 7.3L, 8 Cyl 7.5L | 3AT C6, 4AT 4R70W, 4AT AOD, 4AT E4OD, 4MT, 5MT
View related parts

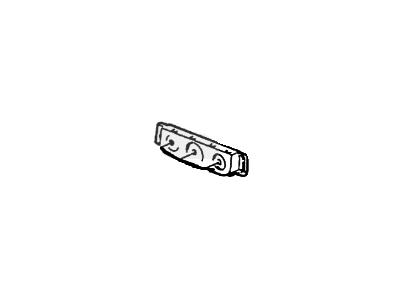

Ford F-250 Potentiometer Assembly
Part Number: F65Z-19C733-AA
$22.34 MSRP: $35.64
You Save: $13.30 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Potentiometer Assy
- Replaced by: F85Z-19C733-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1998 Ford F-250 | 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 4AT 4R100, 4AT 4R70W, 4AT E4OD, 5MT
View related parts

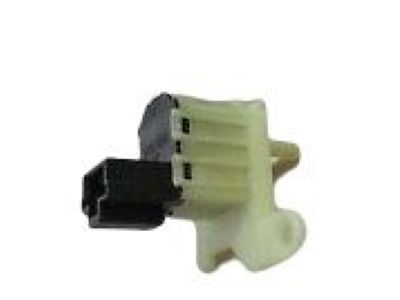

Ford F-250 Potentiometer Assembly
Part Number: F85Z-19C733-AA
$22.93 MSRP: $35.64
You Save: $12.71 (36%)
Product Specifications
- Other Name: Potentiometer Assy; Temperature Control Switch
- Replaces: F65Z-19C733-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1999 Ford F-250 | 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 4AT 4R100, 4AT 4R70W, 4AT E4OD, 5MT
View related parts
Ford F-250 Control
Part Number: XL3Z-19980-AA
Product Specifications
- Replaced by: 2L3Z-19980-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Ford F-250 | 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-250 Switch Assembly
Part Number: E53Z-19986-A
Product Specifications
- Other Name: Switch Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1987-1988 Ford F-250 | 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L, 8 Cyl 6.9L, 8 Cyl 7.3L, 8 Cyl 7.5L | 3AT C6, 3MT, 4AT AOD, 4MT, 5MT
View related parts
Ford F-250 Switch Assembly
Part Number: D5AZ-19986-A
Product Specifications
- Other Name: Switch Assy; Blower Motor Switch
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1980-1991 Ford F-250 | 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L, 8 Cyl 6.6L, 8 Cyl 6.9L, 8 Cyl 7.3L, 8 Cyl 7.5L | 3AT C6, 3MT, 4AT AOD, 4AT E4OD, 4MT, 5MT
View related parts
Ford F-250 Heater Control Assembly
Part Number: XL3Z-18549-AA
Product Specifications
- Other Name: Control Assy - Heater
- Manufacturer Note: Control nameplate - LED green (corporate)
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Ford F-250 | 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-250 Control
Part Number: F65Z-19980-AB
Product Specifications
- Other Name: Dash Control Unit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1998 Ford F-250 | 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 4AT 4R100, 4AT 4R70W, 4AT E4OD, 5MT

Ford F-250 A/C Switch

As the essential part of the climate control system the Ford F-250 A/C Switch has gained a reputation for reliability and superior performance. The essential component allows drivers to stay comfortable inside their vehicle even when weather outside changes. Truck owners can benefit from using the Ford F-250 A/C Switch because this component supports multiple F-250 models to enable efficient maintenance and safety systems. Through its efficient temperature process regulation the A/C Switch provides automobile drivers with enhanced control over their interior warmth. The user-friendly interface of the Ford F-250 A/C Switch consists of fashionable buttons and dials which simplify control operations. The time spent on design details results in better functionality alongside enhanced beauty of the truck interior design. The Ford F-250 A/C Switch operates flawlessly with the Climate Control Module to deliver reliable performance. This feature distinguishes the product within automotive markets because it adjusts blower motor speeds according to monitored temperatures thus creating an efficient climate control experience. The Ford car A/C Switch emerges as an essential truck element which provides improved performance and safety capabilities for the the automaker model making it crucial to this legendary model.

We provide a wide range of Ford F-250 A/C Switch at the optimal prices. If you need Ford F-250 A/C Switch, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford F-250 A/C Switch Parts Questions & Experts Answers

Switch Assembly
D5AZ-19986-A
Q: How to remove the A/C Switch control assembly in the Ford F-250?
A:
To remove the A/C Switch in 1991 and earlier models, disconnect the negative battery cable, remove control knobs, screws retaining the top of the instrument panel center finish panel, and the finish panel itself. Then, remove knobs from the A/C Switch, take out the ashtray and ashtray bracket, and remove four screws securing the instrument panel to the A/C Switch. Disconnect wiring harness connectors from the blower switch, panel illumination light, and auxiliary fuel tank switch or rear window switch, and detach control cables. Remove the A/C Switch by undoing the spring nuts retaining each control cable pigtail to the control lever arms. For 1992 and later models, disconnect the negative battery cable, remove the trim strip above the A/C Switch and glove box door, pull the center finish panel away, and remove screws attaching the A/C Switch to the instrument panel. Then, pull out the A/C Switch to disengage electrical connectors, disconnect the vacuum harness, release the temperature control snap-in flange, and finally, rotate and remove the A/C Switch. The installation process is the reverse of removal in both cases.
