How to remove and install the shift cable on Ford Excursion?

To change shift cable out and put new one in, this cable needs to be disconnected from the steering column shift tube lever and the steering column bracket, in addition to that the rubber grommet and the shift cable must be passed through the firewall. Lift the car and then support it using jackstands, then unscrew the shift cable from the manual lever positioned near the transmission and from the cable bracket also. The procedure of installation is the same as the removal process only that extra caution is taken to ensure the cable is well fixed before being reconnected to the manual lever. For adjustment work inside the vehicle with the shift lever in the drive position then lift the vehicle and support on jack stands. With the shift cable disconnected from the manual lever, unlock the lock tab that is in the shift cable to another position, shift the manual lever to First gear and then back it two detents to Drive before reconnecting the shift cable. Secure the shift cable locking tab, remove the jackstands and drop the vehicle. Last, shift through all gear through the indicated positions with shift lever and check the actual position at needle on the manual lever to ensure that the engine star only in Park & Neutral, back-up light comes on when shift lever is in Reverse. If these conditions are not met it is necessary to fulfill them and it may be required to adjust the transmitted range sensor.

Genuine Ford Excursion Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Shift Cables found

View related parts

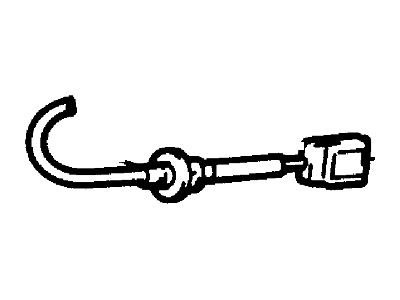

Ford Excursion Automatic Transmission Shift Cable For
Part Number: XC3Z-7E395-CA
$55.18 MSRP: $80.67
You Save: $25.49 (32%)
ADD TO CART
Product Specifications
- Other Name: Cable Assy - Selector Lever Control
- Manufacturer Note: 7.3L/4R100 - without P.T.O.
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2004 Ford Excursion | 8 Cyl 5.4L, 8 Cyl 6.0L, 8 Cyl 7.3L | 4AT 4R100
View related parts

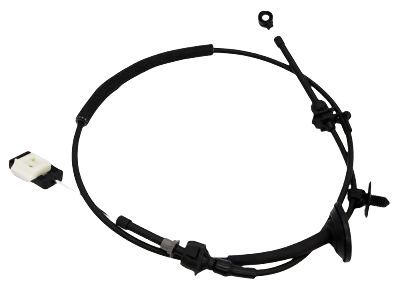

Ford Excursion Selector Lever Control Cable Assembly
Part Number: XC3Z-7E395-DA
$53.94 MSRP: $77.50
You Save: $23.56 (31%)
ADD TO CART
Product Specifications
- Other Name: Cable Assy - Selector Lever Control
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2005 Ford Excursion | 10 Cyl 6.8L, 8 Cyl 5.4L, 8 Cyl 6.0L, 8 Cyl 7.3L | 4AT 4R100
View related parts

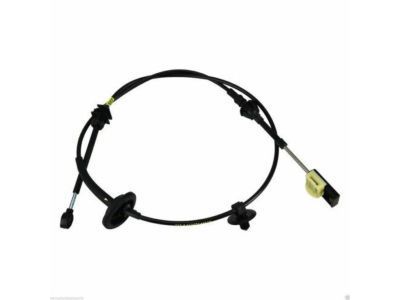

Ford Excursion Selector Lever Control Cable Assembly
Part Number: 3C3Z-7E395-EA
$56.66 MSRP: $82.83
You Save: $26.17 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly - Selector Lever Control
- Manufacturer Note: #3C3P 7E395 EA, TorqShift
- Replaces: 3C3Z-7E395-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford Excursion | 8 Cyl 6.0L | 4AT 4R100
View related parts
Ford Excursion Selector Lever Control Cable Assembly
Part Number: 3C3Z-7E395-AA
$56.66 MSRP: $82.83
You Save: $26.17 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly - Selector Lever Control
- Manufacturer Note: #3C3P 7E395 AA,AB,DA,DB, TorqShift
- Replaced by: 3C3Z-7E395-EA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003 Ford Excursion | 8 Cyl 6.0L | 4AT 4R100

Ford Excursion Shift Cable

The Ford Excursion Shift Cable is a part that allows the driver to select gears properly. In more detail, it connects the column or floor lever to the transmission. Likewise, it uses a strong steel core that moves inside a low friction sleeve. When the driver moves the shifter, that movement is translated into corresponding movement in the transmission, allowing gear selection. The column shifter of early Excursion editions was paired with a single Shift Cable routed through the firewall to the transmission manual lever. This saves space on the dash as well as more vibration isolation compared to a rigid rod. Over the years, Ford made updates to the system to suit changing interiors. When console buckets arrived, the same Shift Cable design was adapted to suit a floor shifter still with a button gate plus ignition brake interlock for safety. In later Excursion years, the mechanical Shift Cable was retained. In addition, electronic safeguards were added that do not allow movement out of Park until the brake pedal is pressed. The Shift Cable can stretch if overworked, and replacement usually restores crisp selection. The effort that Ford has taken in creating these evolutions instills confidence in Ford drivers, and it keeps the big Excursion easy to control in any driving situation.

We provide a wide range of Ford Excursion Shift Cable at the optimal prices. If you need Ford Excursion Shift Cable, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Excursion Shift Cable Parts Questions & Experts Answers

Automatic Transmission Shift Cable For
XC3Z-7E395-CA
Q: How to remove and install the shift cable on Ford Excursion?
A:
To change shift cable out and put new one in, this cable needs to be disconnected from the steering column shift tube lever and the steering column bracket, in addition to that the rubber grommet and the shift cable must be passed through the firewall. Lift the car and then support it using jackstands, then unscrew the shift cable from the manual lever positioned near the transmission and from the cable bracket also. The procedure of installation is the same as the removal process only that extra caution is taken to ensure the cable is well fixed before being reconnected to the manual lever. For adjustment work inside the vehicle with the shift lever in the drive position then lift the vehicle and support on jack stands. With the shift cable disconnected from the manual lever, unlock the lock tab that is in the shift cable to another position, shift the manual lever to First gear and then back it two detents to Drive before reconnecting the shift cable. Secure the shift cable locking tab, remove the jackstands and drop the vehicle. Last, shift through all gear through the indicated positions with shift lever and check the actual position at needle on the manual lever to ensure that the engine star only in Park & Neutral, back-up light comes on when shift lever is in Reverse. If these conditions are not met it is necessary to fulfill them and it may be required to adjust the transmitted range sensor.
