How to remove and install the rear Steering Knuckle on a Ford Edge?

Before beginning the disassembly, with the full weight of the vehicle on the ground, take a measurement from the center of the rear hub to the lower edge of the bodywork at the top of the wheel opening. This measurement is the normal ride height of the vehicle and will be used when re-assembling the rear suspension components. Measure and record the ride height. Loosen the rear wheel lug nuts. Raise the rear of the vehicle and support it securely on jack stands, then remove the wheel. Support the lower control arm with a floor jack. Remove the brake caliper but leave the brake line attached. Use wire to support the caliper and position it to the side. Remove the hub and bearing assembly. Disconnect the lower end of the shock absorber from the knuckle. Detach the outer end of the upper control arm from the knuckle. Detach the toe link from the knuckle. Detach the trailing arm from the knuckle. Remove the lower arm-to-knuckle bolt, then use a ball joint separator or other puller to detach the knuckle from the lower arm. Installation is the reverse of the removal procedure, tightening all suspension fasteners to the torque values with the suspension at normal ride height. This can be simulated by raising the suspension with the floor jack. Tighten the brake fasteners to the torque values. If you're working on an all-wheel drive model, tighten the drive axle/hub nut(s) to the torque. Install the wheel and lug nuts, then lower the vehicle. Tighten the lug nuts to the torque.

Genuine Ford Edge Steering Knuckle

Front Steering Knuckle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Steering Knuckles found

View related parts

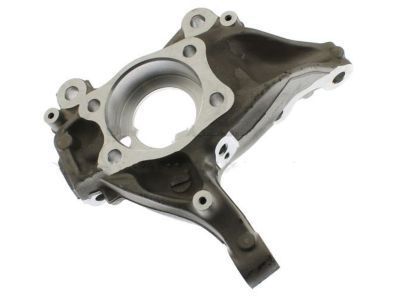

Ford Edge Front Wheel Knuckle
Part Number: BT4Z-3K185-A
$140.58 MSRP: $240.00
You Save: $99.42 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel; Knuckle
- Position: Passenger Side
- Replaces: 7T4Z-3K185-AR, 7T4Z-3K185-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Front Wheel Knuckle
Part Number: F2GZ-3K185-A
$162.33 MSRP: $274.55
You Save: $112.22 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel; Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts

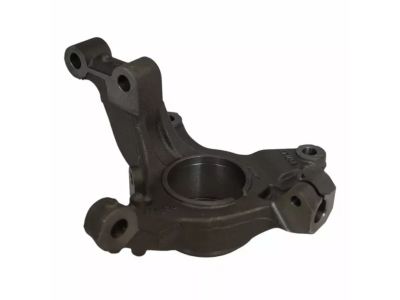

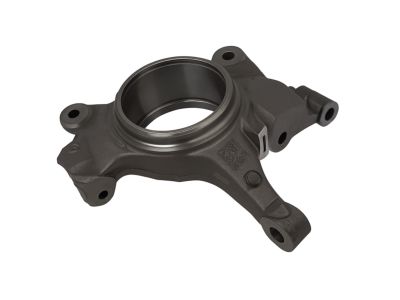

Ford Edge Front Wheel Knuckle
Part Number: 7T4Z-3K186-A
$124.70 MSRP: $202.00
You Save: $77.30 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel
- Position: Driver Side
- Replaced by: BT4Z-3K186-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Front Wheel Knuckle
Part Number: F2GZ-3K186-A
$169.48 MSRP: $274.55
You Save: $105.07 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel; Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Front Wheel Knuckle
Part Number: BT4Z-3K186-A
$124.70 MSRP: $202.00
You Save: $77.30 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel; Knuckle
- Position: Driver Side
- Replaces: 7T4Z-3K186-A, 7T4Z-3K186-AL
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Front Wheel Knuckle
Part Number: 7T4Z-3K185-AR
$141.90 MSRP: $240.00
You Save: $98.10 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel
- Position: Passenger Side
- Replaced by: BT4Z-3K185-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Front Wheel Knuckle
Part Number: 7T4Z-3K185-A
$141.90 MSRP: $240.00
You Save: $98.10 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel
- Position: Passenger Side
- Replaced by: BT4Z-3K185-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Front Wheel Knuckle
Part Number: 7T4Z-3K186-AL
$124.70 MSRP: $202.00
You Save: $77.30 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front Wheel
- Position: Driver Side
- Replaced by: BT4Z-3K186-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Edge Steering Knuckle

Steering Steering Knuckle of Ford Edge is one of the most important assemblies related with the connection of suspension and steering systems to front wheels. It has flanges on which control arms, tie rods, and end linkages, spindles or hubs are secured. This is because knuckle enables the wheels to perform an up and down movement in relation to shocks and a side to side motion due to turning. Different types of steering knuckles may be used Ford Edge depending on its type whether rear-wheel drive or front/all-wheel drive. The principal application of the knuckle is to maintain the wheel sturdiness to allow it to turn in a controlled manner through the suspension and steering mechanisms.

We provide a wide range of Ford Edge Steering Knuckle at the optimal prices. If you need Ford Edge Steering Knuckle, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Edge Steering Knuckle Parts Questions & Experts Answers

Front Wheel Knuckle
BT4Z-3K185-A
Q: How to remove and install the rear Steering Knuckle on a Ford Edge?
A:
Before beginning the disassembly, with the full weight of the vehicle on the ground, take a measurement from the center of the rear hub to the lower edge of the bodywork at the top of the wheel opening. This measurement is the normal ride height of the vehicle and will be used when re-assembling the rear suspension components. Measure and record the ride height. Loosen the rear wheel lug nuts. Raise the rear of the vehicle and support it securely on jack stands, then remove the wheel. Support the lower Control Arm with a floor jack. Remove the brake caliper but leave the brake line attached. Use wire to support the caliper and position it to the side. Remove the hub and bearing assembly. Disconnect the lower end of the Shock Absorber from the knuckle. Detach the outer end of the upper control arm from the knuckle. Detach the toe link from the knuckle. Detach the Trailing Arm from the knuckle. Remove the lower arm-to-knuckle bolt, then use a ball joint separator or other puller to detach the knuckle from the lower arm. Installation is the reverse of the removal procedure, tightening all suspension fasteners to the torque values with the suspension at normal ride height. This can be simulated by raising the suspension with the floor jack. Tighten the brake fasteners to the torque values. If you're working on an all-wheel drive model, tighten the drive axle/hub nut(s) to the torque. Install the wheel and lug nuts, then lower the vehicle. Tighten the lug nuts to the torque.
