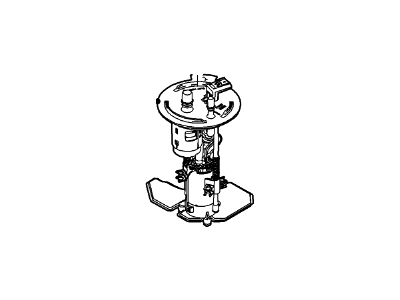

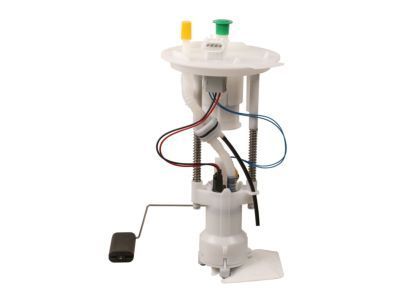

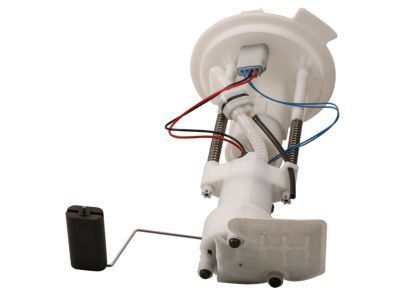

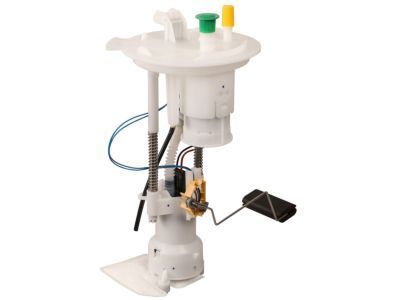

Ford 6L1Z-9H307-A Sender And Pump Assembly

You can Select Your Vehicle to check if 6L1Z-9H307-A fits your vehicle.

Unless the vehicle has been driven far enough to completely empty the tank, it's a good idea to siphon out the residual fuel before removing the fuel pump from the vehicle. Relieve the fuel pressure. Detach the cable from the negative terminal of the battery. Raise the vehicle and support it securely on jackstands. Remove the fuel tank from the vehicle. A special fuel pump line removal tool may be required to disconnect the fuel lines from the fuel pump. Use paint or a marking pen to highlight the alignment marks that are scribed into the fuel pump assembly and the fuel tank. Remove the mounting bolts from the fuel pump assembly. Expedition/Navigator models use a threaded retainer. Use channel locks or a special tool to remove the fuel pump assembly from the tank. Carefully pull the fuel pump assembly from the tank. Remove the old seal ring and discard it. If you're planning to reinstall the original fuel pump unit, remove the strainer by prying it off with a screwdriver, wash it in clean solvent, then push it back into place on the pump. If you're installing a new pump/sending unit, the assembly will include a new strainer. To separate the fuel pump from the assembly, remove the clamp and disconnect the electrical connector from the fuel pump. Remove the fuel pump mounting clamp bolt. Clean the fuel pump mounting flange and the tank mounting surface and seal ring groove. Installation is the reverse of removal. Apply a thin coat of heavy grease to the new seal ring to hold it in place during assembly.

Disconnect the fuel return line and check for blockage.
