6 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

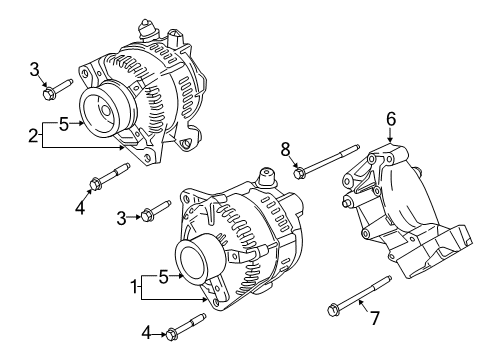

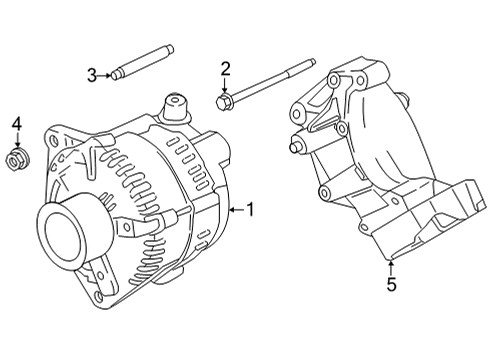

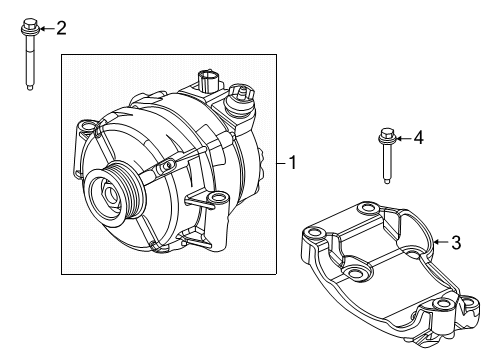

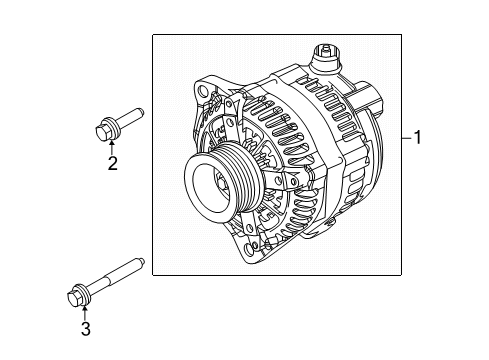

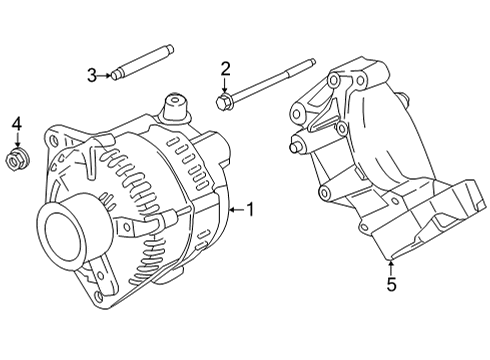

  • 1.Alternator - Alternator
    2022 Ford F-250 Super Duty Alternator Diagram 1
  • 2.Electrical - Alternator (6.2L)
    2022 Ford F-250 Super Duty Alternator Diagram 2
  • 3.Electrical - Alternator (6.7L,Dual Alternator)
    2022 Ford F-250 Super Duty Alternator Diagram 3
  • 4.Electrical - Alternator (6.7L,Single Alternator)
    2022 Ford F-250 Super Duty Alternator Diagram 4
  • 5.Electrical - Alternator (7.3L,Dual Alternator)
    2022 Ford F-250 Super Duty Alternator Diagram 5
  • 6.Electrical - Alternator (7.3L,Single Alternator)
    2022 Ford F-250 Super Duty Alternator Diagram 6
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description

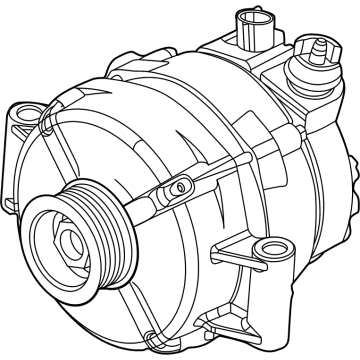

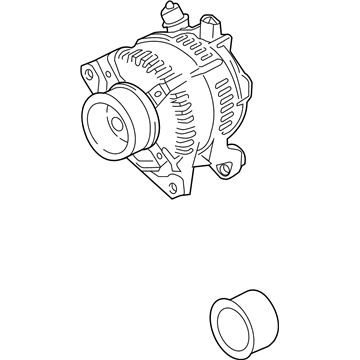

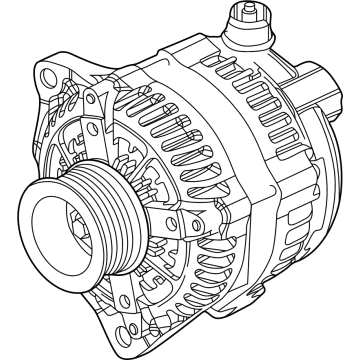

  • 1
    Ford HC3Z-10346-C
    Ford HC3Z-10346-C
    HC3Z-10346-C

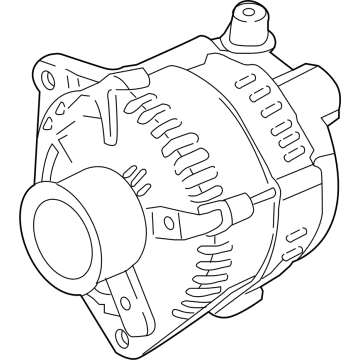

    Alternator
    • Part Notes: 6.7 Liter, Dual Alternator, Primary, 175 AMP;6.7 Liter, Single Alternator, 175 AMP;F250, F350; 6.7L Diesel; W/Dual Alternators; 175 AMP;F250, F350; 6.7L Diesel; W/O Dual Alternators; 175 AMP
    $654.55 $402.33
    1
    Add To Cart
  • 1
    Ford HC3Z-10346-F
    Ford HC3Z-10346-F
    HC3Z-10346-F
    Alternator
    • Part Notes: F250, F350; 6.7L Diesel; W/Dual Alternators; 157 AMP - Secondary
    $560.00 $344.44
    1
    Add To Cart
  • 1 Ford HC3Z-10346-A
    HC3Z-10346-A
    Alternator
    • Part Notes: 6.2 Liter, 150 AMP;F250, F350; 6.2L; 150 AMP
    $485.45 $285.93
    1
    Add To Cart
  • 1 Ford HC3Z-10346-E
    HC3Z-10346-E
    Alternator
    • Part Notes: 6.2 Liter, 200 AMP;F250, F350; 6.2L; 200 AMP
    $754.55 $463.55
    1
    Add To Cart
  • 1
    Ford HC3Z-10346-G
    Ford HC3Z-10346-G
    HC3Z-10346-G
    Alternator
    • Part Notes: 6.7 Liter, Dual Alternator, Primary, 220 AMP;6.7 Liter, Single Alternator, 220 AMP;F250, F350; 6.7L Diesel; W/Dual Alternators; 220 AMP;F250, F350; 6.7L Diesel; W/O Dual Alternators; 220 AMP
    $994.55 $605.46
    1
    Add To Cart

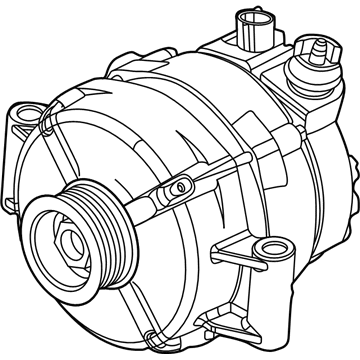

  • 1 Ford KC3Z-10346-A
    KC3Z-10346-A
    Alternator
    • Part Notes: 6.2 Liter, 240 AMP;F250, F350; 6.2L; 240 AMP; From 09/17/18
    $898.18 $546.01
    1
    Add To Cart
  • 1 Ford LC3Z-10346-B
    LC3Z-10346-B
    Alternator
    • Part Notes: 7.3 Liter, Dual Alternator, Primary;7.3 Liter, Single Alternator;F250, F350; 7.3L; W/Dual Alternators; Lower;F250, F350; 7.3L; W/O Dual Alternators
    $936.36 $569.19
    1
    Add To Cart
  • 1 Ford LC3Z-10346-C
    LC3Z-10346-C
    Alternator
    • Part Notes: 7.3 Liter, Dual Alternator, Secondary;F250, F350; 7.3L; W/Dual Alternators; Upper
    $778.18 $477.08
    1
    Add To Cart
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2022 Ford F-250 Super Duty parts. Parts like Alternator are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS.
