Fuel Injectors & Rails fit your 2005 Ford Excursion 8 Cyl 6.0L 4-Speed Automatic Transmission 4R100
Currently shopping for
2005 Ford Excursion
Change VehicleVehicle Options
8 Cyl 6.0L; 4-Speed Automatic Transmission 4R100Vehicle Options
8 Cyl 6.0L; 4-Speed Automatic Transmission 4R100Categories Close X
Currently selected
Fuel System & Manifolds
- Egr System
- Fuel Control Module, Sensor & Related Parts
- Fuel Filler Pipe Installation
- Fuel Filter & Related Parts
- Fuel Injection Pump
- Fuel Injectors & Rails
- Fuel Lines & Related Parts
- Fuel Lines - Engine
- Fuel Pump & Repair Kits
- Fuel Tank & Related Parts
- Manifold & Related Parts - Exhaust
- Manifold & Related Parts - Intake
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Automatic Transmission
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
How to use OE catalog
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- O RING (INJECTOR)
FOPZ-9229-A
Kit - "O" Ring- 10 O-rings per kit, gas; upper & lower
- Location: Upper And Lower
- Base Number: 9229
- Callout Name: 9229
$8.4410
3C3Z-9229-AA
Kit - "O" Ring- Injector O-ring kit, 6.0L
- Require Quantity: 8
- Package Quantity: 1
- Base Number: 9229
- Callout Name: 9229
$17.55 $10.761
5C3Z-9229-A
Kit - "O" Ring- IPR regulator O-ring kit. For O-ring kit with IPR screen use 3C3Z-9H529-A., 6.0L
- Require Quantity: 8
- Package Quantity: 1
- Base Number: 9229
- Callout Name: 9229
$10.80 $6.951
4C3Z-12A342-AA
PLUG GLOW (INTAKE MANIFOLD)Glow Plug- 20mm long, For engine serial numbers 6155637 and beyond (Indy built) & engine serial numbers 94581 & beyond (Huntsville built)., FROM 9-22-2003
- Fit Note: 8 Cyl 6.0L
- Require Quantity: 8
- Package Quantity: 1
- Base Number: 12A342
- Callout Name: 12A342
- Replaced By: 4C3Z-12A342-A
$33.64 $20.761
- RING/SEAL (INJECTION PUMP TO FITTING - SEALING)
3C3Z-9N693-EA
"O" Ring- #1838615-C1. 2.1 inches in dia. Also serviced in 9p458 assy., Oval gasket for 9P458
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$9.06 $6.891
3C3Z-9N693-A
"O" Ring- Complete seal kit that also comes with Oil Cooler asy. Contains all seals required to R&R Oil Cooler.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$103.69 $76.841
3C3Z-9N693-FA
"O" Ring- #1838618-C1. 34mm OD x 5mm thick. Also serviced in 9p458 assy., Round seal for 9P458
- Fit Note: 8 Cyl 6.0L
- Base Number: W302201
- Callout Name: 9N693
$8.62 $6.551
3C3Z-9N693-GA
"O" Ring- #1837800-C1. 14mm OD x 2mm thick. O-ring for ICP sensor
Seal for 9K024 on H/P pump cover - Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$6.94 $5.281
3C3Z-9N693-BA
"O" Ring- 14mm OD x 2mm thick. O-ring for plug on HP pump.
14mm OD x 2mm thick. O-ring for plug on fuel filter housing. - Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$5.88 $4.471
3C3Z-9N693-JA
"O" Ring- #1837889-C1. 10mm OD x 2mm thick. O-ring for cam position sensor
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9N693
- Replaced By: 3C3Z-9229-B
$16.73 $10.261
3C3Z-9N693-KA
"O" Ring- #1837799-C1. 14mm OD x 2mm thick. O-ring for ECT and EOP sensor
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$5.91 $4.491- 3C3Z-9N693-CA
"O" Ring- #1835339-C1. 22mm OD x 2mm thick. Also serviced in engine high pressure pump kit 9G804
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$18.75 $13.731
3C3Z-9N693-DA
"O" Ring- 21mm OD x 4mm. Seal between HP pump and engine block.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$7.77 $5.911
3C3Z-9N693-HA
"O" Ring- #1836505-C1. 11mm OD x 2mm thick. O-ring for cam position sensor
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9N693
- Replaced By: 3C3Z-9229-B
$16.73 $10.261- 3C3Z-9N693-LA
"O" Ring- #1837803-C1. 18mm OD x 2mm thick. O-ring for manifold air temp. sensor
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$18.75 $13.731
3C3Z-9N693-NA
"O" Ring- Seal inside fuel filter housing between 9T289 & 9C166.
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9N693
- Replaced By: -W301334
$16.20 $9.481
5C3Z-9A332-A
HOSE ASY. (FUEL HIGH PRESSURE MANIFOLD SUPPLY)Tube - Fuel Supply- Fit Note: 8 Cyl 6.0L
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 9A332
- Replaced By: 6E7Z-9A332-A
$113.67 $77.751
3C3Z-9F538-AA
SLEEVE (FUEL INJECTOR)Sleeve- Sleeve; Fuel injector. One(1) package consists of 4 pieces.Eight(8) pieces required per engine.One(1) required per injector.
- Fit Note: 8 Cyl 6.0L
- Require Quantity: 8
- Package Quantity: 4
- Base Number: 9F538
- Callout Name: 9F538
$5.58 $3.924
4C3Z-9E527-AA
NOZZLE AND HOLDER ASY. (FUEL INJECTOR)Nozzle Assy- Remanufactured, For engine serial numbers 6155637 and beyond(Indy built)& engine serial numbers 94581 and beyond(Huntsville built)
- Fit Note: 8 Cyl 6.0L
- Require Quantity: 8
- Package Quantity: 1
- Callout Name: 9E527
3C3Z-9C995-AA
RETAINER (FUEL INJECTOR CLIP)Retainer - Injection Valve- One package consists of 8 pieces. One piece required per injector.Eight(8) pieces required per engine
- Fit Note: 8 Cyl 6.0L
- Require Quantity: 8
- Package Quantity: 8
- Base Number: 9C995
- Callout Name: 9C995
$75.25 $43.658
5C3Z-9J332-C
TUBE ASY. (FUEL LINE EXTENSION RETURN)Tube Assy- Also requires 4C3Z-9B246-F kit.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9J332
- Callout Name: 9J332
$300.00 $191.701
- INJECTOR ASY. (FUEL) ALS0 REFER TO GROUP 9E527
4L3Z-9F593-CA
Injector Assy- 5.4L EFI
- Require Quantity: 8
- Package Quantity: 1
- Base Number: 9F593
- Callout Name: 9F593
$209.09 $123.631
XL2Z-9F593-CA
Injector Assy- Require Quantity: 10
- Package Quantity: 1
- Base Number: 9F593
- Callout Name: 9F593
$79.64 $43.541
FOTZ-9F593-C
Injector Assy- Require Quantity: 8
- Package Quantity: 1
- Callout Name: 9F593
- Replaced By: FOTZ-9F593-D
$241.82 $142.981
$13.731
- 3C3Z-9N693-BA
PLUG ASY. (SUPPLY RAIL)"O" Ring- O-ring for M17 plug
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9K024
$5.88 $4.471
4C3Z-9F838-AB
SENSOR ASY. (FUEL INJECTOR TIMING)Sensor Assy- ICP Regualtor. #1845428-C91. w301385 is the seal for the sensor., For engine serial #s 6155637 and beyond (Indy built) & engine serial #s 94581 & beyond (Huntsville built)
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9F838
- Replaced By: 4C3Z-9F838-B
$208.33 $142.501
4C3Z-12B697-AA
Insulator- Nav ID# 1847074-C91, For engine serial numbers 6155637 and beyond (Indy built) & engine serial numbers 94581 & beyond (Huntsville built) 9/22/03 & beyond
- Fit Note: 8 Cyl 6.0L
- Base Number: 12B697
- Callout Name: 12B697
- BUSHING (FUEL TUBE MOUNTING)4C3Z-9T304-AA
Bushing- Also serviced in 9J332(wishbone style hose assembly).Intl# 1844252-C1. Bushing without the 9J278 retainer, For engine serial numbers 6155637 and beyond(Indy built) & engine serial numbers 94581 and beyond(Huntsville built) 9/22/2003 and beyond
- Fit Note: 8 Cyl 6.0L
- Base Number: 9T304
- Callout Name: 9T304
$2.75 $1.981

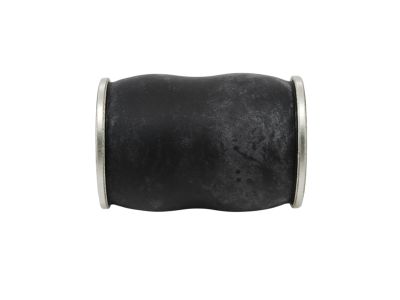

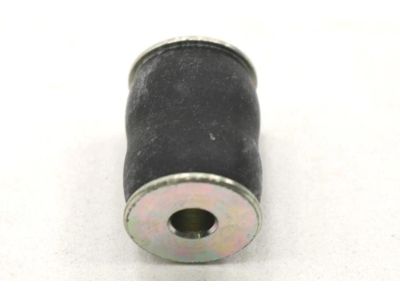

4C3Z-9T304-BA
Bushing- Bushing with retainer 9J278. Also serviced in 9J332, For engine serial numbers 6155637 and beyond(Indy built) & engine serial numbers 94581 and beyond(Huntsville built) 9/22/2003 and beyond
- Fit Note: 8 Cyl 6.0L
- Base Number: 9T304
- Callout Name: 9T304
5C3Z-9T287-AB
KIT (MANIFOLD FUEL INJECTOR FUEL SUPPLY)Manifold Assy - Fuel Supply- Kit-Oil rail. Attaching bolts is W301383, FROM 11/1/2004
- Fit Note: 8 Cyl 6.0L
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 9T287
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2005 Ford Excursion parts. Parts like Fuel Injectors & Rails are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 6.0L. Transmission: 4AT 4R100.
