Turbocharger Piping & Related Parts fit your 2002 Ford E-450 Super Duty 8 Cyl 7.3L Diesel Turbocharged 4-Speed Automatic Transmission 4R100
Currently shopping for
2002 Ford E-450 Super Duty
Change VehicleVehicle Options
8 Cyl 7.3L Diesel Turbocharged; 4-Speed Automatic Transmission 4R100Vehicle Options
8 Cyl 7.3L Diesel Turbocharged; 4-Speed Automatic Transmission 4R100Categories Close X
Currently selected
Engine
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Automatic Transmission
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
Parts Questions
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
$24.80 $14.511
- O RING (OIL DRAIN)
F4TZ-6N653-A
Gasket- Small- Mounts on top and below turbo pedestal 1 used on top 1 used on bottom of pedestal
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 6N653
- Callout Name: 6N653
$8.77 $6.672
F4TZ-6N653-B
Gasket- Large- Mounts on top and below turbo pedestal 1 used on top 1 used on bottom of pedestal
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 6N653
- Callout Name: 6N653
$2.95 $2.212
F81Z-6N653-BA
Gasket- Repair kit- consists of 7 seals,2 bolts,1 clip and a ring.
- Fit Note: 8 Cyl 7.3L
- Base Number: 6N653
- Callout Name: 6N653
$173.85 $124.301
- CLAMP (HOSE)
F81Z-8287-EA
Clamp - Hose- Navistar #1824400-C1, Ford #F81A 8287-EA - Inlet to exhaust system - attaches 6k682(turbo) to 6K854(adaptor) - pkg of 1
- Fit Note: 8 Cyl 7.3L
- Base Number: 8287
- Callout Name: 8287
$63.62 $39.891
F4TZ-8287-A
Clamp - Hose- 3 1/2 inch clamp - #397257-R1 This clamp mounts on turbo in center of clean air side going from air cleaner (1 per package), DI Turbo
3 1/2" clamp. Air inlet hose to Turbo inlet 2 required. (1 per package), DI Turbo - Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 8287
- Callout Name: 8287
$9.51 $6.121
$16.49 $10.611
-1831214-C1
Clamp- V-Band Turbo Outlet Clamp from Turbo to 6K889
- Fit Note: 8 Cyl 7.3L
- Base Number: 1831214-C1
- Callout Name: 8287
$19.45 $11.384
F4TZ-8287-AAA
Clamp - Hose- 2 1/2" worm clamp; Attaches turbo air outlets from "Y" adaptor to cylinder head inlet., DI Turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 4
- Package Quantity: 4
- Base Number: 8287
- Callout Name: 8287
$5.23 $3.374
$36.36 $23.401
- TURBO INLET PIPE
F81Z-6K854-DA
Adaptor- (6) Turbo Y connector; 2 3/4" bolt hole centers. #1824272C1
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$200.00 $129.001
F4TZ-6K854-F
Adaptor- (2) RH & LH flange; (does not come with pipe)
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6K854
- Callout Name: 6K854
$98.60 $52.511
F4TZ-6K854-C
Adaptor- (4) Seal; RH & LH; Attaches exhaust pipe to turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6K854
- Callout Name: 6K854
$32.40 $18.471- F81Z-6K854-EA
Adaptor- (5) RH Pipe; Without flange
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$92.20 $49.101 - F81Z-6K854-FA
Adaptor- (3) LH exhaust pipe from manifold to turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$113.80 $60.611
F81Z-6K854-AA
Adaptor- (1) Bracket to mount air cleaner turbo inlet hose to valve cover
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$105.00 $55.921- F8TZ-6K854-AA
Adaptor- (6) Turbo Y connector; 3 1/8" bolt hole centers. #1827420C1
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$195.00 $124.611
$13.731
2C3Z-9P466-AA
SEAL KIT (ENGINE EXHAUST BACK PRESSURE)Kit - "O" Ring- Used to repair 6N639 turbo pedestal, 7.3L
- Callout Name: 9P466
- Replaced By: 2C3Z-9P466-A
$360.00 $244.081
- HOSE (FUEL TANK TO FILLER PIPE)
F3UZ-9047-G
Hose - Filler Pipe- 20" long. Also serviced in 9B149 kits, Cutaway/Stripped Chassis-Diesel
- Base Number: 9047
- Callout Name: 9047
$56.33 $39.211
F7UZ-9047-BE
Hose - Connecting- Also serviced in 9047. Cadbar II hose material with bonded 9A064 clamp. Also includes 1 loose 9A064 clamp for attaching to 9034 steel pipe, gas unleaded/leaded fuel, midship fuel tank
- Base Number: 9047
- Callout Name: 9047
$140.42 $96.051- F7UZ-9047-CA
Hose - Filler Pipe- Aft axle tank, 1 1/2" I.D. x 20" long. Part is also serviced in 9B149 kits., gas
Aft axle tank, 1 1/2" I.D. x 20" long. Part is also serviced in 9B149 kits., gas, Stripped Chassis/Cutaway - Base Number: 9047
- Callout Name: 9047
$213.33 $140.801 - F7UZ-9047-AA
Hose - Connecting- Midship tank Also serviced in 9B149 kits., 7.3L, exc. Stripped Chassis/Cutaway
- Base Number: 9047
- Callout Name: 9047
- BRACKET ASY. (TURBORCHARGER HEAT SHIELD)
- XC2Z-9G479-AA
Bracket- BRACKET ASY. (TURBORCHARGER HEAT SHIELD)
- Fit Note: 8 Cyl 7.3L
- Base Number: 9G479
- Callout Name: 9G479
- TURBO PEDESTAL
F81Z-6N639-CARM
Pedestal Assy- Includes EBP actuator
- Fit Note: 8 Cyl 7.3L
- Base Number: 6N639
- Callout Name: 6N639
$795.00 $523.081 - -W301403-
Hardware - Miscellaneous- M8 x 65mm, Pedestal to block mounting bolt.
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 4
- Package Quantity: 24
- Callout Name: 6N639
$30.16 $22.2324
F81Z-9E436-AA
GASKET (FUEL RAIL TO PLENUM)Gasket- #F81A-9461-AA,#1831227-C1.Seal-Turbo compressor outlet. See Turbo Illustration, goes between 6K682 and 6K889.
- Fit Note: 8 Cyl 7.3L
- Base Number: 9E436
- Callout Name: 9E436
$19.85 $15.091
F81Z-9C623-AA
DUCT (ENGINE AIR CLEANER TO ENGINE)Hose - Air- Navistar # 1826688c1, FROM 10/23/97
- Fit Note: 8 Cyl 7.3L
- Base Number: 9C623
- Callout Name: 9C623
- $19.45 $11.384
- TURBO-CHARGER ASY.-1831214-C1
Clamp- V-Band Turbo Outlet Clamp from Turbo to 6K889
- Fit Note: 8 Cyl 7.3L
- Base Number: 1831214-C1
- Callout Name: 6K682
$19.45 $11.384

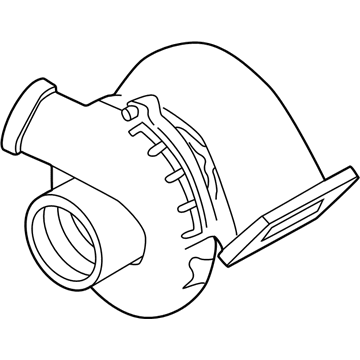

XC2Z-6K682-AARM
Turbocharger Assy- OE Turbo # 1831434-C91/C96
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K682
- Callout Name: 6K682

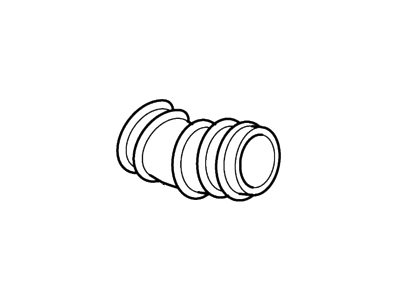

- TURBO (INTAKE HOSE)
2C3Z-6C640-BA
Connection - Air Inlet- Cylinder head inlet to CAC adaptor; 2.96 I.D. x 3.18" long - Black in Color
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6C640
- Callout Name: 6C640
$91.00 $58.151
F81Z-6C640-CA
Connection - Air Inlet- Cylinder head inlet to Turbo Y adaptor; 2.97 I.D. x 2.31" - Red Oxide Color
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 6C640
- Replaced By: YC3Z-6C640-PA
$51.60 $29.931
1C3Z-6C640-LA
Connection - Air Inlet- Engine to Charge air cooler tube, 2.95" ID Blue hose, Passenger & Driver side
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6C640
- Callout Name: 6C640
$74.00 $51.501
F81Z-6N632-AA
FLANGE (ENGINE CHARGE EXHAUST)Flange - Exhaust Pipe- RH & LH; Attaches exhaust pipe to turbo Y connector; 3 1/8" bolt pattern
- Location: Passenger Side & Driver Side
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6N632
- Callout Name: 6N632
$79.00 $45.031
XC2Z-6K889-AA
DUCT (Y INTAKE MANIFOLD)Duct - Turbo To Intake Manifold- Fit Note: 8 Cyl 7.3L
- Base Number: 6K889
- Callout Name: 6K889
XC2Z-9C681-BA
HOSE (AIR CLEANER TO TURBO)Hose - Air Inlet- Black Turbo inlet hose
- Fit Note: 8 Cyl 7.3L
- Base Number: 9C681
- Callout Name: 9C681
$86.33 $59.05
- YC3Z-6828-AA
CLAMP (POSITIVE CRANKCASE VENT TUBE)Clamp - Tube- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6828
- Callout Name: 6828
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2002 Ford E-450 Super Duty parts. Parts like Turbocharger Piping & Related Parts are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 7.3L Diesel Turbocharged. Transmission: 4AT 4R100.
