Glow Plug Relay And Engine Wiring fit your 2000 Ford Excursion 8 Cyl 7.3L 4-Speed Automatic Transmission 4R100
Currently shopping for
2000 Ford Excursion
Change VehicleVehicle Options
8 Cyl 7.3L; 4-Speed Automatic Transmission 4R100Vehicle Options
8 Cyl 7.3L; 4-Speed Automatic Transmission 4R100Categories Close X
Currently selected
Alternator, Battery, Distributor & Starter
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Automatic Transmission
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
How to use OE catalog
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
F6TZ-9F838-A
SENSOR ASY. (FUEL INJECTOR TIMING)Sensor Assy- #1807329-C91
- Fit Note: 8 Cyl 7.3L
- Base Number: 9F838
- Callout Name: 9F838
- Replaced By: YC3Z-9F838-A
$218.33 $149.341
- WIRE ASY. (FUEL CHARGE)
$108.36 $72.711
$13.731
F65Z-10884-AA
SENDER (WATER TEMPERATURE INDICATOR ENGINE UNIT)Sender Assy - Temperature- Sender; "Black" 2 spade-terminal connector; #F65F 10884-AA., All engines
- Base Number: 10884
- Callout Name: 10884
$185.45 $116.28
F81Z-9278-AA
SENDER ASY. (OIL PRESSURE ENGINE UNIT)Switch Assy - Oil Pressure- Includes 9C064 O'ring, Diesel engines
- Base Number: 9278
- Callout Name: 9278
$43.45 $26.831
- MODULE (GLOW PLUG CONTROL)
F81Z-12B533-AC
Control Unit- Relay only, BEFORE 10/25/99
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B533
- Callout Name: 12B533
$111.27 $68.691
F81Z-6G015-AA
Relay- Intake air heater relay; 1831645-C1
- Fit Note: 8 Cyl 7.3L
- Base Number: 6G015
- Callout Name: 12B533
$142.00 $80.941
YC3Z-12B533-AA
Control Unit- Solid state glow plug control module, International #1828565-C1, FROM 10/25/99
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B533
- Callout Name: 12B533
F81Z-12B533-BA
Resistor Assy - Cold Start- Shunt (Resistor) located on top of relay, W/ Calif. Ems., BEFORE 10/25/99
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B533
- Callout Name: 12B533
- F81Z-14448-AA
Block Assy - Junction- Junction block mounting bracket (2 bolt), w/Calif. Ems.
- Fit Note: 8 Cyl 7.3L
- Callout Name: 12B533
- Replaced By: F81Z-14448-AB
- WIRE ASY. (ENGINE CONTROLS, SENSORS, INJECTORS)
F81Z-12B637-EA
Wire Assy- Navistar ID.# 1807461-C91, w/o California emissions
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B637
- Callout Name: 12B637
$1293.62 $680.96 - F81Z-12B637-DA
Wire Assy- Navistar ID.# 1807460-C91, w/California emissions, BEFORE 10/25/99
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B637
- Callout Name: 12B637
- YC3Z-12B637-BA
Wire Assy- Navistar ID.# 1831742-C91, w/California emissions, FROM 10/25/99
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B637
- Callout Name: 12B637
F4TZ-12A342-A
PLUG GLOW (INTAKE MANIFOLD)Glow Plug- Fit Note: 8 Cyl 7.3L
- Require Quantity: 8
- Package Quantity: 1
- Callout Name: 12A342
- Replaced By: MC3Z-12A342-F
$29.45 $17.251
- SOLENOID KIT (BACK PRESSURE SOLENOID)
F81Z-6C673-AA
Solenoid Assy - Turbo Control- 3 port vacuum solinoid mounted at top of turbo next to air heater
- Fit Note: 8 Cyl 7.3L
- Base Number: 6C673
- Callout Name: 6C673
$102.20 $58.251
F81Z-6C673-BA
Solenoid Assy- EBP solenoid mounted on base of turbo
- Fit Note: 8 Cyl 7.3L
- Base Number: 6C673
- Callout Name: 6C673
F5AZ-12A648-A
SENSOR ASY. (ENGINE COOLANT TEMPERATURE)Sensor - Engine Temperature, Ect- Rectangular connector with 2 flat pins, Eng. Oil Temp.
- Fit Note: 8 Cyl 7.3L
- Callout Name: 12A648
- Replaced By: 3F1Z-12A648-A
$34.00 $20.981
F6SZ-12A697-A
SENSOR ASY. (INTAKE AIR TEMPERATURE)Sensor Assy- Mounted on charge air cooler manifold
- Fit Note: 8 Cyl 7.3L
- Callout Name: 12A697
- Replaced By: 9C1Z-12A697-B
$48.55 $29.961
F3VY-12A647-A
SENSOR ASY. (AMBIENT AIR TEMPERATURE)Sensor Assy- For ambient temperature sensor
- Callout Name: 12A647
- Replaced By: AE5Z-12A647-A
$67.27 $41.531
F4TZ-9F485-B
CONNECTOR (EGR EXHAUST MANIFOLD)Connector- Connector-5/16 tube flared. Connects to 9D477 tube to exhaust Manifold.
- Fit Note: 8 Cyl 7.3L
- Callout Name: 9F485
- Replaced By: 3C3Z-9F485-BA
$30.00 $17.551
F4TZ-9N693-A
RING/SEAL (INJECTION PUMP TO FITTING - SEALING)"O" Ring- Fit Note: 8 Cyl 7.3L
- Require Quantity: 3
- Package Quantity: 3
- Base Number: 9N693
- Callout Name: 9N693
$4.41 $3.363
- TURBO INLET PIPE
F4TZ-6K854-F
Adaptor- (2) RH & LH flange; (does not come with pipe)
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6K854
- Callout Name: 6K854
$118.40 $63.051
F4TZ-6K854-C
Adaptor- (4) Seal; RH & LH; Attaches exhaust pipe to turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6K854
- Callout Name: 6K854
$38.40 $21.891- F81Z-6K854-CA
Adaptor- (1) Bracket to mount air cleaner turbo inlet hose to valve cover, DI turbo
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$193.80 $103.211
F81Z-6K854-EA
Adaptor- (5) RH Pipe; Without flange
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$109.20 $58.151
F81Z-6K854-FA
Adaptor- (3) LH exhaust pipe from manifold to turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$135.00 $71.881
- F8TZ-6K854-AA
Adaptor- (6) Turbo Y connector; 3 1/8" bolt hole centers. #1827420C1
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$235.00 $150.171
- WIRE ASY. (GLOW PLUG START CONTROL)
F81Z-12B568-AAA
Wire Assy - Glow Plug- air heater power cable
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B568
- Callout Name: 12B568
$23.57 $17.251
F81Z-12B568-BA
Wire Assy - Glow Plug- air heater ground cable
- Fit Note: 8 Cyl 7.3L
- Base Number: 12B568
- Callout Name: 12B568

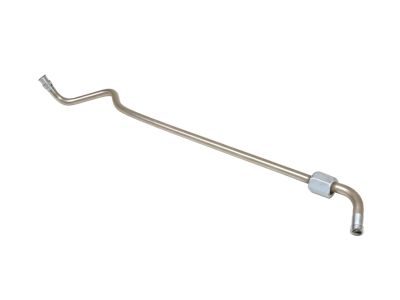

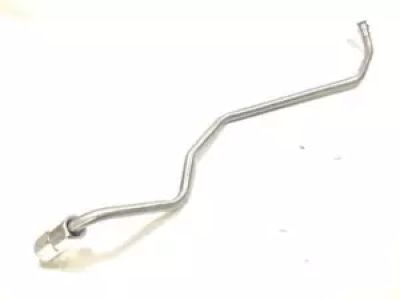

F81Z-9D477-AA
TUBE (EXHAUST GAS RECIRCULATING VALVE TO EXHAUST MANIFOLD)Tube - Egr Valve To Exhaust Manifld- Tube-Exhaust Back Pressure Sensor. #1831009-C1. Use with 9F485 Fitting.
- Fit Note: 8 Cyl 7.3L
- Callout Name: 9D477
- Replaced By: 1C3Z-9D477-AA
$130.20 $74.211
F81Z-9J432-AA
BRACKET (TRANSDUCER MOUNTING)Bracket- Gear access cover with EBP bracket & fitting. Mounting bolts (2) 1817953-C1.
- Fit Note: 8 Cyl 7.3L
- Base Number: 9J432
- Callout Name: 9J432
$149.20 $85.041
- HEATER ASY. (INTAKE MANIFOLD)
-1831643-C1
Insulator- Ceramic washer for air heater
- Fit Note: 8 Cyl 7.3L
- Base Number: 1831643-C1
- Callout Name: 9N424
$12.10 $7.081
F81Z-9N424-AA
Heater Assy - Nozzle- #1831565-C1
- Fit Note: 8 Cyl 7.3L
- Callout Name: 9N424
- Replaced By: F81Z-9N424-BA
$206.67 $141.361- -1831644-C1
Insulator- Wave washer for air heater
- Fit Note: 8 Cyl 7.3L
- Base Number: 1831644-C1
- Callout Name: 9N424
F4TZ-9K024-A
PLUG ASY. (SUPPLY RAIL)Plug- Supply rail - RH cyl. head; includes o'ring F4TZ 9N693-A.
- Fit Note: 8 Cyl 7.3L
- Base Number: 9K024
- Callout Name: 9K024
$20.67 $14.511
- BRACKET (IGNITION MODULE)F81Z-12K060-BA
Bracket- Glowplug & Air heater relay bracket
- Fit Note: 8 Cyl 7.3L
- Base Number: 12K060
- Callout Name: 12K060
$28.56 $20.561 - YC3Z-12K060-BA
Bracket- Glowplug & Air heater relay bracket for solid state relay, With Calif. Ems., FROM 10/25/99
- Fit Note: 8 Cyl 7.3L
- Base Number: 12K060
- Callout Name: 12K060
-2004148-C1
SENSOR ASY. (EGR PRESSURE VALVE)Cap- Cap, without exhaust back pressure
- Fit Note: 8 Cyl 7.3L
- Base Number: 2004148-C1
- Callout Name: 9J460
F7TZ-12K073-A
TRANSDUCER ASY. (CAMSHAFT POSITION SENSOR)Synchronizer Assy- Includes W302763 o-ring; Use W300001 for mounting bolt
- Fit Note: 8 Cyl 7.3L
- Callout Name: 12K073
F81Z-12A345-AA
COVER (GLOW PLUG RELAY)Cover - Relay- Glow plug relay cover, W/ Calif Ems.
- Fit Note: 8 Cyl 7.3L
- Base Number: 12A345
- Callout Name: 12A345
F81Z-9L474-BB
HOSE (MANIFOLD ABSOLUTE PRESSURE SENSOR)Hose- #F81A-9L474-BB, #1831378-C1. 27mm shorter than F81Z-9L474-BA.
- Fit Note: 8 Cyl 7.3L
- Base Number: 9L474
- Callout Name: 9L474
YC3Z-12A581-GR
WIRE ASY. (ENGINE CONTROL SENSOR)Wire Assy- A/T, with DRL
- Fit Note: 8 Cyl 7.3L
- Callout Name: 12A581
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2000 Ford Excursion parts. Parts like Glow Plug Relay And Engine Wiring are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 7.3L. Transmission: 4AT 4R100.
