Turbocharger, Piping & Heat Shields & Related Parts fit your 1997 Ford F Super Duty 8 Cyl 7.3L Diesel Turbocharged 4-Speed Automatic Transmission 4R100
Currently shopping for
1997 Ford F Super Duty
Change VehicleVehicle Options
8 Cyl 7.3L Diesel Turbocharged; 4-Speed Automatic Transmission 4R100Vehicle Options
8 Cyl 7.3L Diesel Turbocharged; 4-Speed Automatic Transmission 4R100Categories Close X
Currently selected
Engine
- Camshaft, Gear, Bearings & Related Parts
- Crankcase Ventilation System
- Crankshaft & Flywheel & Related Parts
- Cylinder Block & Related Parts
- Cylinder Head, Valves & Related Parts
- Engine Dress Cover
- Engine Supports
- Oil Cooler & Related Parts
- Oil Pan & Related Parts
- Oil Pump & Related Parts
- Piston, Connecting Rod & Related Parts
- Pulleys And Drive Belts
- Turbocharger, Piping & Heat Shields & Related Parts
- Valves, Cylinder Head & Related Parts
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Automatic Transmission
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Manual Transmission
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
How to use OE catalog
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
F4TZ-9E436-A
GASKET (FUEL RAIL TO PLENUM)Gasket- Seal-Turbo compressor outlet(mounts between 6K682 & 6K889), DI Turbo
- Fit Note: 8 Cyl 7.3L
- Base Number: 9E436
- Callout Name: 9E436
$16.54 $12.581
- O RING (OIL DRAIN)
F4TZ-6N653-A
Gasket- Small- Mounts on top and below turbo pedestal 1 used on top 1 used on bottom of pedestal, DI turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 6N653
- Callout Name: 6N653
$9.65 $7.342
F4TZ-6N653-B
Gasket- Large- Mounts on top and below turbo pedestal 1 used on top 1 used on bottom of pedestal, DI turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 6N653
- Callout Name: 6N653
$3.24 $2.472
F81Z-6N653-BA
Gasket- Repair kit- consists of 7 seals,2 bolts,1 clip and a ring., DI turbo
- Fit Note: 8 Cyl 7.3L
- Base Number: 6N653
- Callout Name: 6N653
$191.23 $132.371
F4TZ-6N640-B
EXHAUST GASKET (INLET)Gasket- Flange gasket between Turbo Outlet to Exhaust Inlet.
- Fit Note: 8 Cyl 7.3L
- Base Number: 6N640
- Callout Name: 6N640
$24.88 $18.431
- TURBO INLET PIPE
-1821648-C1
Nut- (6) Attaching nuts for Turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 1821648-C1
- Callout Name: 6K854
$18.75 $13.731
-1821641-C1
Bolt- (6) M10 Attaching bolt for Turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 1821641-C1
- Callout Name: 6K854
$26.26 $19.221
-1821642-C3
Stud- (6) Attaching stud for Turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 1821642-C3
- Callout Name: 6K854
$19.42 $11.361
F4TZ-6K854-F
Adaptor- (2) RH & LH flange; (does not come with pipe)
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6K854
- Callout Name: 6K854
$118.40 $63.051
F4TZ-6K854-C
Adaptor- (4) Seal; RH & LH; Attaches exhaust pipe to turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6K854
- Callout Name: 6K854
$38.40 $21.891
F4TZ-6K854-A
Pipe Assy- (3) LH exhaust pipe; manifold to turbo inlet Y adaptor
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$258.50 $165.171
F6TZ-6K854-A
Adaptor- (5) RH Pipe; manifold to turbo Y connector
- Fit Note: 8 Cyl 7.3L
- Base Number: 6K854
- Callout Name: 6K854
$216.00 $123.121
- BOLT (INJECTOR PUMP GEAR)-1821648-C1
Nut- Nut; Retains Turbo to Turbo Y adaptor
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 4
- Package Quantity: 1
- Base Number: 1821648-C1
- Callout Name: 9N517
$18.75 $13.731 - -1821641-C1
Bolt- M10 Bolt; Retains Turbo to Turbo Y adaptor
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 4
- Package Quantity: 1
- Base Number: 1821641-C1
- Callout Name: 9N517
$26.26 $19.221
F4TZ-9N517-A
Bolt- Bolt-M10 x 35 mounts 9155 fuel/water separator, DI Turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 9N517
- Callout Name: 9N517
$18.75 $13.731
F4TZ-9N517-C
Bolt- Bolt-M8 x 70mm hex flange..Attach high pressure oil inj pump(9A543), DI Turbo
- Fit Note: 8 Cyl 7.3L
- Callout Name: 9N517
- Replaced By: 3C3Z-9N517-AA
$7.86 $6.441
- $18.75 $13.731
- HOSE (AIR CLEANER TO TURBO)
F81Z-9C681-AA
Hose - Air Inlet- Black Turbo inlet hose, FROM 9/24/97
- Fit Note: 8 Cyl 7.3L
- Base Number: 9C681
- Callout Name: 9C681
$191.67 $131.101

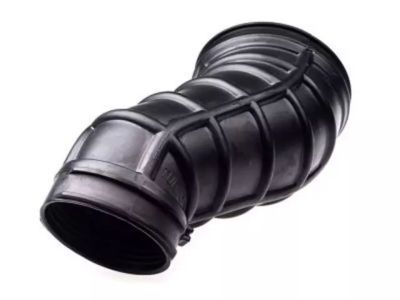

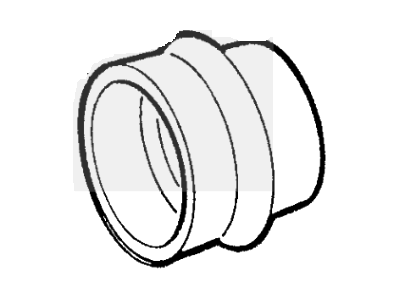

F4TZ-9C681-B
Hose - Air Inlet- Orange turbo inlet hose, BEFORE 9/24/97
- Fit Note: 8 Cyl 7.3L
- Callout Name: 9C681
- Replaced By: F7TZ-9C681-AA
$456.67 $291.811

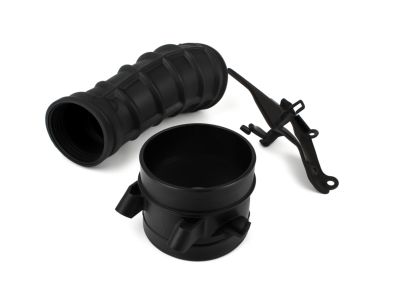

F7TZ-9C681-AA
Hose - Air Inlet- Kit to replace orange turbo inlet asy., DI Turbo, BEFORE 9/24/97
- Fit Note: 8 Cyl 7.3L
- Base Number: 9C623
- Callout Name: 9C681
$456.67 $291.811
- $26.26 $19.221
$18.75 $13.731
- CLAMP (HOSE)
F4TZ-8287-A
Clamp - Hose- 3 1/2 inch clamp - #397257-R1 This clamp mounts on turbo in center of clean air side going from air cleaner (1 per package), DI Turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 8287
- Callout Name: 8287
$11.42 $7.351
$19.82 $12.751
F4TZ-8287-AAA
Clamp - Hose- 2 1/2" worm clamp; Attaches turbo air outlets from "Y" adaptor to cylinder head inlet., DI Turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 4
- Package Quantity: 4
- Base Number: 8287
- Callout Name: 8287
$6.27 $4.044
$40.00 $24.691
- $19.42 $11.361
- DUCT (ENGINE AIR CLEANER TO ENGINE)F4TZ-9C623-A
Hose - Air Inlet- DI Turbo
- Fit Note: 8 Cyl 7.3L
- Callout Name: 9C623
- Replaced By: F7TZ-9C681-AA
$456.67 $291.811
F81Z-9C623-AA
Hose - Air- Navistar # 1826688c1, FROM 9/24/97
- Fit Note: 8 Cyl 7.3L
- Base Number: 9C623
- Callout Name: 9C623
C9AZ-8287-B
HOSE (FUEL TANK TO FILLER PIPE)Clamp - Hose- Clamp asy. (filler hose) - adjustable - 2 1/16" I.D. to 3" I.D.
- Require Quantity: 2
- Package Quantity: 10
- Callout Name: 9047
- Replaced By: C9AZ-8287-BA
$3.67 $2.4510
- TURBO (INTAKE HOSE)
F4TZ-6C640-A
Air Inlet Connection- Attaches from turbo to intake man., DI turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 6C640
- Replaced By: F6TZ-6C640-A
$105.40 $60.081

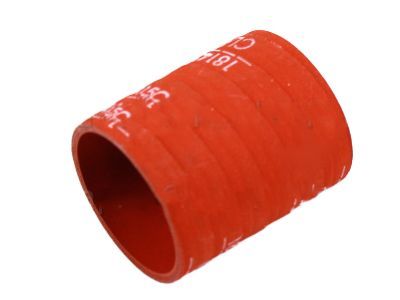

F6TZ-6C640-A
Connection - Air Inlet- This attaches the turbo air to intake man. (2 needed), DI turbo
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6C640
- Callout Name: 6C640
$105.40 $60.081
F4TZ-6N632-A
FLANGE (ENGINE CHARGE EXHAUST)Flange - Exhaust Pipe- RH & LH; Attaches exhaust pipe to turbo Y connector; 2 3/4" bolt pattern
- Location: Passenger Side & Driver Side
- Fit Note: 8 Cyl 7.3L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6N632
- Callout Name: 6N632
$72.00 $41.041
$18.75 $13.731
- $112.33 $72.661
- TURBO-CHARGER ASY.-1831334-C91
Bolt- Turbo bolt kit, DI Turbo
- Fit Note: 8 Cyl 7.3L
- Callout Name: 6K682
- Replaced By: 2C3Z-9T514-AA
$112.33 $72.661
F6TZ-6K682-ARM
Turbocharger Assy- Excludes mounting pedestal
- Fit Note: 8 Cyl 7.3L
- Callout Name: 6K682
- Replaced By: F4TZ-6VK682-CARM
F5TZ-6N696-AA
TUBE ASY. (TURBO CHARGE TO INTAKE MANIFOLD)Tube Assy- Fit Note: 8 Cyl 7.3L
- Base Number: 6N696
- Callout Name: 6N696
$961.67 $628.931
2C3Z-9P466-BA
SEAL KIT (ENGINE EXHAUST BACK PRESSURE)Kit - "O" Ring- Used to repair turbo pedestal 6N639, 7.3L
- Callout Name: 9P466
- Replaced By: 2C3Z-9P466-BC
F5TZ-6C673-A
SOLENOID KIT (BACK PRESSURE SOLENOID)Solenoid Assy- EBP solenoid mounted on base of turbo w/ wire leads
- Fit Note: 8 Cyl 7.3L
- Base Number: 6C673
- Callout Name: 6C673
- F5TZ-9G486-AA
TURBINE HOUSING BOLT KIT (TURBO TO PEDESTAL)Bolt- Consists of (8)turbo to pedestal bolts, (11)turbo housing attachment bolts, DI Turbo
- Fit Note: 8 Cyl 7.3L
- Base Number: 9G486
- Callout Name: 9G486
F81Z-6N639-EARM
TURBO PEDESTALPipe - Oil Feed- Includes EBP actuator; Attaching bolts; F5TZ-9G486-A must be ordered separately.
- Fit Note: 8 Cyl 7.3L
- Callout Name: 6N639
- Replaced By: F4TZ-6VN639-AARM
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 1997 Ford F Super Duty parts. Parts like Turbocharger, Piping & Heat Shields & Related Parts are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 7.3L Diesel Turbocharged. Transmission: 4AT 4R100.
