How to remove and replace the air conditioning accumulator in a Mercury Mountaineer?

Have the air conditioning system dis-charged by a dealer service department or by an automotive air conditioning shop before proceeding. Remove the air filter housing. Remove the front grille. Disconnect the condenser line and the evaporator line from the top of the accumulator. Remove and discard the old O-rings. Push the radiator air deflector forward to access the accumulator mounting nut on the backside of the radiator support panel. Remove the accumulator mounting bolts and remove the accumulator. Note: The lower mounting bolt must be accessed from behind the radiator support panel while the upper bolt can be accessed from inside the engine compartment. Replace all old O-rings. Before installing the new O-rings, coat them with refrigerant oil. Tighten the inlet and outlet air conditioning line mounting nuts to the torque. Installation is otherwise the reverse of removal. Take the vehicle to the shop that discharged it and have the system evacuated and recharged.

Genuine Mercury Mountaineer A/C Accumulator

Accumulator

Enter your vehicle info to find more parts and verify fitment

Select Vehicle by VIN
Select Vehicle by Model

Select by VIN

Enter your VIN for the most accurate results.

Select by Model

-- Select Make --

-- Select Model --

-- Select Year --

8 A/C Accumulators found

View related parts

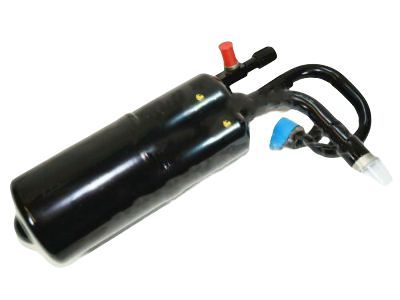

Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: XL2Z-19C836-AC
- Other Name: Dehydrator, Drier
- Replaces: F87Z-19C836-AA
$54.45 MSRP: $90.00
You Save: $35.55 (40%)

Add to Cart
More Info
Fits the following Vehicles:
1998-2001 Mercury Mountaineer | 6 Cyl 4.0L, 8 Cyl 5.0L | 4AT 4R70W, 5AT 5R55E
Less Info
View related parts

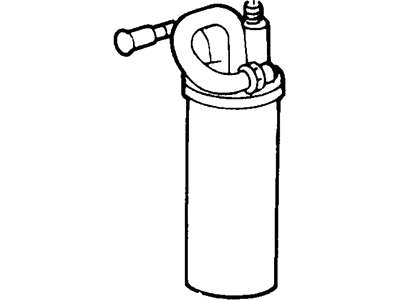

Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: F5TZ-19C836-A
- Other Name: Dehydrator, Drier
- Manufacturer Note: Tank only, w/integral A/C
$180.71 MSRP: $292.73
You Save: $112.02 (39%)

Add to Cart
More Info
Fits the following Vehicles:
1997 Mercury Mountaineer | 8 Cyl 5.0L | 4AT 4R70W
Less Info
View related parts
Mercury Mountaineer Accumulator Assembly - Air Conditioning
Part Number: F87Z-19C836-AA
- Other Name: Accumulator Assy - Air Conditioning
- Replaced by: XL2Z-19C836-AC
$54.45 MSRP: $90.00
You Save: $35.55 (40%)

Add to Cart
More Info
Fits the following Vehicles:
1998 Mercury Mountaineer | 6 Cyl 4.0L, 8 Cyl 5.0L | 4AT 4R70W, 5AT 5R55E
Less Info
View related parts

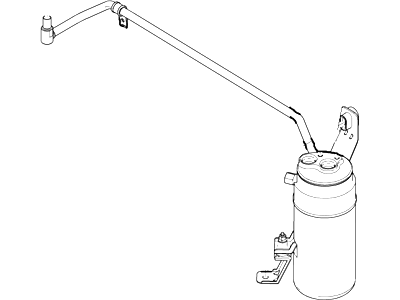

Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: 7L2Z-19C836-B
- Manufacturer Note: Includes Mounting Bracket
- Replaced by: JU2Z-19C836-B
More Info
Fits the following Vehicles:
2008-2010 Mercury Mountaineer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts

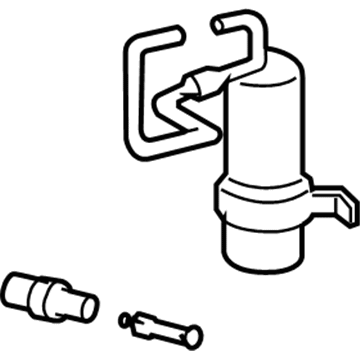

Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: 1L2Z-19C836-AA
- Other Name: Dehydrator, Drier
More Info
Fits the following Vehicles:
2002-2005 Mercury Mountaineer | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts
Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: 1L2Z-19C836-BA
- Other Name: Dehydrator, Drier
More Info
Fits the following Vehicles:
2002-2005 Mercury Mountaineer | 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts
Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: 6L2Z-19C836-A
- Manufacturer Note: Includes Mounting Bracket
- Replaced by: JU2Z-19C836-B
More Info
Fits the following Vehicles:
2006 Mercury Mountaineer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts
Mercury Mountaineer Accumulator Assy - Air Conditioning
Part Number: 7L2Z-19C836-A
- Manufacturer Note: Includes Mounting Bracket
- Replaced by: JU2Z-19C836-B
More Info
Fits the following Vehicles:
2006-2010 Mercury Mountaineer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info

Mercury Mountaineer A/C Accumulator Parts Questions & Answers

Accumulator Assy - Air Conditioning
7L2Z-19C836-B
Q: How to remove and replace the air conditioning accumulator in a Mercury Mountaineer?
A: Have the air conditioning system dis-charged by a dealer service department or by an automotive air conditioning shop before proceeding. Remove the air filter housing. Remove the front grille. Disconnect the condenser line and the evaporator line from the top of the accumulator. Remove and discard the old O-rings. Push the radiator air deflector forward to access the accumulator mounting nut on the backside of the radiator support panel. Remove the accumulator mounting bolts and remove the accumulator. Note: The lower mounting bolt must be accessed from behind the radiator support panel while the upper bolt can be accessed from inside the engine compartment. Replace all old O-rings. Before installing the new O-rings, coat them with refrigerant oil. Tighten the inlet and outlet air conditioning line mounting nuts to the torque. Installation is otherwise the reverse of removal. Take the vehicle to the shop that discharged it and have the system evacuated and recharged.
