How do you remove and install the headlamp switch on Mercury Lynx?

Disconnect the negative battery cable from the battery. For non-air conditioned models, remove the two screws securing the left-hand air vent control cable bracket and drop the cable and bracket down. Remove the two screws securing the fuse panel and move the fuse panel aside. Pull the headlamp switch to the On position. Reach under the instrument panel and press the knob release button to remove the knob and shaft assembly. Remove the switch retaining nut and partially take out the switch from the instrument panel. Disconnect the electrical connector from the switch and remove the switch. Installation is the reverse of removal.

Genuine Mercury Lynx Headlight Switch

Headlamp Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Headlight Switches found

View related parts

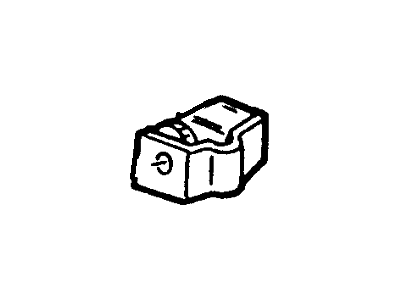

Mercury Lynx SWITCH ASY
Part Number: E53Z11654A
$36.64 MSRP: $50.06
You Save: $13.42 (27%)
ADD TO CART
Product Specifications
- Other Name: Headlamp Switch
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1985 Mercury Lynx | 4 Cyl 1.6L, 4 Cyl 1.9L, 4 Cyl 2.0L | 3AT ATX, 4MT, 5MT
View related parts

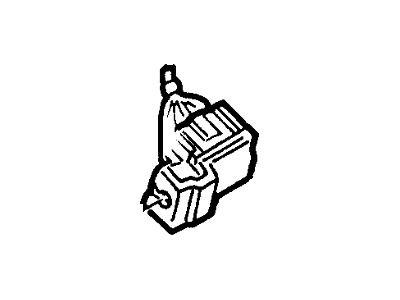

Mercury Lynx Switch Assembly
Part Number: EOAZ11654C
$12.65 MSRP: $17.57
You Save: $4.92 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assy; Headlamp Switch
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1981-1983 Mercury Lynx | 4 Cyl 1.6L | 3AT ATX, 4MT, 5MT
View related parts
Mercury Lynx Switch Assembly
Part Number: E7TZ-11654-B
Product Specifications
- Other Name: Switch Assy
- Replaced by: 6C2Z-11654-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1987 Mercury Lynx | 4 Cyl 1.9L, 4 Cyl 2.0L | 3AT ATX, 4MT, 5MT
View related parts
Mercury Lynx Switch Assembly
Part Number: E6FZ-11654-A
Product Specifications
- Other Name: Switch Assy; Headlamp Switch
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1985-1986 Mercury Lynx | 4 Cyl 1.6L, 4 Cyl 1.9L, 4 Cyl 2.0L | 3AT ATX, 4MT, 5MT
View related parts
Mercury Lynx Switch Assembly
Part Number: EOAZ11654D
Product Specifications
- Other Name: Switch Assy; Headlamp Switch
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1981-1983 Mercury Lynx | 4 Cyl 1.6L | 3AT ATX, 4MT, 5MT

Mercury Lynx Headlight Switch

We provide a wide range of Mercury Lynx Headlight Switch at the best prices possible. If you need Mercury Lynx Headlight Switch, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Mercury Lynx Headlight Switch Parts Questions & Experts Answers

Switch Assembly
E6FZ-11654-A
Q: How do you remove and install the headlamp switch on Mercury Lynx?
A:
Disconnect the negative battery cable from the battery. For non-air conditioned models, remove the two screws securing the left-hand air vent control cable bracket and drop the cable and bracket down. Remove the two screws securing the fuse panel and move the fuse panel aside. Pull the headlamp switch to the On position. Reach under the instrument panel and press the knob release button to remove the knob and shaft assembly. Remove the switch retaining nut and partially take out the switch from the instrument panel. Disconnect the electrical connector from the switch and remove the switch. Installation is the reverse of removal.
