How to remove and install a starter motor in a Mercury Grand Marquis?

To begin, detach the negative terminal of the battery. Then, raise the vehicle and securely support it on jackstands. Next, disconnect the large cable from the terminal on the starter motor. Remove the starter motor mounting bolts and detach the starter from the engine. If necessary, turn the wheels to one side for easier removal access. For the solenoid/starter assembly type, follow the same steps but also disconnect the solenoid terminal connections. Finally, installation is the reverse of removal.

How to diagnose starter problems on Mercury Grand Marquis?

Before diagnosing starter issues, ensure a fully charged battery. If the starter motor doesn't turn, check the shift lever is in Neutral or Park and the battery is charged with secure cables. If the motor spins but the engine doesn't turn over, the starter motor may need replacing. If the motor doesn't operate but the relay/solenoid clicks, the problem could be the battery, relay/solenoid contacts, or motor connections; if it doesn't click, there may be an open circuit or a defective relay/solenoid. Check the circuit and test with a jumper wire and if the motor operates, the issue could be the ignition switch, Neutral start switch, or circuit wiring. If not, replace the relay/solenoid. If the motor cranks the engine slowly, ensure a fully charged battery, clean and tight terminal connections, and check for a short to ground. Consider a partially seized engine or incorrect oil viscosity.

Genuine Mercury Grand Marquis Starter

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Starters found

View related parts

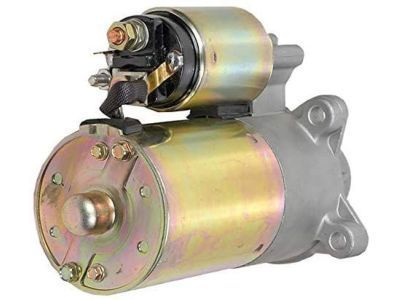

Mercury Grand Marquis Starter Motor Assembly
Part Number: 9C2Z-11002-A
$139.34 MSRP: $229.09
You Save: $89.75 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Starter Motor Assy
- Replaced by: DL3Z-11002-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Mercury Grand Marquis | 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

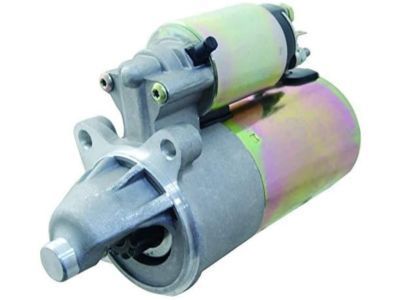

Mercury Grand Marquis Starter Motor Assembly
Part Number: 6W1Z-11002-AA
$139.34 MSRP: $229.09
You Save: $89.75 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Starter Motor Assy
- Replaced by: DL3Z-11002-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2009 Mercury Grand Marquis | 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

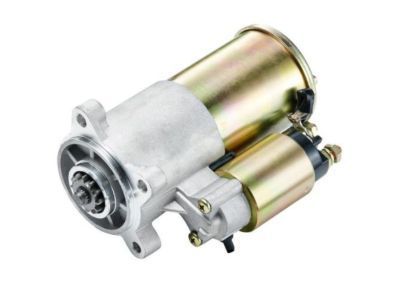

Mercury Grand Marquis Starter Motor Assembly
Part Number: DU2Z-11V002-ERM
$137.81 MSRP: $232.73
You Save: $94.92 (41%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Starter Motor Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Mercury Grand Marquis | 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Starter Motor Assembly
Part Number: G2MZ-11002-C
Product Specifications
- Other Name: Starter Motor Assy
- Manufacturer Note: High Level Aftermarket Spec / Non Warranty Repairs
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Mercury Grand Marquis | 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Mercury Grand Marquis Starter

In Mercury Grand Marquis vehicles, this starter is employed in the conversion of electrical energy from the battery to mechanical energy required to crank the engine. This is done with the help of the solenoid located outside the engine which is in turn connected to the battery and by the action of the magnetic field, the starter motor gets energized. In the case of the starter, a rotating armature makes use of the field coils or permanent magnets to cause rotation whereby the starter drive connects itself to the flywheel or the ring gear of the engine. Ever since the early models of Mercury Grand Marquis vehicles, most of them have incorporated an electric starter where in some of the latest models have adopted gear reduction for efficiency. These starters are meant to supply the required torque for the standard engines and although they may barely work efficiently for the high compression engines these engines are usually high in output and therefore may require bigger and more dependable starters. Like the gear-reduction system, the improvement of the starting technology over time has brought about reliability in starting the engine, and the compactness of the starters.

We provide a wide range of Mercury Grand Marquis Starter at the best prices possible. If you need Mercury Grand Marquis Starter, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Mercury Grand Marquis Starter Parts Questions & Experts Answers

Starter Motor Assembly
9C2Z-11002-A
Q: How to remove and install a starter motor in a Mercury Grand Marquis?
A:
To begin, detach the negative terminal of the battery. Then, raise the vehicle and securely support it on jackstands. Next, disconnect the large cable from the terminal on the starter motor. Remove the starter motor mounting bolts and detach the starter from the engine. If necessary, turn the wheels to one side for easier removal access. For the solenoid/starter assembly type, follow the same steps but also disconnect the solenoid terminal connections. Finally, installation is the reverse of removal.
Starter Motor Assembly
6W1Z-11002-AA
Q: How to diagnose starter problems on Mercury Grand Marquis?
A:
Before diagnosing starter issues, ensure a fully charged battery. If the starter motor doesn't turn, check the shift lever is in Neutral or Park and the battery is charged with secure cables. If the motor spins but the engine doesn't turn over, the starter motor may need replacing. If the motor doesn't operate but the relay/solenoid clicks, the problem could be the battery, relay/solenoid contacts, or motor connections; if it doesn't click, there may be an open circuit or a defective relay/solenoid. Check the circuit and test with a jumper wire and if the motor operates, the issue could be the ignition switch, Neutral start switch, or circuit wiring. If not, replace the relay/solenoid. If the motor cranks the engine slowly, ensure a fully charged battery, clean and tight terminal connections, and check for a short to ground. Consider a partially seized engine or incorrect oil viscosity.
