How to remove and install rear Coil Spring on Mercury Grand Marquis?

Loosen the wheel lug nuts, raise the rear of the vehicle and support it securely on jackstands placed under the frame. Remove the wheel and block the front wheels. Remove the rear stabilizer bar. Support the rear axle assembly with a jack placed under the axle housing. Position a safety chain through one of the spring coils and around a convenient frame member. This will prevent the spring from flying out before it's fully extended. Unsnap the right parking brake cable clip from the right upper suspension arm. Disconnect the lower studs of the two rear shock absorbers from their mounting brackets on the axle tube. Detach the height sensor connector link from the upper control arm. On 1998 and later models, the lateral arms that are part of the Watts linkage must be disconnected at the chassis ends. Slowly lower the jack until the spring is fully extended. Remove the safety chain, coil spring and insulators from between the suspension arm and the spring upper seat. Set the upper insulator on top of the spring, using tape to hold it in place, if necessary. Place the spring between its seat on the axle tube and the frame seat, so that the pigtail (the lower end of the spring) is pointing toward the left side of the vehicle. Raise the axle assembly with the floor jack and insert the studs on the lower ends of the shocks into their holes in the brackets on the axle tubes. Install the stud retaining nuts, but don't fully tighten them yet. Snap the right parking brake cable into the upper suspension arm retainer. Install the rear stabilizer bar. Connect the height sensor connector link to the upper control arm. Remove the jackstands and lower the vehicle. Before attempting to drive a vehicle equipped with air suspension, turn the air suspension switch to On, start the engine and allow the compressor to inflate the air suspension springs (they deflate automatically when the rear of the vehicle is raised).

Genuine Mercury Grand Marquis Coil Spring

Coil Springs

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

33 Coil Springs found

View related parts

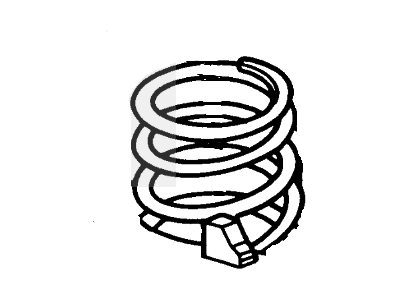

Mercury Grand Marquis Coil Spring
Part Number: 3W7Z-5560-CA
$100.34 MSRP: $139.39
You Save: $39.05 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Replaces: F4AZ-5560-A, F8AZ-5560-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT, 4AT 4R70W, 4AT AODE, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

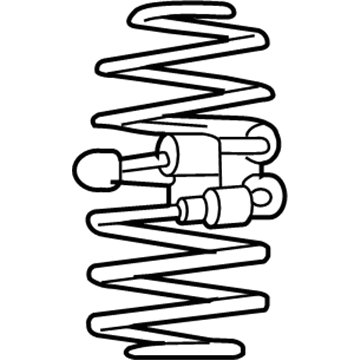

Mercury Grand Marquis Rear Spring
Part Number: 3W7Z-5560-BA
$84.77 MSRP: $115.82
You Save: $31.05 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear
- Manufacturer Note: Spring code - C, spring tag(Orange)CPG
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts

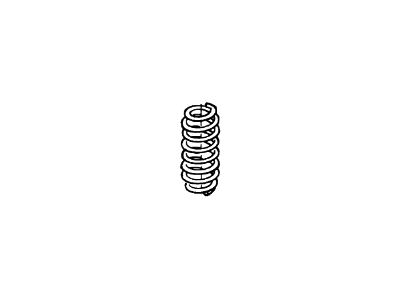

Mercury Grand Marquis Coil Spring
Part Number: 3W1Z-5310-BA
$97.88 MSRP: $135.98
You Save: $38.10 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

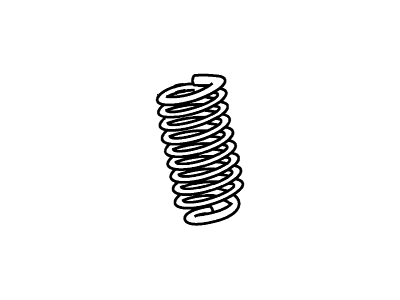

Mercury Grand Marquis Coil Spring
Part Number: 9W7Z-5310-C
$117.42 MSRP: $171.67
You Save: $54.25 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Replaces: 3W1Z-5310-EA, 3W1Z-5310-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011 Mercury Grand Marquis | 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- 2003-2008 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT 4R70W, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

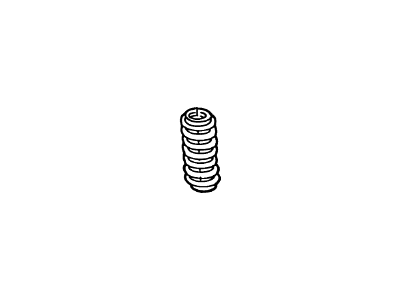

Mercury Grand Marquis Front Spring
Part Number: 3W1Z-5310-EA
$117.42 MSRP: $171.67
You Save: $54.25 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front
- Position: Front
- Replaced by: 9W7Z-5310-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2008 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

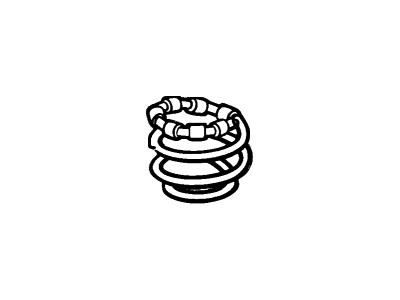

Mercury Grand Marquis Coil Spring
Part Number: 3W1Z-5310-DA
$117.42 MSRP: $171.67
You Save: $54.25 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring
- Manufacturer Note: Module ID: 3W73-18B036-S*, "EHD", Red., with sport equipment package
- Position: Front
- Replaced by: 9W7Z-5310-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Rear Spring
Part Number: F8AZ-5560-DA
Product Specifications
- Other Name: Spring - Rear
- Manufacturer Note: Spring code - D, spring tag(yellow) DMV
- Position: Rear
- Replaced by: 3W7Z-5560-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Front Spring
Part Number: F4AZ-5310-H
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Driver Side & Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2002 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts
Mercury Grand Marquis Rear Spring
Part Number: F4AZ-5560-A
Product Specifications
- Other Name: Spring - Rear
- Manufacturer Note: Spring Code - J
- Position: Rear
- Replaced by: 3W7Z-5560-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1997 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts
Mercury Grand Marquis Front Spring
Part Number: 3W1Z-5310-HA
Product Specifications
- Other Name: Spring - Front
- Position: Front
- Replaced by: 9W7Z-5310-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Rear Spring
Part Number: F8AZ-5560-CA
Product Specifications
- Other Name: Spring - Rear
- Manufacturer Note: Spring code - C, spring tag(yellow)CPG
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2002 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Rear Spring
Part Number: F8AZ-5560-BA
Product Specifications
- Other Name: Spring - Rear
- Manufacturer Note: Spring code - B, spring tag(yellow) BMF
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2002 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Rear Spring
Part Number: F8AZ-5560-AA
Product Specifications
- Other Name: Spring - Rear
- Manufacturer Note: Spring code - A, spring tag(yellow) AWH
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Coil Spring
Part Number: F5AZ-5560-B
Product Specifications
- Other Name: Spring - Coil
- Replaced by: 3U2Z-5580-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1996 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE
View related parts
Mercury Grand Marquis Front Spring
Part Number: F4MY-5310-C
Product Specifications
- Other Name: Spring - Front
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT AODE
View related parts
Mercury Grand Marquis Front Spring
Part Number: F4MY-5310-A
Product Specifications
- Other Name: Spring - Front
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT AODE
View related parts
Mercury Grand Marquis Rear Spring
Part Number: F4AZ5560C
Product Specifications
- Other Name: Spring - Rear
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1997 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts
Mercury Grand Marquis Front Spring
Part Number: F4AZ-5310-J
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Driver Side & Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2002 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts
Mercury Grand Marquis Front Spring
Part Number: F4AZ-5310-E
Product Specifications
- Other Name: Spring - Front
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2001 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts
Mercury Grand Marquis Front Spring
Part Number: F4AZ-5310-C
Product Specifications
- Other Name: Spring - Front
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-2002 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE

| Page 1 of 2 |Next >

1-20 of 33 Results

Mercury Grand Marquis Coil Spring

We provide a wide range of Mercury Grand Marquis Coil Spring at the optimal prices. If you need Mercury Grand Marquis Coil Spring, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Mercury Grand Marquis Coil Spring Parts Questions & Experts Answers

Rear Spring
D9AZ-5560-AE
Q:
How to remove and install rear Coil Spring on Mercury Grand Marquis?
Posted by Ladarius D.
A:
Loosen the wheel lug nuts, raise the rear of the vehicle and support it securely on jackstands placed under the frame. Remove the wheel and block the front wheels. Remove the rear stabilizer bar. Support the rear axle assembly with a jack placed under the axle housing. Position a safety chain through one of the spring coils and around a convenient frame member. This will prevent the spring from flying out before it's fully extended. Unsnap the right parking brake cable clip from the right upper suspension arm. Disconnect the lower studs of the two rear Shock Absorbers from their mounting brackets on the axle tube. Detach the height sensor connector link from the upper control arm. On 1998 and later models, the lateral arms that are part of the Watts linkage must be disconnected at the chassis ends. Slowly lower the jack until the spring is fully extended. Remove the safety chain, coil spring and insulators from between the suspension arm and the spring upper seat. Set the upper insulator on top of the spring, using tape to hold it in place, if necessary. Place the spring between its seat on the axle tube and the frame seat, so that the pigtail (the lower end of the spring) is pointing toward the left side of the vehicle. Raise the axle assembly with the floor jack and insert the studs on the lower ends of the shocks into their holes in the brackets on the axle tubes. Install the stud retaining nuts, but don't fully tighten them yet. Snap the right parking brake cable into the upper suspension arm retainer. Install the rear stabilizer bar. Connect the height sensor connector link to the upper control arm. Remove the jackstands and lower the vehicle. Before attempting to drive a vehicle equipped with air suspension, turn the air suspension switch to On, start the engine and allow the compressor to inflate the air suspension springs (they deflate automatically when the rear of the vehicle is raised).
Answered by Ford Parts Specialist George / Apr 06, 2026
