How do you remove and install knock sensors on Ford Taurus?

Disconnect the cable from the negative battery terminal. For four-cylinder models, the two knock sensors are located on the front side of the block, behind the intake manifold. Remove the intake manifold, then disconnect the electrical connector from the knock sensor. Remove the knock sensor bolt and take out the knock sensor, ensuring the right-hand sensor is installed with the wire end pointing towards the 6 o'clock position and the left side sensor towards the 3 o'clock position. Installation is the reverse of removal, and the knock sensor bolt should be tightened to the specified torque. For V6 models with a 3.0L engine, a single knock sensor is located on the left rear side of the engine block. Raise the rear of the vehicle and support it securely on jackstands, then loosen the knock sensor heat shield and position it aside. Disconnect the knock sensor electrical connector, remove the mounting bolt, and take out the sensor. Installation is the reverse of removal, with the knock sensor bolt tightened to the specified torque. For 3.SL engines, the knock sensors are located in the valley between the cylinder heads, under the coolant pipe, sharing the same wiring harness and needing to be replaced as a pair. Remove the upper and lower intake manifold, then remove the thermostat housing and coolant tube. Disconnect the knock sensor electrical connector, remove the knock sensor bolts, and take out the knock sensors. Installation is the reverse of removal, and the knock sensor bolts should be tightened to the specified torque.

Genuine Ford Taurus Knock Sensor

Engine Knock Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Knock Sensors found

View related parts

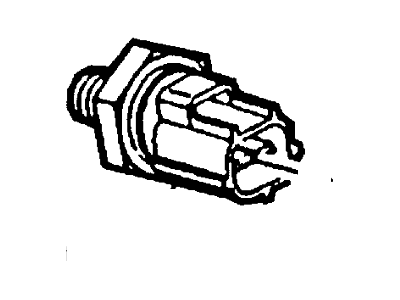

Ford Taurus Sensor - Engine Knock
Part Number: 7T4Z-12A699-AB
$67.91 MSRP: $108.31
You Save: $40.40 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7T4Z-12A699-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2019 Ford Taurus | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, CVT Select Shift Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Taurus Sensor - Engine Knock
Part Number: 1S7Z-12A699-BB
$44.66 MSRP: $70.00
You Save: $25.34 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knock Sensor, Sensor
- Replaces: 1S7Z-12A699-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Taurus | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Taurus Sensor - Engine Knock
Part Number: 2R3Z-12A699-AA
$28.52 MSRP: $44.33
You Save: $15.81 (36%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knock Sensor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2007 Ford Taurus | 6 Cyl 3.0L | 4AT 4F50N, 4AT AX4S
View related parts
Ford Taurus Knock Sensor
Part Number: F6DZ12A699AA
Product Specifications
- Other Name: Sensor - Engine Knock
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-1999 Ford Taurus | 8 Cyl 3.4L | 4AT AX4N, 4AT AX4S
View related parts
Ford Taurus Sensor - Engine Knock
Part Number: YF1Z-12A699-AA
Product Specifications
- Other Name: Knock Sensor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Ford Taurus | 6 Cyl 3.0L | 4AT 4F50N, 4AT AX4N, 4AT AX4S

Ford Taurus Knock Sensor

The Knock Sensor used in Ford Taurus is used to identify engine knock that occurs because ignition timing is off. This device informs the PCM to control the ignition timings in a way that will reduces the detonation which is deemed excessive. Conventionally, Ford Taurus employs piezoelectric knock sensors that transform mechanical impulses to electrical ones and enable the constant measurement of pressure spikes that reflect knock. The Ford Taurus cars that have been produced in the years incorporate comprehensive knock sensor mechanisms that have the capability of optimizing ignition timing per cylinder and control increase in density, improving the performance of the engines as well as their durability. These systems make the Ford Taurus to run efficiently with low octane rated fuels by keeping combustion conditions as desired. The Knock Sensor, therefore, has to be incorporated as a crucial feature for optimal performance of the car AND to prevent the knock sensation from damaging the engine.

We provide a wide range of Ford Taurus Knock Sensor at the best prices possible. If you need Ford Taurus Knock Sensor, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Taurus Knock Sensor Parts Questions & Experts Answers

Sensor - Engine Knock
7T4Z-12A699-AB
Q: How do you remove and install knock sensors on Ford Taurus?
A:
Disconnect the cable from the negative battery terminal. For four-cylinder models, the two knock sensors are located on the front side of the block, behind the intake manifold. Remove the intake manifold, then disconnect the electrical connector from the knock sensor. Remove the knock sensor bolt and take out the knock sensor, ensuring the right-hand sensor is installed with the wire end pointing towards the 6 o'clock position and the left side sensor towards the 3 o'clock position. Installation is the reverse of removal, and the knock sensor bolt should be tightened to the specified torque. For V6 models with a 3.0L engine, a single knock sensor is located on the left rear side of the engine block. Raise the rear of the vehicle and support it securely on jackstands, then loosen the knock sensor heat shield and position it aside. Disconnect the knock sensor electrical connector, remove the mounting bolt, and take out the sensor. Installation is the reverse of removal, with the knock sensor bolt tightened to the specified torque. For 3.SL engines, the knock sensors are located in the valley between the cylinder heads, under the coolant pipe, sharing the same wiring harness and needing to be replaced as a pair. Remove the upper and lower intake manifold, then remove the thermostat housing and coolant tube. Disconnect the knock sensor electrical connector, remove the knock sensor bolts, and take out the knock sensors. Installation is the reverse of removal, and the knock sensor bolts should be tightened to the specified torque.
