How to disconnect the OSS sensor on a Ford Ranger?

Disconnect the cable from the negative battery terminal. Raise the vehicle and place it securely on jackstands. On 4WD models, remove the front driveshaft. The OSS sensor is located on the upper left side of the transmission, at the rear. Note that on some later models, there are three speed sensors on the upper left side of the transmission. The OSS sensor is the rear one. Disconnect the electrical connector from the OSS sensor. Remove the OSS sensor retaining bolt. If you're planning to reuse the old OSS sensor, remove and discard the old 0-ring. Before installing the new 0-ring, lubricate it with petroleum jelly. Installation is the reverse of removal. Be sure to tighten the OSS sensor bolt securely.

How to disconnect and replace the ISS sensor on a Ford Ranger?

Disconnect the negative battery terminal and raise the vehicle on jack stands. Disconnect its electrical connector and remove the retaining bolt. If reusing, discard the old O-ring and lubricate the new one. If installing a new sensor, lubricate its O-ring. Reverse these steps for installation.

How to disconnect and remove the TSS sensor in a Ford Ranger?

Disconnect the cable from the negative battery terminal. Raise the vehicle and place it securely on jackstands. The TSS sensor is located on the left side of the transmission. Detach the shift cable from the cable bracket, then remove the bracket for access. Disconnect the electrical connector from the TSS sensor. Remove the TSS sensor retaining bolt. If you're planning to reuse the old TSS sensor, remove and discard the old 0-ring. Before installing the new 0-ring, lubricate it with petroleum jelly. Installations the reverse of removal. Be sure to tighten the TSS sensor bolt securely.

Genuine Ford Ranger Vehicle Speed Sensor

VSS

Enter your vehicle info to find more parts and verify fitment

Select Vehicle by VIN
Select Vehicle by Model

Select by VIN

Enter your VIN for the most accurate results.

Select by Model

-- Select Make --

-- Select Model --

-- Select Year --

7 Vehicle Speed Sensors found

View related parts

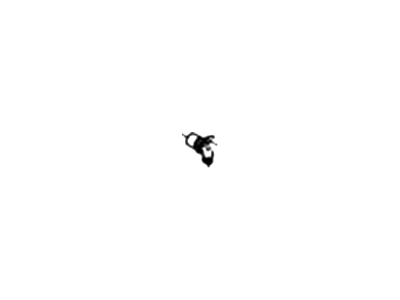

Ford Ranger Sensor Assy - Engine Speed
Part Number: E9LZ-9E731-A
- Replaces: E45Y-9E731-A, E6DZ-9E731-D
$143.66 MSRP: $285.45
You Save: $141.79 (50%)

Add to Cart
More Info
Fits the following Vehicles:
1992-1999 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.5L, 6 Cyl 2.9L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT
Less Info
View related parts

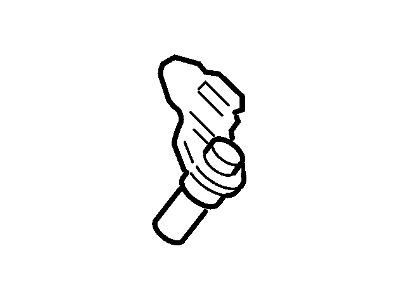

Ford Ranger Sensor Assembly - Tripminder
Part Number: E9TZ-9E731-A
- Other Name: Sensor Assy - Tripminder
- Replaces: E3AZ-9E731-A, E6DZ-9E731-C
$143.66 MSRP: $285.45
You Save: $141.79 (50%)

Add to Cart
More Info
Fits the following Vehicles:
1983-1992 Ford Ranger | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.3L, 6 Cyl 2.8L, 6 Cyl 2.9L, 6 Cyl 3.0L, 6 Cyl 4.0L | 3AT C3, 3AT C5, 4AT A4LD, 4MT, 5MT
Less Info
View related parts
Ford Ranger Sensor Assembly - Engine Speed
Part Number: 6L5Z-7H103-B
- Replaces: 4L5Z-7H103-AA
$54.35 MSRP: $72.91
You Save: $18.56 (26%)

Add to Cart
More Info
Fits the following Vehicles:
2004-2011 Ford Ranger | 4 Cyl 2.3L NA Petrol, 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L SOHC EFI | 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts
Ford Ranger Sensor Assembly - Tripminder
Part Number: E3AZ-9E731-A
- Other Name: SENSOR ASY - TRIPMIN
- Replaced by: E9TZ-9E731-A
$143.66 MSRP: $285.45
You Save: $141.79 (50%)

Add to Cart
More Info
Fits the following Vehicles:
1983-1989 Ford Ranger | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.3L, 6 Cyl 2.8L, 6 Cyl 2.9L | 3AT C3, 3AT C5, 4AT A4LD, 4MT, 5MT
Less Info
View related parts
Ford Ranger Sensor Assy - Engine Speed
Part Number: F7RZ-7H103-BA
$21.32 MSRP: $34.00
You Save: $12.68 (38%)

Add to Cart
More Info
Fits the following Vehicles:
1997-2011 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.3L NA Petrol, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts
Ford Ranger Sensor Assy - Engine Speed
Part Number: 4L5Z-7H103-AA
- Replaced by: 6L5Z-7H103-B
$46.52 MSRP: $72.91
You Save: $26.39 (37%)

Add to Cart
More Info
Fits the following Vehicles:
2004-2005 Ford Ranger | 4 Cyl 2.3L NA Petrol, 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L SOHC EFI | 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
Less Info
View related parts
Ford Ranger Sensor Assembly - Engine
Part Number: 1L5Z-7H103-DA
- Other Name: Sensor Assy - Engine Speed
- Manufacturer Note: 4X4 w/Manual Shift Transfer Case Only (FX4 package)
- Replaced by: 4L5Z-7H103-A
More Info
Fits the following Vehicles:
2002-2003 Ford Ranger | 4 Cyl 2.3L, 6 Cyl 3.0L, 6 Cyl 4.0L | 5AT 5R44E, 5MT
Less Info

Ford Ranger Vehicle Speed Sensor Parts Questions & Answers

Sensor Assy - Engine Speed
F7RZ-7H103-BA
Q: How to disconnect the OSS sensor on a Ford Ranger?
A: Disconnect the cable from the negative battery terminal. Raise the vehicle and place it securely on jackstands. On 4WD models, remove the front driveshaft. The OSS sensor is located on the upper left side of the transmission, at the rear. Note that on some later models, there are three speed sensors on the upper left side of the transmission. The OSS sensor is the rear one. Disconnect the electrical connector from the OSS sensor. Remove the OSS sensor retaining bolt. If you're planning to reuse the old OSS sensor, remove and discard the old 0-ring. Before installing the new 0-ring, lubricate it with petroleum jelly. Installation is the reverse of removal. Be sure to tighten the OSS sensor bolt securely.
Sensor Assembly - Engine Speed
6L5Z-7H103-B
Q: How to disconnect and replace the ISS sensor on a Ford Ranger?
A: Disconnect the negative battery terminal and raise the vehicle on jack stands. Disconnect its electrical connector and remove the retaining bolt. If reusing, discard the old O-ring and lubricate the new one. If installing a new sensor, lubricate its O-ring. Reverse these steps for installation.
Sensor Assembly - Engine
1L5Z-7H103-DA
Q: How to disconnect and remove the TSS sensor in a Ford Ranger?
A: Disconnect the cable from the negative battery terminal. Raise the vehicle and place it securely on jackstands. The TSS sensor is located on the left side of the transmission. Detach the shift cable from the cable bracket, then remove the bracket for access. Disconnect the electrical connector from the TSS sensor. Remove the TSS sensor retaining bolt. If you're planning to reuse the old TSS sensor, remove and discard the old 0-ring. Before installing the new 0-ring, lubricate it with petroleum jelly. Installations the reverse of removal. Be sure to tighten the TSS sensor bolt securely.
