Genuine Ford Ranger Fuel Rail

Engine Fuel Rail

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Fuel Rails found

View related parts

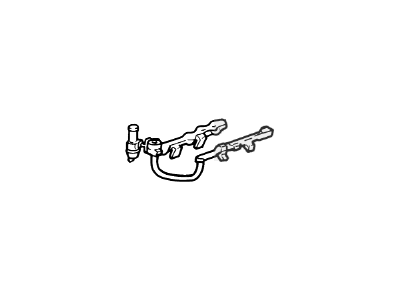

Ford Ranger Fuel Supply Manifold Assembly
Part Number: 4L5Z-9D280-AE
$333.27 MSRP: $572.73
You Save: $239.46 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply; Fuel Rail
- Replaces: 7L5Z-9D280-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2011 Ford Ranger | 4 Cyl 2.3L NA Petrol | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

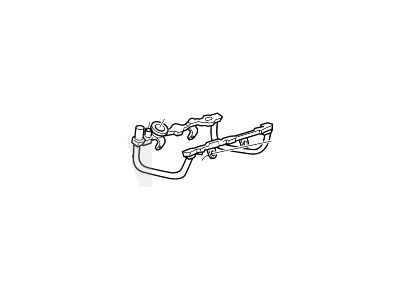

Ford Ranger Fuel Rail
Part Number: 1L2Z-9D280-ED
$212.22 MSRP: $332.00
You Save: $119.78 (37%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply
- Position: Passenger Side
- Replaces: 1L2Z-9D280-EA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R44E, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, 5AT 5R44E, 5AT 5R55E, 5MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

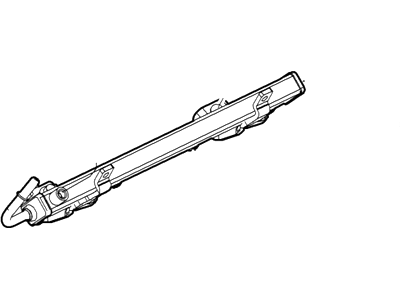

Ford Ranger Fuel Supply Manifold Assembly
Part Number: 7L5Z-9D280-A
$333.27 MSRP: $572.73
You Save: $239.46 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply
- Replaced by: 4L5Z-9D280-AE
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Ford Ranger | 4 Cyl 2.3L NA Petrol | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: JT4Z-9D280-E
$108.88 MSRP: $183.64
You Save: $74.76 (41%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply; Fuel Rail
- Replaces: JT4Z-9D280-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Ranger | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: 1L2Z-9D280-EA
$212.22 MSRP: $332.00
You Save: $119.78 (37%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply
- Replaced by: 1L2Z-9D280-ED
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: ML3Z-9D280-F
$207.92 MSRP: $334.55
You Save: $126.63 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MANIFOLD ASY - FUEL SUPPLY; Fuel Rail
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Ranger | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: K2GZ-9D280-B
$254.25 MSRP: $409.09
You Save: $154.84 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MANIFOLD ASY - FUEL SUPPLY; Fuel Rail
- Replaces: K2GZ-9D280-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2025 Ford Ranger | 4 Cyl 2.3 L GAS, 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS | 10-Speed Automatic Transmission (10R80), 2 Whl L/H Rear Drive-High Ride, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: ML3Z-9D280-E
$175.56 MSRP: $280.00
You Save: $104.44 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MANIFOLD ASY - FUEL SUPPLY; Fuel Rail
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Ranger | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: K2GZ-9D280-A
$254.25 MSRP: $409.09
You Save: $154.84 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply; Fuel Rail
- Replaced by: K2GZ-9D280-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Ranger | 4 Cyl 2.3L TIVCT DI TC | 10-Speed Automatic Transmission (10R80), 2 Whl L/H Rear Drive-High Ride, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: PB5Z-9D280-D
$233.91 MSRP: $376.36
You Save: $142.45 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MANIFOLD ASY - FUEL SUPPLY; Fuel Rail
- Replaces: PB5Z-9D280-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Ranger | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: PB5Z-9D280-C
$233.91 MSRP: $376.36
You Save: $142.45 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MANIFOLD ASY - FUEL SUPPLY; Fuel Rail
- Replaces: PB5Z-9D280-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024-2025 Ford Ranger | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: 7L5Z-9F792-A
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2008 Ford Ranger | 6 Cyl 3.0L OHV EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: 4L5Z-9F792-AA
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply; Fuel Rail
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2006 Ford Ranger | 6 Cyl 3.0L OHV EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Fuel Rail
Part Number: 4L5Z-9D280-AA
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004 Ford Ranger | 4 Cyl 2.3L NA Petrol | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: 6L2Z-9D280-B
Product Specifications
- Other Name: Manifold Assembly - Fuel Supply; Fuel Rail
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Ford Ranger | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: XL5Z-9F792-EA
Product Specifications
- Other Name: Manifold Assembly - Fuel ; Manifold Assy - Fuel Supply
- Manufacturer Note: Flex fuel only
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Ford Ranger | 6 Cyl 3.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: XL5Z-9F792-DA
Product Specifications
- Other Name: Manifold Assembly - Fuel ; Manifold Assy - Fuel Supply
- Manufacturer Note: Canada & Mexico Unleaded fuel only
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Ford Ranger | 6 Cyl 3.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: F87Z-9D280-AA
Product Specifications
- Other Name: Manifold Assembly - Fuel ; Manifold Assy - Fuel Supply
- Manufacturer Note: #F87E 9S441-AE/XL5E 9S441-AA. Also service hose 9F895 & connector fitting 9J274 off the fuel dampner 9F775, 2.5L, gas
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2001 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: 1L5Z-9F792-EA
Product Specifications
- Other Name: Manifold Assembly - Fuel ; Manifold Assy - Fuel Supply
- Manufacturer Note: Flex Fuel Ethanol
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2003 Ford Ranger | 6 Cyl 3.0L | 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Fuel Supply Manifold Assembly
Part Number: 1L5Z-9F792-AA
Product Specifications
- Other Name: Manifold Assembly - Fuel ; Manifold Assy - Fuel Supply
- Manufacturer Note: Also service details 9H321/9H323/9F775 , Unleaded fuel only
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Ford Ranger | 6 Cyl 3.0L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT

| Page 1 of 2 |Next >

1-20 of 23 Results

Ford Ranger Fuel Rail

The Fuel Rail of a Ford Ranger is a tube that delivers pressurized gasoline to the fuel injectors. Through the specific nozzle of each injector, every cylinder in the engine of the Ford Ranger will get the necessary spray to create smooth power and clean emissions. The first Ford pickups which applied throttle body injection kept the Fuel Rail inside the compact TBI unit. In this case, one or two injectors, perched above the throttle plates, did all the cylinders. But later Ranger engines adopted a multipoint layout, with a metal or composite Fuel Rail along the intake runners. Thus individual port injectors can meter their fuel right next to each valve. This modification gave the PCM more freedom, and the new Fuel Rail design improved throttle response and economy for Ranger drivers. The updated iteration of the Ranger series has incorporated a high-pressure common rail that accommodates gasoline direct injection. This system operates at several thousand psi to ensure ultra-fine droplets reach the combustion chamber at the optimal moment. This addition is said to boost torque while reducing fuel consumption. Throughout these stages, the Fuel Rail remained a rigid, sealed manifold. It was sized to provide steady pressure, and each Ford engine revision improved materials and fittings to meet rising demands from modern Ford powertrains.

We provide a wide range of Ford Ranger Fuel Rail at the optimal prices. If you need Ford Ranger Fuel Rail, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.
