How to remove and replace the A/C Orifice Tube in the air conditioning system on a Ford Mustang?

A spring lock coupling tool is necessary to remove the orifice tube. The orifice tube changes the high-pressure liquid refrigerant into a low-pressure liquid. First, have the air conditioning system discharged by a dealer service department or by an automotive air conditioning shop. Then, remove the line clip and disconnect the condenser to evaporator line with a spring lock tool. Next, remove the orifice tube from the line with a pair of needle-nose pliers. If it's really stuck or breaks off, special extractor tools are available at most auto parts stores. The orifice tube is equipped with a tapered mesh screen that must be clean and free of damage. Installation is the reverse of removal. Be sure to remove and discard the old O-rings and replace them with new ones. Finally, take the vehicle back to the shop that discharged it. Have the system evacuated, recharged, and leak tested.

Genuine Ford Mustang A/C Orifice Tube

A/C Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 A/C Orifice Tubes found

View related parts

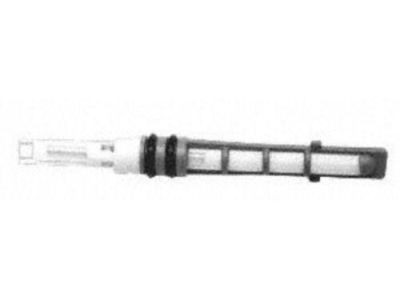

Ford Mustang Orifice Tube
Part Number: F5DZ-19D990-AB
$5.40 MSRP: $8.75
You Save: $3.35 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Restrictor; Orifice, Orifice Tube, Refrigerant Hose Connector
- Replaces: F5DZ-19D990-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2006 Ford Mustang | 6 Cyl 3.8L, 6 Cyl 3.8L OHV EFI, 6 Cyl 3.9L OHV EFI NA, 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L, 8 Cyl 4.6L DOHC EFI, 8 Cyl 4.6L DOHC EFI S/C, 8 Cyl 4.6L SOHC EFI, 8 Cyl 5.0L, 8 Cyl 5.8L DOHC SC | 4AT 4R70W, 4AT 4R75W, 4AT AOD-E, 4-Speed Automatic Transmission 4R70W (AODE), 5MT, 5-Speed Automatic Transmission 5R55S, 5-Speed Manual Transmission (T450D), 5-Speed Manual Transmission T5OD, 5-Speed Manual Transmission TR3650, 6-Speed Manual Transmission Tremec T56, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Mustang Restrictor
Part Number: F5XZ-19D990-AB
$5.20 MSRP: $8.42
You Save: $3.22 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal - Special; Orifice, Restrictor
- Replaces: F5XZ-19D990-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2009 Ford Mustang | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L SOHC EFI, 8 Cyl 5.4L DOHC EFI S/C ALUM, 8 Cyl 5.8L DOHC SC | 5-Speed Automatic Transmission 5R55S, 5-Speed Manual Transmission T5OD, 5-Speed Manual Transmission TR3650, 6-Speed Manual Transmission (T56), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- 1991-1995 Ford Mustang | 4 Cyl 2.3L, 6 Cyl 3.8L, 8 Cyl 5.0L | 4AT A4LD, 4AT AOD, 4AT AOD-E, 5MT
View related parts
Ford Mustang Special Seal
Part Number: F5XZ-19D990-AA
$5.20 MSRP: $8.42
You Save: $3.22 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal - Special
- Replaced by: F5XZ-19D990-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1991-1995 Ford Mustang | 4 Cyl 2.3L, 6 Cyl 3.8L, 8 Cyl 5.0L | 4AT A4LD, 4AT AOD, 4AT AOD-E, 5MT

Ford Mustang A/C Orifice Tube

The A/C Orifice Tube of Ford Mustang vehicles maintains vital control over liquid refrigerant movement through separating the low side from the high side within the A/C system. While the moving components in an expansion valve control pressure levels the A/C Orifice Tube operates as a stationary component that decides how much refrigerant moves toward the compressor. The accumulation of debris in the A/C Orifice Tube gradually reduces performance by causing inconsistent cooling or smoothing of the evaporator. The Ford A/C Orifice Tube exists in several Mustang models which position near the junction between condenser and evaporator. Regular maintenance remains vital for A/C functionality because non-replacement of a clogged orifice tube or a worn out one causes severe performance issues to the A/C system. Regular checks of the A/C Orifice Tube combined with suitable maintenance tasks such as cleaning or replacement ensure Ford Mustang vehicles keep their A/C system operating at peak levels.

We provide a wide range of Ford Mustang A/C Orifice Tube at the optimal prices. If you need Ford Mustang A/C Orifice Tube, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Mustang A/C Orifice Tube Parts Questions & Experts Answers

Orifice Tube
F5DZ-19D990-AB
Q:
How to remove and replace the A/C Orifice Tube in the air conditioning system on a Ford Mustang?
A:
A spring lock coupling tool is necessary to remove the orifice tube. The orifice tube changes the high-pressure liquid refrigerant into a low-pressure liquid. First, have the air conditioning system discharged by a dealer service department or by an automotive air conditioning shop. Then, remove the line clip and disconnect the condenser to evaporator line with a spring lock tool. Next, remove the orifice tube from the line with a pair of needle-nose pliers. If it's really stuck or breaks off, special extractor tools are available at most auto parts stores. The orifice tube is equipped with a tapered mesh screen that must be clean and free of damage. Installation is the reverse of removal. Be sure to remove and discard the old O-rings and replace them with new ones. Finally, take the vehicle back to the shop that discharged it. Have the system evacuated, recharged, and leak tested.
