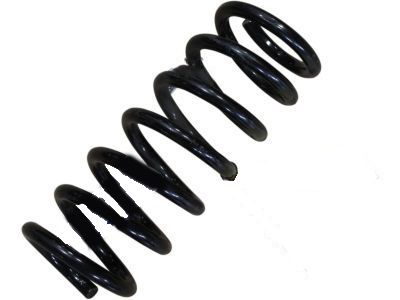

Ford Fusion Coil Spring
Part Number: AH6Z-5310-B
$99.79 MSRP: $136.35
You Save: $36.56 (27%)
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive
View related parts

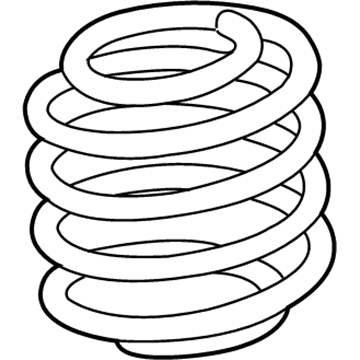

Ford Fusion Coil Spring
Part Number: AE5Z-5310-F
$103.40 MSRP: $141.28
You Save: $37.88 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

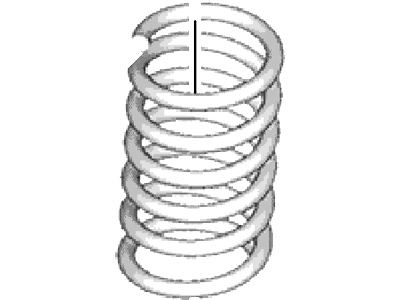

Ford Fusion Coil Spring
Part Number: DG9Z-5560-S
$113.20 MSRP: $165.50
You Save: $52.30 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaces: DG9Z-5560-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

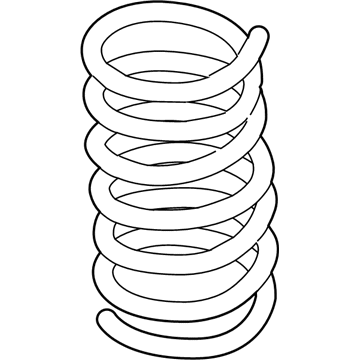

Ford Fusion Coil Spring
Part Number: DG9Z-5560-G
$120.84 MSRP: $176.67
You Save: $55.83 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: DG9Z-5560-R
$121.98 MSRP: $178.33
You Save: $56.35 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Replaces: DG9Z-5560-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: JG9Z-5310-D
$73.42 MSRP: $107.33
You Save: $33.91 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Replaces: DG9Z-5310-BD, DG9Z-5310-B, HG9Z-5310-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS
View related parts
Ford Fusion Coil Spring
Part Number: JP5Z-5310-C
$75.70 MSRP: $110.67
You Save: $34.97 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Replaces: HP5Z-5310-A, HP5Z-5310-D, HP5Z-5310-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS
View related parts
Ford Fusion Coil Spring
Part Number: DG9Z-5310-S
$98.95 MSRP: $144.67
You Save: $45.72 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaces: DG9Z-5310-N, DG9Z-5310-BL
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: DG9Z-5310-R
$98.15 MSRP: $143.50
You Save: $45.35 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaces: DG9Z-5310-F, DG9Z-5310-BJ
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: AE5Z-5560-C
$42.86 MSRP: $59.55
You Save: $16.69 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | 6 Cyl 3.0L OHC Duratec | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: 8E5Z-5560-F
$81.60 MSRP: $113.36
You Save: $31.76 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Replaces: 6E5Z-5560-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | 4 Cyl 2.3L | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: HG9Z-5560-D
$128.82 MSRP: $188.33
You Save: $59.51 (32%)
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Replaces: DG9Z-5560-Z, DG9Z-5560-BQ, DG9Z-5560-Q
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Front Spring
Part Number: DG9Z-5310-F
$98.15 MSRP: $143.50
You Save: $45.35 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaced by: DG9Z-5310-R
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2014 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Rear Spring
Part Number: 6E5Z-5560-AA
Product Specifications
- Other Name: Spring - Rear
- Position: Rear
- Replaced by: 8E5Z-5560-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Fusion | 4 Cyl 2.3L | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Rear Spring
Part Number: AE5Z-5560-A
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | 4 Cyl 2.5L Duratec HE PFI, 6 Cyl 3.0L OHC Duratec | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Coil Spring
Part Number: DG9Z-5310-H
$74.67 MSRP: $109.17
You Save: $34.50 (32%)
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaces: DG9Z-5310-BM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Fusion | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Rear Spring
Part Number: DG9Z-5560-B
$109.67 MSRP: $160.33
You Save: $50.66 (32%)
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS
View related parts
Ford Fusion Rear Spring
Part Number: DG9Z-5560-H
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS
View related parts
Ford Fusion Front Spring
Part Number: AE5Z-5310-A
Product Specifications
- Other Name: Spring - Front; Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | 4 Cyl 2.5L Duratec HE PFI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Rear Spring
Part Number: 8E5Z-5560-G
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Spring
- Position: Rear
- Replaces: 6E5Z-5560-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | 6 Cyl 3.0L DOHC EFI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
