Genuine Ford Excursion Battery Cable

Ford Excursion Battery Cable Parts Questions & Answers

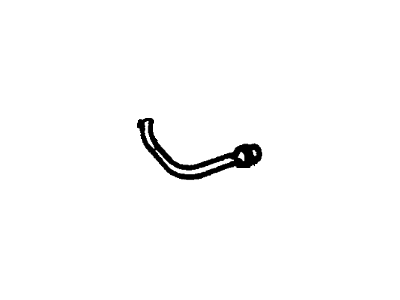

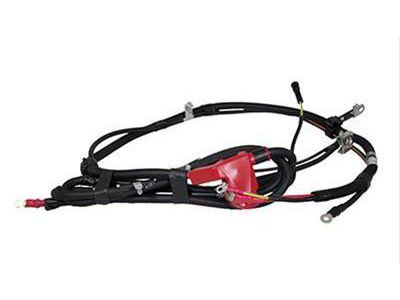

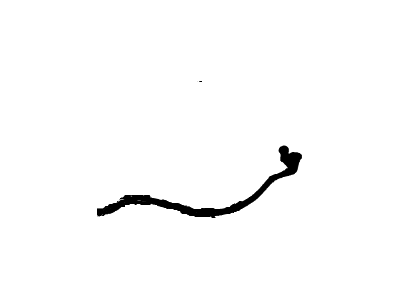

• Cable Assembly-Battery
  2C3Z-14300-CA
  Q: How to inspect and replace battery cables?

  A: Periodically inspect the entire length of each battery cable for damage, cracked or burned insulation, and corrosion. Poor battery cable connections can cause starting problems and decreased engine performance. Check the cable-to-terminal connections at the ends of the cables for cracks, loose wire strands, and corrosion. The presence of white, fluffy deposits under the insulation at the cable terminal connection is a sign that the cable is corroded and should be replaced. Check the terminals for distortion, missing mounting bolts, and corrosion. When removing the cables, always disconnect the negative cable from the negative battery post first and hook it up last, or the battery may be shorted by the tool used to loosen the cable clamps. Even if only the positive cable is being replaced, be sure to disconnect the negative cable from the negative battery post first. Disconnect the old cables from the battery, then disconnect them from the opposite end. Detach the cables from the starter solenoid, the relay and fuse box, and ground terminals, as necessary. Note the routing of each cable to ensure correct installation. If you are replacing either or both of the battery cables, take them with you when buying new cables. It is vitally important that you replace the cables with identical parts. Cables have characteristics that make them easy to identify: Positive cables are usually red and larger in cross-section; ground cables are usually black and smaller in cross-section. Clean the threads of the starter solenoid or ground connection with a wire brush to remove rust and corrosion. Apply a light coat of battery terminal corrosion inhibitor or petroleum jelly to the threads to prevent future corrosion. Attach the cable to the terminal and tighten the mounting nut/bolt securely. Before connecting a new cable to the battery, make sure that it reaches the battery post without having to be stretched. After installing the cables, connect the negative cable to the negative battery post.
