Genuine Ford Escape Spark Plug

Ford Escape Spark Plug Parts Questions & Answers

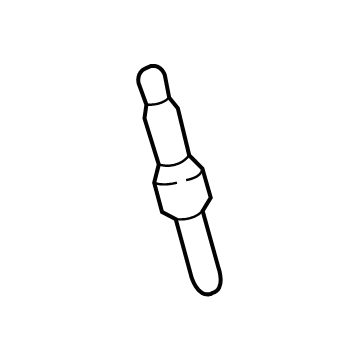

• Spark Plug
  AGSF-22F-CM
  Q: How to check and replace the Spark Plug on Ford Escape?

  A: On these vehicles, the spark plugs are placed at the top of the engine. Usually, tools required for spark plug replacement include a ratchet-fitted spark plug socket (spark plug sockets are padded on the inside to avoid damage to new plugs' porcelain insulators), different extensions, and a gap gauge to verify and modify gaps of new plugs. The new plugs should be tightened with a torque wrench. Adjust new ones in advance and replace them one by one is suggested when replacing the spark plugs. When buying new spark plugs, make sure you get the correct type for your engine; this can be found in the factory owner's manual. Wait until the engine has cooled off entirely before attempting to remove any of its plugs; these engines have aluminum cylinder heads that can be destroyed if they are taken out while still hot. While waiting for it to cool down completely check over each of your new ones for defects and adjust their gaps accordingly: insert proper thickness gauge between electrodes at tip of plug-gauge should just slide between electrodes with slight drag-if gap is wrong use adjuster on body of gauge to bend curved side electrode slightly until proper gap obtained-only bend side electrode not center or else risk cracking or chipping surrounding porcelain insulator around center electrode-if side electrode isn't directly above center then bend it with adjuster until directly so-look carefully at insulator if cracked don't use this particular plug-only wire-type gauges should ever be used on platinum or iridium type sparkplugs as other types will scrape thin coating from electrodes thereby significantly shortening life span On V6 engines remove engine cover & intake manifold; some engines have individual Ignition Coils which must first be removed in order access plugs-disconnect electrical connector & pull straight up/outward from coilpack mounting bracket; on remaining motors remove one wire but do not yank cable itself out (use tool); compressed air may also blow debris away from hole around plug so nothing falls into cylinder while removing it-place socket over top of plug & remove by turning counterclockwise; use ratchet+extension to take them out; compare with pictures shown for general running condition Apply small amount of anti-seize compound to threads before installing new one-put in until no more turning can be done by hand then tighten with torque wrench or ratchet (if torquing is not possible) but remember to thread first few turns gently using short length rubber hose slipped over end of plug as tool because hose grips enough but starts slipping if plug starts cross-threading which protects against damaged threads requiring costly repairs On V6 engines check ignition coil before pushing onto end inspect when four cylinder spark plugs Repeat steps for other plugs.
