How to remove and install a Headlamp housing on Ford Escape?

Turn off Headlamp and ignition switches. Remove front bumper cover. Disconnect electrical connector from Headlamp housing. Remove lower housing mounting bolts. Remove upper housing mounting bolt and nut. Carefully remove Headlamp housing. Reverse steps for installation.

How to adjust the Headlamp on Ford Escape?

The Headlamps must be aimed correctly. If adjusted incorrectly they could blind the driver of an oncoming vehicle and cause a serious accident or seriously reduce your ability to see the road. The Headlamps should be checked for proper aim every 12 months and any time a new Headlamp is installed or front end body work is performed. It should be emphasized that the following procedure is only an interim step that will provide temporary adjustment until the Headlamps can be adjusted by a properly equipped shop. The vertical adjustment screws are located behind each Headlamp. There are no horizontal adjustment screws. There are several methods for adjusting the Headlamps. The simplest method requires masking tape, a blank wall and a level floor. Position masking tape vertically on the wall in reference to the vehicle centerline and the centerlines of both Headlamps. Position horizontal tapeline in reference to the centerline of all the Headlamps. It may be easier to position the tape on the wall with the vehicle parked only a few inches away. Adjustment should be made with the vehicle parked 25 feet from the wall, sitting level, the gas tank half-full and no heavy loading the vehicle. Starting with the low beam adjustment, position the high intensity zone so it is two inches below the horizontal line. Adjustment is made by turning the adjusting screw clockwise to raise the beam and counter-clockwise to lower the beam. With the high beams on, the high intensity zone should be vertically centered with the exact center just below the horizontal line. It may not be possible to position the Headlamp aim exactly for both high and low beams. If a compromise must be made, keep in mind that the low beams are the most used and have the greatest effect on safety. Have the Headlamps adjusted by a dealer service department or service station at the earliest opportunity.

Genuine Ford Escape Headlamp

Headlight

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

49 Headlamps found

View related parts
Ford Escape Headlight Assembly
Part Number: 4L8Z-13008-AB
$79.98 MSRP: $109.29
You Save: $29.31 (27%)
ADD TO CART
Product Specifications
- Other Name: Headlamp Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004 Ford Escape | 4 Cyl 2.0L Zetec EFI, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Composite Assembly
Part Number: 7L8Z-13008-A
$77.25 MSRP: $105.55
You Save: $28.30 (27%)
ADD TO CART
Product Specifications
- Other Name: Headlamp Assembly; Composite Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Passenger Side
- Replaces: 6L8Z-13008-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts

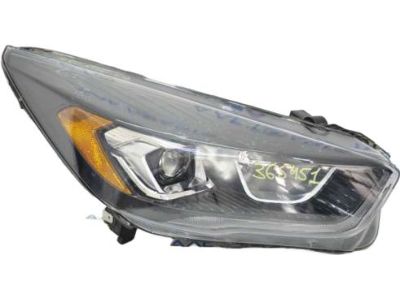

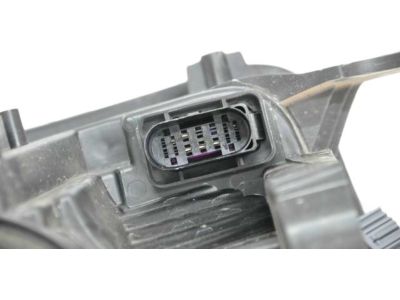

Ford Escape Lamp Assembly

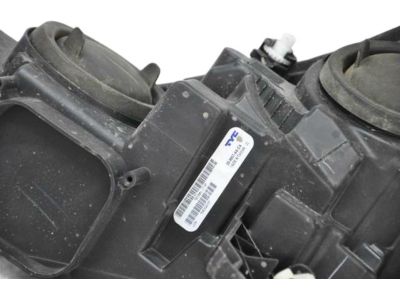

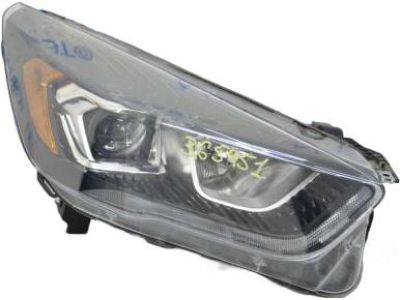

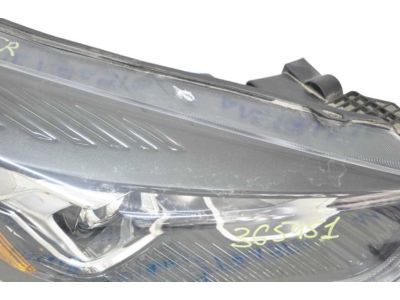

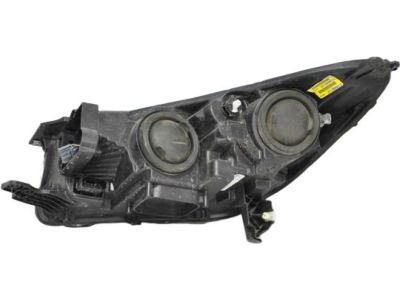

Part Number: GJ5Z-13008-L
$701.91 MSRP: $1119.47
You Save: $417.56 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: GJ5Z-13008-U
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Headlamp Assembly
Part Number: GJ5Z-13008-A
$460.97 MSRP: $544.63
You Save: $83.66 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: GJ5Z-13008-N
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Headlamp Assembly
Part Number: 6L8Z-13008-AA
$77.25 MSRP: $105.55
You Save: $28.30 (27%)
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: 7L8Z-13008-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Headlamp Assembly
Part Number: GJ5Z-13008-E
$701.91 MSRP: $1119.47
You Save: $417.56 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Complete Assembly
- Position: Passenger Side
- Replaced by: GJ5Z-13008-U
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Headlamp Assembly
Part Number: GJ5Z-13008-B
$424.78 MSRP: $498.56
You Save: $73.78 (15%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Position: Driver Side
- Replaced by: GJ5Z-13008-P
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Composite Assembly
Part Number: CJ5Z-13008-D
$379.43 MSRP: $435.13
You Save: $55.70 (13%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp Assembly; Composite Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts

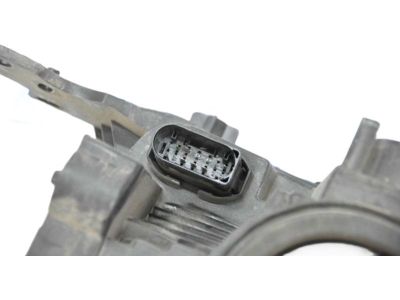

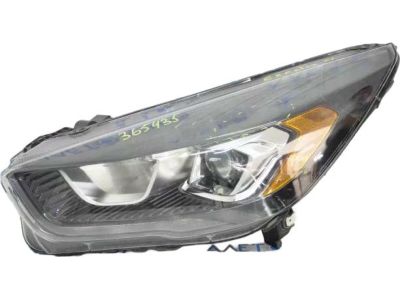

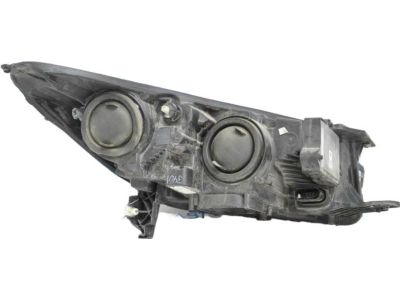

Ford Escape Lamp Assembly

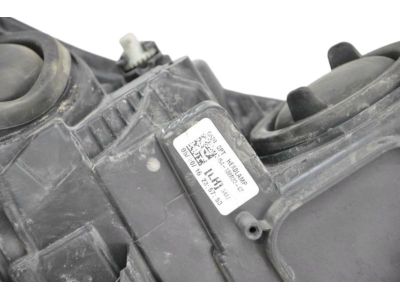

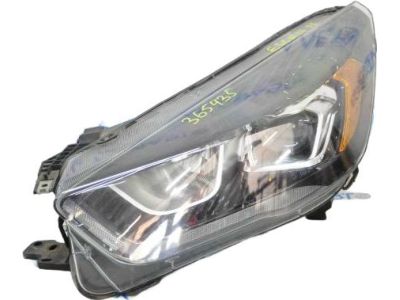

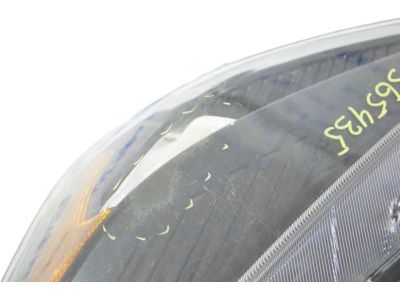

Part Number: GJ5Z-13008-M
$884.94 MSRP: $1353.12
You Save: $468.18 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Driver Side
- Replaced by: GJ5Z-13008-V
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts

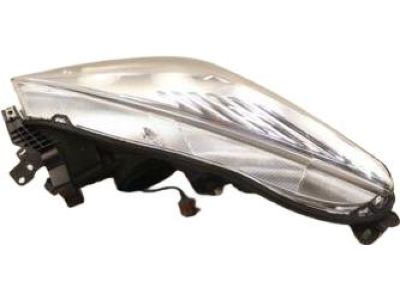

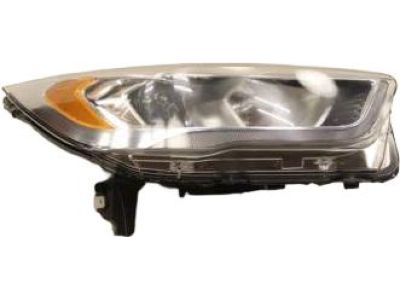

Ford Escape Lamp Assembly

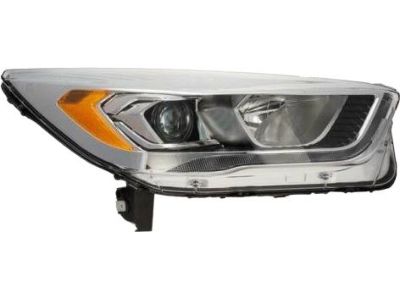

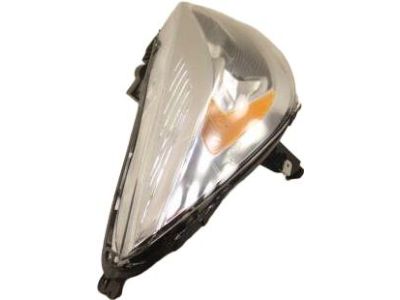

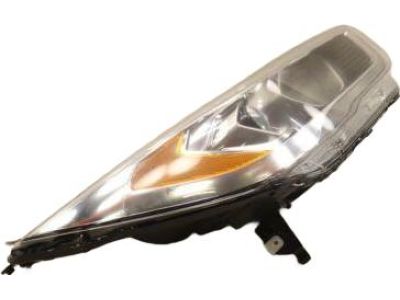

Part Number: GJ5Z-13008-J
$846.80 MSRP: $955.33
You Save: $108.53 (12%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: GJ5Z-13008-S
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Composite Assembly
Part Number: CJ5Z-13008-C
$382.41 MSRP: $423.78
You Save: $41.37 (10%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp Assembly; Composite Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Composite Assembly
Part Number: LJ6Z-13008-B
$1125.92 MSRP: $1346.80
You Save: $220.88 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp Assembly; Composite Assembly, Headlamp Assembly
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2025 Ford Escape | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Composite Assembly

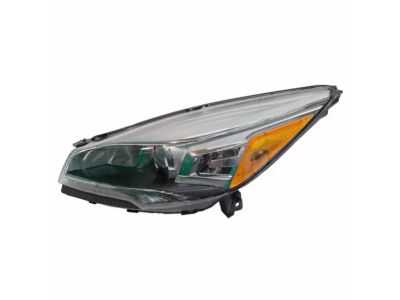

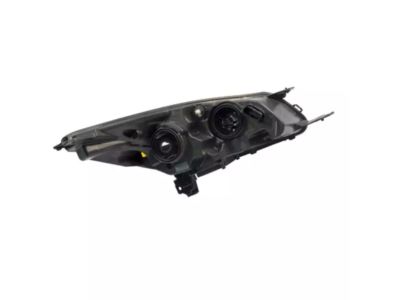

Part Number: CJ5Z-13008-B
$719.22 MSRP: $1147.08
You Save: $427.86 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp Assembly; Composite Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Headlamp Assembly
Part Number: CJ5Z-13008-BCP
$710.86 MSRP: $1166.49
You Save: $455.63 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts

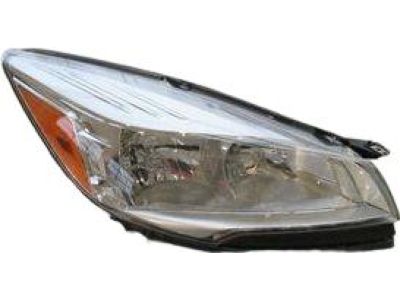

Ford Escape Headlamp Assembly
Part Number: CJ5Z-13008-CCP
$248.22 MSRP: $423.76
You Save: $175.54 (42%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Lamp Assembly
Part Number: GJ5Z-13008-G
$685.20 MSRP: $1030.68
You Save: $345.48 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Decontented Headlamp - Does Not Include Bulbs, Sockets, Ballast, Covers Or Front Catcher Bracket
- Position: Passenger Side
- Replaced by: GJ5Z-13008-Q
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Lamp Assembly
Part Number: GJ5Z-13008-H
$718.41 MSRP: $1080.63
You Save: $362.22 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Decontented Headlamp - Does Not Include Bulbs, Sockets, Ballast, Covers Or Front Catcher Bracket
- Position: Driver Side
- Replaced by: GJ5Z-13008-R
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Headlamp Assembly
Part Number: 8L8Z-13008-BCP
Product Specifications
- Other Name: Headlamp Assy
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2012 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI Modular, 6 Cyl 3.0L OHC Duratec | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Headlamp Assembly
Part Number: 8L8Z-13008-B
Product Specifications
- Other Name: Headlamp Assy; Composite Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2012 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI Modular, 6 Cyl 3.0L OHC Duratec | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Headlamp Assembly
Part Number: 8L8Z-13008-ACP
Product Specifications
- Other Name: Headlamp Assy
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2012 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI Modular, 6 Cyl 3.0L OHC Duratec | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

| Page 1 of 3 |Next >

1-20 of 49 Results

Ford Escape Headlamp

The Ford Escape's Headlamp is as a screwed or clipped assemblies which has a very important role of illuminating the road ahead thus enabling safe driving during conditions of fog or at night. Improved composite Headlamps that have been advanced to fit the modern automobiles are flexible on styling and aerodynamics' whilst incorporating different types of lightning such as LEDs, projector beams among others. The signs that may suggest that Headlamp in the Ford Escape is failing include when it starts to emit a low beam, blinks, has some of its modes not working, or stops working completely it becomes necessary to replace it in order to prevent averted accidents. It is also important to look at the vehicle configuration, the model year, make, and model to get the correct type of replacement Headlamp and to get the Headlamp to perform at its optimal. On balance, the Ford Escape's Headlamp is an important component that relates to the driver's protection, and efficacy of the vehicle as a whole.

We provide a wide range of Ford Escape Headlamp at the optimal prices. If you need Ford Escape Headlamp, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Escape Headlamp Parts Questions & Experts Answers

Headlamp Assembly
8L8Z-13008-ACP
Q:
How to remove and install a Headlamp housing on Ford Escape?
Posted by Tricia H.
A:
Turn off Headlamp and Ignition Switches. Remove front bumper cover. Disconnect electrical connector from Headlamp housing. Remove lower housing mounting bolts. Remove upper housing mounting bolt and nut. Carefully remove Headlamp housing. Reverse steps for installation.
Answered by Ford Parts Specialist Sonny / Jan 25, 2025
Headlamp Assembly
8L8Z-13008-A
Q:
How to adjust the Headlamp on Ford Escape?
Posted by Torrey H.
A:
The Headlamps must be aimed correctly. If adjusted incorrectly they could blind the driver of an oncoming vehicle and cause a serious accident or seriously reduce your ability to see the road. The Headlamps should be checked for proper aim every 12 months and any time a new Headlamp is installed or front end body work is performed. It should be emphasized that the following procedure is only an interim step that will provide temporary adjustment until the Headlamps can be adjusted by a properly equipped shop. The vertical adjustment screws are located behind each Headlamp. There are no horizontal adjustment screws. There are several methods for adjusting the Headlamps. The simplest method requires masking tape, a blank wall and a level floor. Position masking tape vertically on the wall in reference to the vehicle centerline and the centerlines of both Headlamps. Position horizontal tapeline in reference to the centerline of all the Headlamps. It may be easier to position the tape on the wall with the vehicle parked only a few inches away. Adjustment should be made with the vehicle parked 25 feet from the wall, sitting level, the gas tank half-full and no heavy loading the vehicle. Starting with the low beam adjustment, position the high intensity zone so it is two inches below the horizontal line. Adjustment is made by turning the adjusting screw clockwise to raise the beam and counter-clockwise to lower the beam. With the high beams on, the high intensity zone should be vertically centered with the exact center just below the horizontal line. It may not be possible to position the Headlamp aim exactly for both high and low beams. If a compromise must be made, keep in mind that the low beams are the most used and have the greatest effect on safety. Have the Headlamps adjusted by a dealer service department or service station at the earliest opportunity.
Answered by Ford Parts Specialist Joseph / Aug 25, 2024
