How to remove and install the High pressure fuel pump in four cylinder engine on 2014 Ford Taurus?

To remove the fuel pump, first relieve the fuel system pressure, then disconnect the cable from the negative battery terminal. Next, remove the air filter housing intake duct and disconnect the fuel injection pump electrical connector. Carefully remove the pump insulator from around the outside of the pump, taking care to spread the openings of the fuel injection pump noise insulator to minimize damage. Disconnect the quick disconnect line and remove the fuel line from the fuel pump, then loosen and remove the fuel lines using a flare nut wrench. Slide the heater hose clip forward and up to expose the fuel pump shield bolts, then remove the shield bolts and shield. Loosen the fuel pump mounting bolts evenly, one complete turn at a time, until the bolts and pump can be removed, ensuring to replace the bolts afterward. Discard the fuel pump O-ring. For installation, check the pump tappet in the pump body for wear or damage before installing a new O-ring on the pump and applying clean oil to both the pump tappet and the O-ring. Rotate the engine until the cam lobe for the fuel injection pump is at its lowest point, then set the pump in the housing and install the new bolts hand tight. Tighten the bolts in even stages, alternating between them, to the specified torque. The remainder of the installation follows the reverse order of removal.

Genuine 2014 Ford Taurus Fuel Pump

Gas Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Fuel Pumps found

View related parts

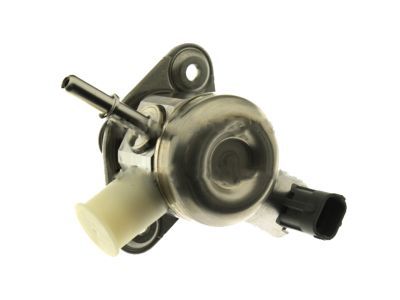

2014 Ford Taurus Fuel Pump
Part Number: AA5Z-9350-A
$856.70 MSRP: $1293.33
You Save: $436.63 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Fuel; Fuel Pump
- Base No.: 9350
- Item Weight: 2.40 Pounds
- Item Dimensions: 7.3 x 7.4 x 6.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: AA5Z-9350-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 6 Cyl 3.5L DOHC T/C | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

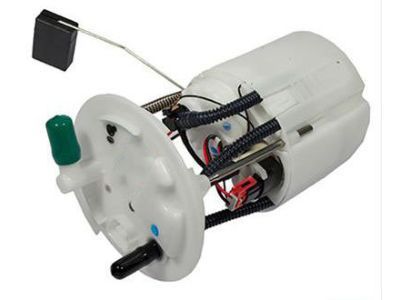

2014 Ford Taurus Fuel Pump
Part Number: DG1Z-9H307-R
$420.79 MSRP: $687.27
You Save: $266.48 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Fuel Pump, Fuel Pump Assembly
- Replaces: DG1Z-9H307-K, PFS-961
- Base No.: 9H307
- Item Weight: 4.40 Pounds
- Item Dimensions: 17.2 x 13.1 x 10.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: DG1Z-9H307-R
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

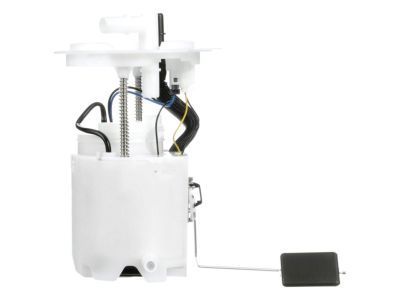

2014 Ford Taurus Fuel Pump
Part Number: DA5Z-9H307-F
$415.16 MSRP: $713.45
You Save: $298.29 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Fuel Pump, Fuel Pump Assembly
- Position: Passenger Side
- Replaces: DA5Z-9H307-C, PFS-944
- Base No.: 9H307
- Item Weight: 4.10 Pounds
- Item Dimensions: 10.4 x 14.2 x 17.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: DA5Z-9H307-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 6 Cyl 3.5L DOHC T/C | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

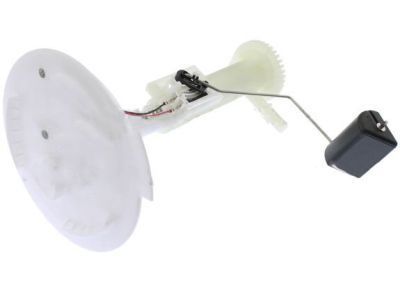

2014 Ford Taurus Fuel Pump
Part Number: DG1Z-9275-A
$107.69 MSRP: $174.45
You Save: $66.76 (39%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Pump, Fuel Pump Assembly
- Base No.: 9275
- Item Weight: 2.90 Pounds
- Item Dimensions: 7.7 x 10.5 x 13.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: DG1Z-9275-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

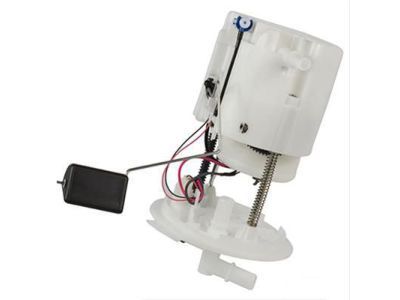

2014 Ford Taurus Fuel Pump
Part Number: DG1Z-9H307-P
$403.73 MSRP: $693.82
You Save: $290.09 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Fuel Pump, Fuel Pump Assembly
- Position: Passenger Side
- Replaces: DG1Z-9H307-J, PFS-960
- Base No.: 9H307
- Item Weight: 4.50 Pounds
- Item Dimensions: 10.4 x 14.5 x 17.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: DG1Z-9H307-P
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
2014 Ford Taurus Fuel Pump
Part Number: AG9Z-9350-B
$404.75 MSRP: $605.00
You Save: $200.25 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Fuel; Fuel Pump
- Replaces: AG9Z-9350-AA
- Base No.: 9350
- Item Weight: 2.40 Pounds
- Item Dimensions: 8.4 x 6.2 x 6.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: AG9Z-9350-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
2014 Ford Taurus Fuel Pump
Part Number: DG1Z-9H307-N
$328.39 MSRP: $536.36
You Save: $207.97 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Fuel Pump, Fuel Pump Assembly
- Replaces: DG1Z-9H307-E, PFS-942
- Base No.: 9H307
- Item Weight: 4.20 Pounds
- Item Dimensions: 10.2 x 17.9 x 14.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: DG1Z-9H307-N
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2014 Ford Taurus Submodels:
- 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

2014 Ford Taurus Fuel Pump

At FordPartsGiant.com, you will find an extensive inventory of genuine 2014 Ford Taurus Fuel Pump offered at competitive prices online. These manufacturer-backed OEM 2014 Ford Taurus Fuel Pump ensure your satisfaction with their quality and come with a hassle-free return policy and expedited delivery service, guaranteeing a delightful shopping experience.

2014 Ford Taurus Fuel Pump Parts Questions & Experts Answers

Q:
How to remove and install the High pressure fuel pump in four cylinder engine on 2014 Ford Taurus?
Posted by Brust R.
A:
To remove the fuel pump, first relieve the fuel system pressure, then disconnect the cable from the negative battery terminal. Next, remove the air filter housing intake duct and disconnect the fuel injection pump electrical connector. Carefully remove the pump insulator from around the outside of the pump, taking care to spread the openings of the fuel injection pump noise insulator to minimize damage. Disconnect the quick disconnect line and remove the fuel line from the fuel pump, then loosen and remove the fuel lines using a flare nut wrench. Slide the heater hose clip forward and up to expose the fuel pump shield bolts, then remove the shield bolts and shield. Loosen the fuel pump mounting bolts evenly, one complete turn at a time, until the bolts and pump can be removed, ensuring to replace the bolts afterward. Discard the fuel pump O-ring. For installation, check the pump tappet in the pump body for wear or damage before installing a new O-ring on the pump and applying clean oil to both the pump tappet and the O-ring. Rotate the engine until the cam lobe for the fuel injection pump is at its lowest point, then set the pump in the housing and install the new bolts hand tight. Tighten the bolts in even stages, alternating between them, to the specified torque. The remainder of the installation follows the reverse order of removal.
Answered by Ford Parts Specialist John / May 16, 2026
