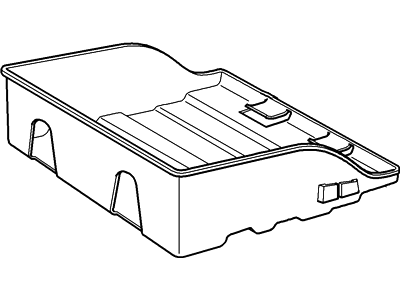

Mercury F6DZ-9D653-BA Reservoir Assembly

The EVAP system in 2002 and later models traps and stores fuel vapors from the fuel tank and intake manifold. It includes a charcoal canister and various lines. When the engine is off, vapors are stored in the canister, and when on, they're purged by a solenoid and used in combustion. Issues like poor idle, stalling, or fuel odor could indicate problems with the purge control solenoid, canister, or hoses. Visual checks for leaks and electrical connections are recommended, with further diagnosis and potential component replacement by a professional repair facility.

The Evaporative Emissions Control (EVAP) system is the system that is used to reduce the chance for fuel system emissions to evaporate and release unburned hydrocarbons into the atmosphere. During hot days, fumes in the fuel tank expand and when there is pressure build up, them is passed through the fuel vapor vent valve and the fuel vapor control valve to the EVAP canister where it is stored for some time until the engine can use it. The many elements of this system are installed underneath the vehicle; these are EVAP canister which is packed with activated charcoal, the check valve, dust separator and the canister vent solenoid. The fuel tank pressure sensor measures pressure inside the tank, and sends data to the PCM during leak tests. The fuel vapor vent valve regulates vapors that are to be admitted into the EVAP system while the fuel vapor control valve shuts off liquid fuel from entering the canister during fuelling. The canister vent solenoid is open most of the time and tests to seal the system and the EVAP check valve vents the air during refueling. The canister purge valve managed by the PCM controls the flow of the vapor into the intake manifold and its working is dependent on the manifold vacuum and the sensor. Some of the typical signs that indicate a defective-evaporative emission control system include foul smell of fuel, rough idle, and stalling, and in most cases, the hose connections and some of the components associated with the system are often checked for damages or leakage. To ensure that there is no increased fuel vapor pressure then the gas cap should be disconnected so that pressure can be heard to be escaping. Component replacement entails a step of disconnecting the battery and when replacing particular components, there is need to remove them and replace them with the right part and reconnection of the PCM for better performance.

The system utilizes its components to collect fuel vapors which evaporate from the fuel tank throttle body and intake manifold for storage in the charcoal canister until engine operation directs them for consumption in the combustion chamber. The early versions included a charcoal-filled canister and connecting lines and a canister purge valve yet modern OBD-II models implement electronic controls with a charcoal-filled canister and vapor management valve as well as fuel tank pressure sensor and fuel filler cap along with various vacuum lines. The fuel tank pressure sensor directs information to the PCM to control the purge control system through the vapor management valve which disperses the canister-stored vapors when the engine starts. The purpose of the vapor management system depends on its correct operation but problems like poor idle, stall conditions and driveability troubles may stem from a defective valve or damaged canister or unsecured vacuum connector. A thorough examination of all hoses must be done to check for damage such as breaks while the canister requires inspection for both damage and leaking. The fuel tank pressure level can be diagnosed accurately using a SCAN tool after removing the gas cap until pressure releases. To resolve higher than normal pressure levels the technician should examine blocking conditions in hoses while also testing the operation of the evaporative emission valve. The inspection should examine hoses located near the vapor management valve together with a check of the battery voltage at the valve connector. User must detach vacuum lines first and label them before component replacement of the canister by following step-by-step reverse installation sequence.

First of all, the Evaporative Emission Control System (EECS) captures fuel vapor from the fuel tank, throttle body, and intake manifold. It consists of a charcoal-filled canister connected to the fuel tank, a ported vacuum, and an intake manifold vacuum. When the engine is off, the system holds fuel vapors in the canister. During engine operation, a purge control solenoid is opened to release the fuel vapors into the combustion process. A faulty purge control solenoid, damaged canister or hose problems can result to issues like poor idle, stalling or driveability problem. If necessary, the technician checks if there are any cracks in the canister and replaces it accordingly.

Visual checks for leaks and good electrical connections should be done.
