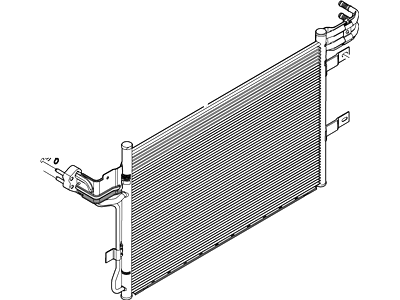

Mercury 8G1Z-19712-A Condenser Assembly

To remove the condenser: Remove the upper radiator grill and sight shield (if equipped). On 2007 and earlier models, unbolt the horn assembly and move it aside. On four-cylinder models, remove the radiator grille shutter. On V6 models, remove the radiator. On 2008 and later models, disconnect the transaxle cooler line clamps and disconnect the lines from the condenser core. Disconnect the refrigerant inlet and outlet pipes from the condenser, capping the lines to prevent contamination. Remove the bolt or nut securing the pipe fitting to the condenser. Remove the condenser. If reinstalling the original condenser, store it with the line fittings facing up to prevent oil from draining out.
