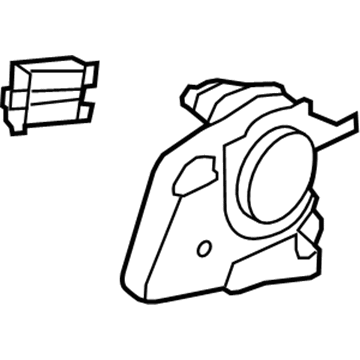

Ford 7T4Z-18C804-A Woofer

Remove the front door trim panel.Disconnect the electrical connector to the speaker.Depress the retaining tabs and remove the speaker from the door panel.Snap the speaker into the door trim panel; an audible click should be heard.The remainder of installation is the reverse of removal.

Open the floor console storage armrest, then use a plastic trim tool to disengage the retaining clips around the perimeter of the floor console/cup holder trim panel and remove the panel. Disconnect the electrical connectors to the shift console.Remove the left and right floor console upper side trim panels using a trim tool.Open the storage bin door, then use a trim tool to pry out the USB/media port trim and disconnect the electrical connectors from the media port panel.Remove the left and right floor console side trim panels using a trim tool.Remove the storage compartment fasteners. Lift the rear of the storage compartment up to disengage the rear clips, then slide the storage compartment away from the instrument panel to disengage the upper clips and remove the compartment assembly from the floor console. Disconnect any electrical connectors.Using a plastic trim tool, disengage the center speaker grille fasteners around the perimeter and remove the instrument panel center speaker.Remove the FCIM retaining screws at the bottom and sides of the FCIM. Using a plastic trim tool, start at the bottom of the panel and work your way around to the top, disengaging the retaining clips.Remove the FCIM from the instrument panel.If you're removing the FCIM from the trim panel, remove the mounting screws and separate the FCIM from the panel.
