Genuine Lincoln Mark VII Antenna
Radio Antenna- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
2 Antennas found

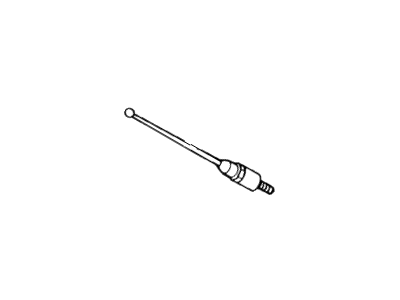

Lincoln Mark VII Antenna
The Lincoln Mark VII Antenna provides clear AM or FM reception, so drivers can enjoy music and news without dropouts while driving. The early Mark VII models had a tall manual Antenna made of thin steel that owners had to lower before parking in low garages. The Antenna was around forty-five inches long when extended. This matched signature Lincoln luxury. As time went on, Lincoln made use of a motor-driven external mast, which slips into the fender when the radio is turned off. This helped to trim wind noise and keep the unit from damage. The production of Mark VII vehicles later incorporated an integrated Antenna within the windshield. This fine conductive grid, which is hidden within the glass, means that there is no longer unsightly external hardware. This Antenna still feeds the receiver through a dash amplifier to ensure strong signal power. The Antenna assembly was a simple plug-in component that was connected to the cabin receiver via shielded wires to capture radio frequency waves regardless of style over the Mark VII years. The Lincoln retains its dignity and superiority with these progressive designs. Furthermore, each concept renders operation simple for regular drivers.
We provide a wide range of Lincoln Mark VII Antenna at the optimal prices. If you need Lincoln Mark VII Antenna, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.
Lincoln Mark VII Antenna Parts Questions & Experts Answers
- Q: How to test and replace the antenna on Lincoln Mark VII?A:To test antenna cables and mast on vehicles made before 1996, disconnect the cable from the radio, put your ohmmeter on it, and measure resistance; readings should be below five ohms. Your antenna is working when the reading shows it's correct. Look at the antenna cable and mast base when reading is wrong. First, measure the resistance between the antenna cable and the radio, then between the cable and the antenna. Resistance under five ohms on each connection is normal; replacing them if they don't measure correctly. Pull the antenna physically from the car to see if the measurement between the base and its center port is under five ohms; this means the antenna is working. Higher readings mean you need to replace it. Disconnect the cable from the negative battery first. Then to remove the front-mounted antenna, lower it down and take away the rear screws behind the right front fender to get to the antenna bolt below. Drop the antenna through the fender opening after removing the top nut from the stanchion and reinstall it by going backwards through this process. To reach the rear antenna, lift the car, then take out the lower antenna bolt after removing the trunk trim panel. Unscrew the antenna cap from the radio, undo the mounting screws, disconnect power connections, lift the antenna down into the trunk of the vehicle, while reversing these steps for correct installation. When the plastic antenna drive cable gets damaged or the mast becomes bent, you must replace both the cable and the mast which stays where it is attached to the motor. Take off the retaining nut. Gently pull the mast out of the motor until the drive cable has room to come off. Record how the drive teeth move as you pull. Detach the old mast with a hacksaw, slip the nut and tube away, insert the new cable into the motor drive, keep running the motor and holding the cable till 12 inches go inside, lower down the new tube and nut, secure the nut firmly, and verify operation by switching on and off the radio antenna a few times.
