What is the purpose of the Canister Purge Valve and Vapor Canister system and how to check and replace them on the Ford Thunderbird?

This system prevents hydrocarbons from polluting the atmosphere by storing fuel vapor from the tank. It includes a charcoal canister, purge control solenoid, connecting lines, fuel cap, and fuel injection system. Vapor from the tank is stored in a charcoal canister located near the front wheel well until the engine starts. The canister connects to a purge solenoid, which opens at engine start to draw vapor into the air cleaner. The canister and solenoid should be checked for damage or malfunction and replaced if necessary. To replace the canister, remove the mounting bolt, lower the canister, detach the hose, and remove the canister. For other components, use the VECI label schematic to locate and replace them. Installation is the reverse of removal.

Genuine Ford Thunderbird Canister Purge Valve

Vapor Canister Purge Valve EVAP

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Canister Purge Valves found

View related parts

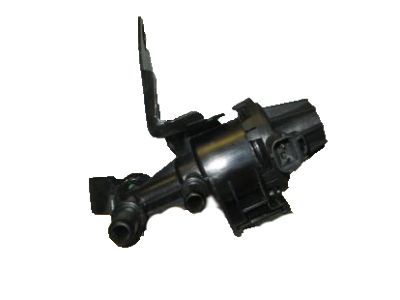

Ford Thunderbird Fuel Vapour Valve Assembly
Part Number: E7DZ-9B593-A
$21.18 MSRP: $32.91
You Save: $11.73 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assy - Fuel Vapour; Fuel Tank Vent Valve, Valve Assembly, Vapor Valve
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1980-1997 Ford Thunderbird | 4 Cyl 2.3L, 6 Cyl 3.3L, 6 Cyl 3.8L, 8 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.0L | 3AT C3, 3AT C4, 3AT C5, 4AT 4R70W, 4AT A4LD, 4AT AOD, 5MT
View related parts
Ford Thunderbird Valve Assembly
Part Number: 3W4Z-9C915-AA
$46.42 MSRP: $75.20
You Save: $28.78 (39%)
ADD TO CART
Product Specifications
- Other Name: Valve Assy
- Replaced by: 3U5Z-9C915-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Ford Thunderbird | 8 Cyl 3.9L DOHC EFI NA | 5-Speed Automatic Transmission 5R55S, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

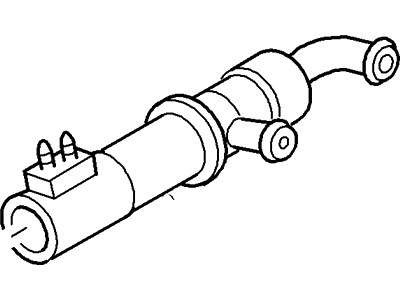

Ford Thunderbird Vapor Canister Purge Solenoid
Part Number: E6ZZ-9C915-A
$67.26 MSRP: $107.27
You Save: $40.01 (38%)
Product Specifications
- Other Name: Valve Assy; Solenoid Valve
- Replaces: FO2Z-9C915-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1991-1997 Ford Thunderbird | 6 Cyl 3.8L, 8 Cyl 4.6L | 4AT 4R70W, 4AT AOD, 5MT
View related parts
Ford Thunderbird Valve Assembly
Part Number: F57Z-14A606-BA
$40.60 MSRP: $58.33
You Save: $17.73 (31%)
Product Specifications
- Other Name: Valve Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1991-1997 Ford Thunderbird | 6 Cyl 3.8L, 8 Cyl 4.6L | 4AT 4R70W, 4AT AOD, 5MT
View related parts
Ford Thunderbird Solenoid Assembly
Part Number: XW4Z-9F945-AA
Product Specifications
- Other Name: Solenoid Assy; Solenoid, Vent Control Solenoid
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2005 Ford Thunderbird | 8 Cyl 3.9L DOHC EFI NA | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission NAAO 5R55N, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Ford Thunderbird Canister Purge Valve

The Ford Thunderbird Canister Purge Valve is designed to stop raw fuel vapor from escaping, instead feeding it back into the engine for clean combustion. Working with a charcoal canister filled with activated carbon, the Canister Purge Valve opens under intake vacuum so incoming air sweeps stored vapors into the air fuel mix where they burn. Early Ford models of the 1960s relied on vented caps with no purge control, but 1970s and later Thunderbird versions adopted the sealed EVAP layout with a simple vacuum operated Canister Purge Valve that opened whenever the motor ran. Modern Ford OBD II Thunderbirds add electronic control, letting the engine computer pulse the Canister Purge Valve along with a dedicated vent solenoid and tank pressure sensor to confirm the system holds vacuum, this upgrade allows onboard leak testing and quicker malfunction warnings through the check engine light. Despite these generational changes, every Ford Thunderbird still depends on the Canister Purge Valve for quick cycling to cut hydrocarbon emissions while preventing tank pressure damage.

We provide a wide range of Ford Thunderbird Canister Purge Valve at the optimal prices. If you need Ford Thunderbird Canister Purge Valve, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your doorstep with a fast delivery service.

Ford Thunderbird Canister Purge Valve Parts Questions & Experts Answers

Fuel Vapour Valve Assembly
E7DZ-9B593-A
Q: What is the purpose of the Canister Purge Valve and Vapor Canister system and how to check and replace them on the Ford Thunderbird?
A:
This system prevents hydrocarbons from polluting the atmosphere by storing fuel vapor from the tank. It includes a charcoal canister, purge control solenoid, connecting lines, fuel cap, and fuel injection system. Vapor from the tank is stored in a charcoal canister located near the front wheel well until the engine starts. The canister connects to a purge solenoid, which opens at engine start to draw vapor into the air cleaner. The canister and solenoid should be checked for damage or malfunction and replaced if necessary. To replace the canister, remove the mounting bolt, lower the canister, detach the hose, and remove the canister. For other components, use the VECI label schematic to locate and replace them. Installation is the reverse of removal.
