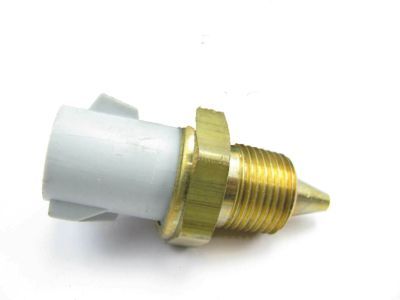

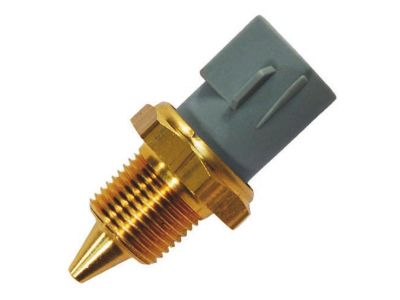

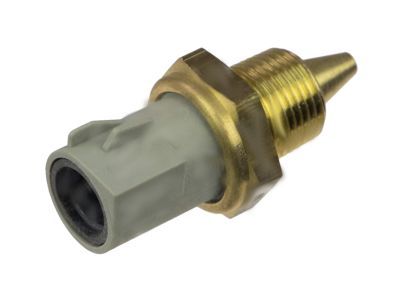

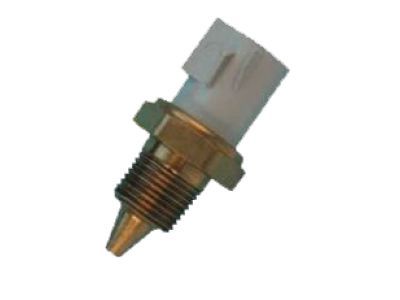

Ford E1AZ-12A648-A Sender Assembly

You can Select Your Vehicle to check if E1AZ-12A648-A fits your vehicle.

The coolant temperature indicator system is composed of a temperature gauge mounted in the instrument panel and a coolant temperature sending unit mounted on the engine. Some vehicles have more than one sending unit, but only one is used for the indicator system. If an overheating indication occurs, check the coolant level in the system and then make sure the wiring between the gauge and the sending unit is secure and all fuses are intact. When the engine is first started, the gauge should be in the Cold position and gradually move to the Normal range. With the engine off, disconnect the wire from the temperature sending unit. On the inline six-cylinder engine, the coolant temperature sending unit is located at the right rear corner of the engine block, just below the cylinder head. Switch on the ignition without starting the engine - the gauge pointer should be at the Cold mark. Using a jumper wire, ground the sending unit wire. The needle on the gauge should now be pointing to (or past) the Hot mark. Don't leave the jumper wire connected any longer than necessary. If the gauge doesn't perform as described, the problem may be in the gauge or wiring. If the gauge does perform as described, the sending unit is defective. Prepare the new sending unit by wrapping its threads with Teflon tape. Remove the radiator cap to relieve any residual pressure, then reinstall the cap. Unscrew the old sending unit and install the new one as quickly as possible to minimize coolant loss. Tighten the sending unit securely and attach the wire. Check the coolant level and add, if necessary, to bring it to the appropriate level.

The IAT sensor acts as a resistor changing value with air temperature. Test it by checking reference voltage and measuring resistance across the sensor terminals at different temperatures.

If an overheating indication occurs, the coolant level in the system should be checked. Additionally, the wiring between the light or gauge and the sending unit should be ensured secure, and all fuses should be intact.

The coolant temperature indicator system is composed of a temperature gauge mounted in the instrument panel and a coolant temperature sending unit mounted on the engine. Some vehicles have more than one sending unit, but only one is used for the indicator system. If an overheating indication occurs, check the coolant level in the system and then make sure the wiring between the gauge and the sending unit is secure and all fuses are intact. When the engine is first started, the gauge should be in the Cold position and gradually move to the Normal range. With the engine off, disconnect the wire from the temperature sending unit. On the inline six-cylinder engine, the coolant temperature sending unit is located at the right rear corner of the engine block, just below the cylinder head. Switch on the ignition without starting the engine - the gauge pointer should be at the Cold mark. Using a jumper wire, ground the sending unit wire. The needle on the gauge should now be pointing to (or past) the Hot mark. Don't leave the jumper wire connected any longer than necessary. If the gauge doesn't perform as described, the problem may be in the gauge or wiring. If the gauge does perform as described, the sending unit is defective. Prepare the new sending unit by wrapping its threads with Teflon tape. Remove the radiator cap to relieve any residual pressure, then reinstall the cap. Unscrew the old sending unit and install the new one as quickly as possible to minimize coolant loss. Tighten the sending unit securely and attach the wire. Check the coolant level and add, if necessary, to bring it to the appropriate level.

The KS detects engine detonation. Test it by checking reference voltage, simulating operating conditions, and observing timing response.

The engine coolant temperature sensor is a thermistor that varies its voltage output based on temperature changes. Resistance values decrease as the sensor temperature increases and vice versa. Failure in the coolant sensor circuit triggers codes 21, 51, or 61 (two-digit) or 116, 117, 118 (three-digit). Resistance values should be checked while cold (58,750 to 40,500 ohms) and at operating temperature (3,600 to 1,840 ohms). Signal voltage to the sensor from the PCM should be around 5.0 volts. During replacement, wait for the engine to cool, use Teflon tape on threads, and handle the sensor with care.The Manifold Absolute Pressure (MAP) sensor monitors intake manifold pressure changes, converting them into a voltage output. A failure triggers codes 22 or 72 (two-digit) or 126, 128, 129 (three-digit). Check reference voltage (4.0 to 6.0 volts), backprobe the MAP/BP Signal wire, and apply vacuum to observe tachometer readings. Incorrect results indicate MAP sensor replacement.Oxygen sensors monitor exhaust oxygen content, adjusting air/fuel mixture. Check for a steady signal voltage between 0.35 and 0.55 volts at normal operating temperature. Codes 41, 42, 91, 92 (two-digit) or 136, 137, 139, 144, 171-178 (three-digit) indicate issues. Ensure the oxygen sensor heater receives battery voltage. Special care during service is essential.The Throttle Position Sensor (TPS) monitors throttle angle. Check for proper signal voltage (0.50 to 1.0 volts at idle, 4.0 to 5.0 volts at full throttle) and reference voltage (approximately 5.0 volts). Check potentiometer resistance (0.8 to 1.0 K ohms at closed throttle, 3.0 to 4.0 K ohms at full throttle). Replace if readings are incorrect.The Mass Air Flow (MAF) sensor, for 4.6L engines, measures air entering the engine. Check for power, signal voltage (0.2 to 1.5 volts at idle, increasing to about 2.0 volts at 60 mph), and use an ohmmeter for resistance checks. Replacement involves disconnecting the electrical connector, removing the air cleaner assembly, and uninstalling the MAF sensor.The Manual Lever Position (MLP) sensor, now Transmission Range (TR) sensor, indicates transmission gear. Check terminal connectors for attachment, verify power, and adjust if necessary. Diagnostics require special tools.The air conditioning clutch control involves PCM control of the compressor clutch. If the air conditioning does not function, check relays and switches. To test, remove the relay and bridge the battery feed and compressor clutch terminals. The Vehicle Speed Sensor (VSS) monitors speed, usually setting Code 24 if faulty. Check for signal voltage (10 volts or more). Replacement involves disconnecting the electrical connector, removing the retaining bolt, and lifting the VSS from the transmission. The Intake Manifold Temperature Sensor measures air temperature entering the engine. Check for correct reference voltage (5 volts) and resistance changes with temperature. Code 54 indicates issues.The power steering pressure switch affects idle quality. Problems may set Code 52. Check for open or closed circuits affecting engine timing.The crankshaft position sensor defines engine position for the PCM, and any issues require professional diagnosis. Replacement involves removing the electrical connector and retaining bolt.The camshaft position sensor is triggered by the camshaft sprocket's high point. Diagnostic work should be done by professionals.The Brake Light Switch informs the PCM when brakes are applied. Ensure proper voltage and continuity, and replace if needed. Brake light circuit and bulb conditions can impact idle quality.

The coolant temperature indicator system consists of a light or temperature gauge on the dashboard and a coolant temperature sending unit on the engine. It is important to check the coolant level and ensure the wiring and fuses are intact if an overheating indication occurs. When the ignition switch is turned on and the starter motor is turning, the indicator light should glow. If the light is not on, it may be due to a burned-out bulb, faulty ignition switch, or open circuit. Testing the circuit by grounding the wire to the sending unit can help determine the issue. Once the engine starts, the light should go out unless the engine overheats. Failure of the light to go out may be caused by a grounded wire, defective sending unit, or faulty ignition switch. It is also important to check the coolant type and mixture. If the sending unit needs to be replaced, disconnect the electrical connector and unscrew the sensor from the engine. Take caution not to crack the fragile unit and use sealant on the threads. Ensure the engine is cool before removing the defective sending unit and be prepared for coolant loss. Finally, check the coolant level after installing the replacement unit.

The MLP sensor, now called the Transmission Range (TR) sensor, indicates transmission gear.

The coolant temperature indicator system consists of a light or temperature gauge mounted in the dash and a coolant temperature sending unit mounted on the engine.

The coolant temperature indicator system consists of a light or temperature gauge on the dashboard and a coolant temperature sending unit on the engine. It is important to check the coolant level and ensure the wiring and fuses are intact if an overheating indication occurs. When the ignition switch is turned on and the starter motor is turning, the indicator light should glow. If the light is not on, it may be due to a burned-out bulb, faulty ignition switch, or open circuit. Testing the circuit by grounding the wire to the sending unit can help determine the issue. Once the engine starts, the light should go out unless the engine overheats. Failure of the light to go out may be caused by a grounded wire, defective sending unit, or faulty ignition switch. It is also important to check the coolant type and mixture. If the sending unit needs to be replaced, disconnect the electrical connector and unscrew the sensor from the engine. Take caution not to crack the fragile unit and use sealant on the threads. Ensure the engine is cool before removing the defective sending unit and be prepared for coolant loss. Finally, check the coolant level after installing the replacement unit.

This process pertains to standard analog instruments. Begin by examining the fuses if the coolant temperature gauge or light doesn't function. For an excessively high temperature indication, consider troubleshooting procedures. If the temperature gauge or light signals "Hot" soon after the engine starts, disconnect the wire at the coolant temperature sensor. Replace the sending unit if the gauge reading falls or the light turns off. High readings might indicate a shorted wire or a malfunctioning gauge. If the coolant temperature gauge doesn't register post engine warming, turn off the engine and disconnect the wire at the sending unit. Use a jumper wire to connect it to a clean engine ground. If the gauge now displays "Hot", replace the sending unit. If the gauge remains unresponsive, an open circuit or a defective gauge might be the cause. For replacement, initiate by removing the radiator cap to relieve pressure. Disconnect the electrical connector from the sending unit, and wrap Teflon tape around the threads of the new sending unit. Swiftly replace the old sending unit with the new one to avoid coolant loss. Securely tighten the sending unit and reconnect the wiring harness. Refill the cooling system and monitor for leaks and accurate gauge operation.

This process pertains to standard analog instruments. Begin by examining the fuses if the coolant temperature gauge or light doesn't function. For an excessively high temperature indication, consider troubleshooting procedures. If the temperature gauge or light signals "Hot" soon after the engine starts, disconnect the wire at the coolant temperature sensor. Replace the sending unit if the gauge reading falls or the light turns off. High readings might indicate a shorted wire or a malfunctioning gauge. If the coolant temperature gauge doesn't register post engine warming, turn off the engine and disconnect the wire at the sending unit. Use a jumper wire to connect it to a clean engine ground. If the gauge now displays "Hot", replace the sending unit. If the gauge remains unresponsive, an open circuit or a defective gauge might be the cause. For replacement, initiate by removing the radiator cap to relieve pressure. Disconnect the electrical connector from the sending unit, and wrap Teflon tape around the threads of the new sending unit. Swiftly replace the old sending unit with the new one to avoid coolant loss. Securely tighten the sending unit and reconnect the wiring harness. Refill the cooling system and monitor for leaks and accurate gauge operation.
